Cylinder Function Control Valve, Hood, Topper and Elevator, Secondary (220028 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F433465	2	Seal Kit	-
1	AH205583	2	Check Valve	-
2	T279144	1	Orifice	Topper Raise and Lower Orifice O161
3	RE580931	3	Retainer	-
4	N304196	2	Plug	-
5	CXT26305	1	Solenoid Hydraulic Valve	Topper Lower Y79
5	AXE46715	1	Seal Kit	-
6	CXT24359	1	Pressure Relief Valve	Topper Boom Relief Valve V007
6	AT224864	1	Seal Kit	-
7	CXT24358	1	Pressure Relief Valve	Main Pressure Relief Valve V009
7	AT224864	1	Seal Kit	-
8	CXT18472	1	Pressure Relief Valve	Primary Hood Rotate Pressure Relief Valve V008
8	AN279605	1	Seal Kit	-
9	CXT16132	1	Pressure Relief Valve	Elevator Pressure Reduction Valve V212
9	AT196943	1	Seal Kit	-
10	CXT16131	1	Flow Control Hyd. Valve	Elevator Valve Assembly Flow Reduction Valve V169
10	AH209117	1	Seal Kit	-
11	AXT10358	1	Flow Control Hyd. Valve	Primary Extractor Hood Rotate Flow Reduction Valve V168
11	AH209117	1	Seal Kit	-
12	AT333862	1	Solenoid Valve Coil	-
13	AT333812	6	Solenoid Valve Coil	-
14	AN375052	1	Flow Control Hyd. Valve	Elevator Swing Flow Reduction Valve V167
14	AH209117	1	Seal Kit	-
15	AN372198	1	Valve	Topper Raise Y78
15	AH209121	1	Seal Kit	-
16	AN221523	2	Spool Valve	Elevator Swing Solenoid Valve Y18 – Y19
16	F433465	2	Seal Kit	-
17	AN221447	1	Spool Valve	PCP Unloading Solenoid Y5
17	AT224864	1	Seal Kit	-
18	A73182	6	Pipe Plug	-
19	AXT19212	1	Control Valve	-

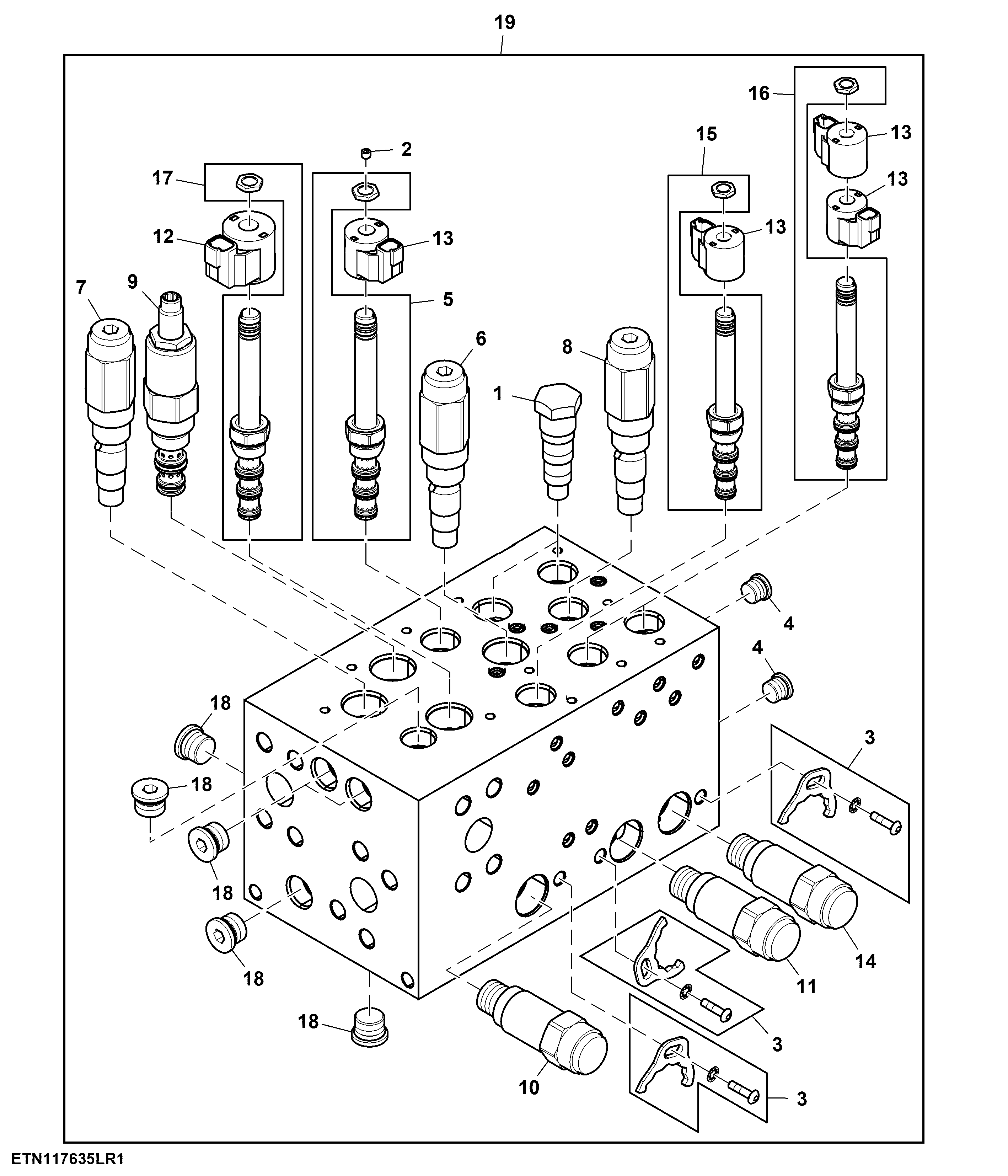

Cylinder Function Control Valve, Hood, Topper and Elevator, Secondary (220028 - )
