Cylinder Function Control Valve, Hood, Topper and Elevator, Secondary ( - 220027)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXT17303	1	Control Valve	-
2	CXT24358	1	Pressure Relief Valve	Main Pressure Relief Valve V009
2	AT224864	1	Seal Kit	-
3	CXT24359	1	Pressure Relief Valve	Topper Boom Relief Valve V007
3	AT224864	1	Seal Kit	-
4	AN221523	2	Spool Valve	Elevator Swing Solenoid Valve Y18 – Y19
4	F433465	1	Seal Kit	-
5	AN372198	1	Valve	Topper Raise Y78
5	AH209121	1	Seal Kit	-
6	CXT26305	1	Solenoid Hydraulic Valve	Topper Lower Y79
6	AXE46715	1	Seal Kit	-
7	AN221447	1	Spool Valve	PCP Unloading Solenoid Y5
7	AT224864	1	Seal Kit	-
8	AT333812	6	Solenoid Valve Coil	-
9	AT333862	1	Solenoid Valve Coil	-
10	AN375052	1	Flow Control Hyd. Valve	Elevator Swing Flow Reduction Valve V167
10	AH209117	1	Seal Kit	-
11	AXT10358	1	Flow Control Hyd. Valve	Primary Extractor Hood Rotate Flow Reduction Valve V168
11	AH209117	1	Seal Kit	-
12	CXT16131	1	Flow Control Hyd. Valve	Elevator Valve Assembly Flow Reduction Valve V169
12	AH209117	1	Seal Kit	-
13	AXE73736	2	Check Valve	Primary Extractor Hood Rotate Check Valve D119
13	AXE73737	2	Seal Kit	-
14	CXT16132	1	Pressure Relief Valve	Elevator Pressure Reduction Valve V212
14	AT196943	1	Seal Kit	-
15	CXT18472	1	Pressure Relief Valve	Primary Hood Rotate Pressure Relief Valve V008
15	AT196943	1	Seal Kit	-
16	T279144	1	Orifice	Topper Raise and Lower Orifice O161
17	A73182	4	Pipe Plug	-

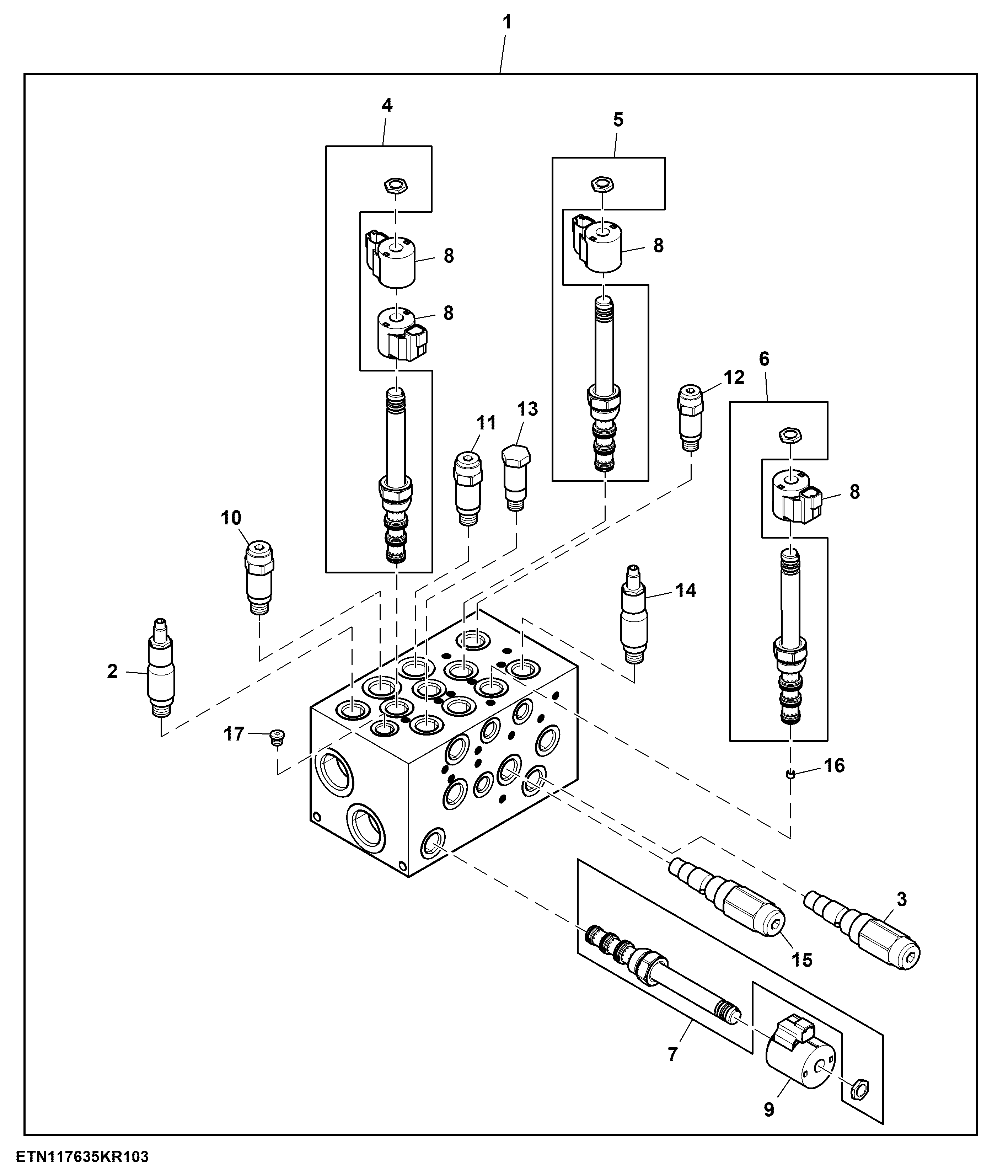

Cylinder Function Control Valve, Hood, Topper and Elevator, Secondary ( - 220027)

Нет текстового описания
