Открытый узел

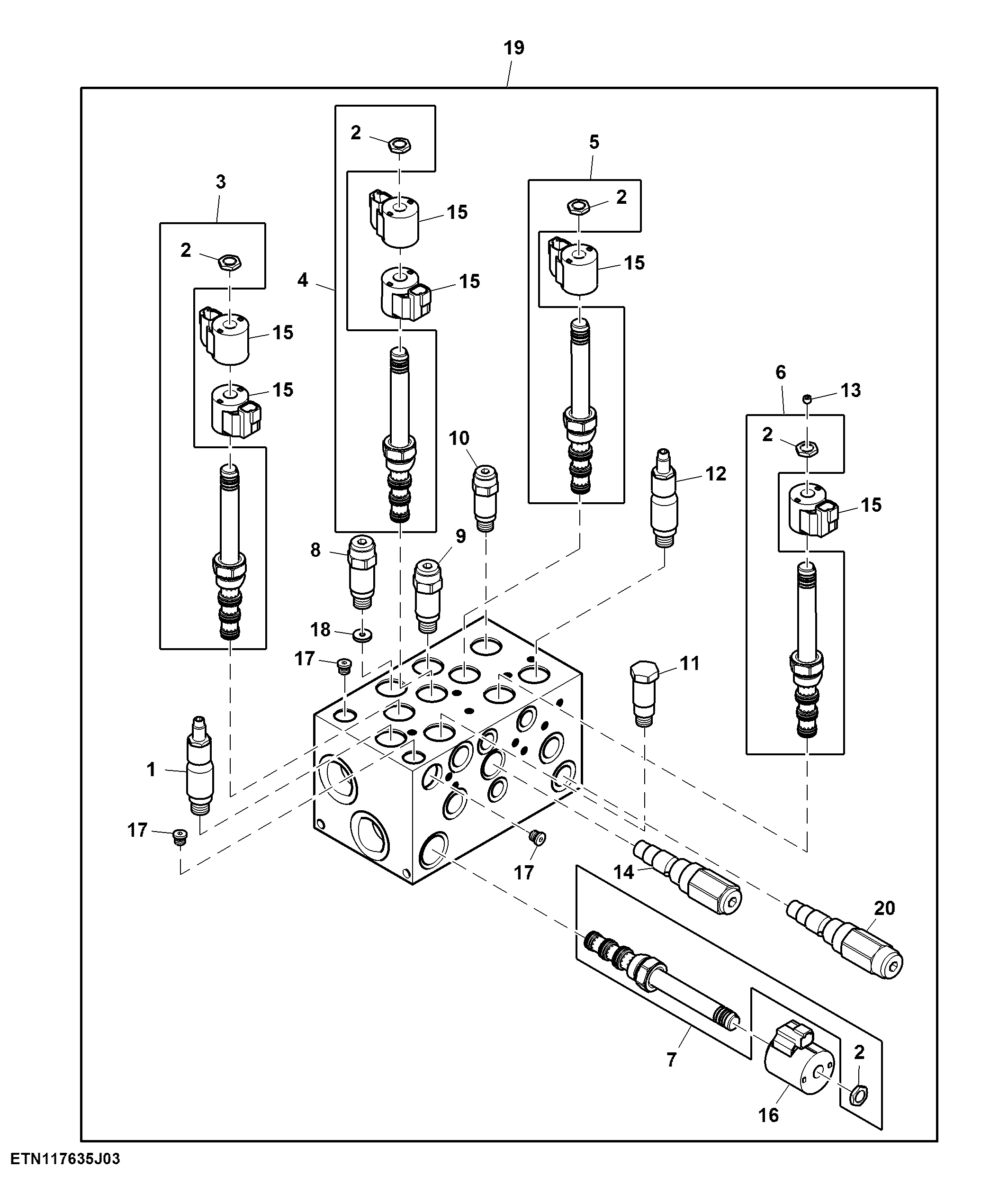

Cylinder Function Control Valve, Hood, Topper and Elevator, Secondary ( - 181124)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CXT24358	1	Pressure Relief Valve	Main Pressure Relief Valve USE WITH AXT15281
1	AN374637	1	Pressure Relief Valve	Main Pressure Relief Valve V009, USE WITH AXT11340
1	AT224864	2	Seal Kit	-
2	N223292	1	Nut	-
3	AN221523	1	Spool Valve	Elevator Swing Solenoid Y18–Y19
3	F433465	1	Seal Kit	-
4	TCA18261	1	Solenoid Valve	Primary Hood Swing Solenoid Y40–Y41
4	F433465	3	Seal Kit	-
5	AN372198	1	Valve	Topper Up Solenoid Y78
5	AH209121	1	Seal Kit	-
6	AT224862	1	Seal Kit	USE WITH AN374638
6	AXE46715	1	Seal Kit	USE WITH CXT26305
6	CXT26305	1	Solenoid Hydraulic Valve	Topper Down Solenoid USE WITH AXT15281
6	AN374638	1	Valve	Topper Down Solenoid Y79,USE WITH AXT11341
7	AN221447	1	Spool Valve	Pressure Compensator Pump Unload Solenoid Y5
7	AT224864	1	Seal Kit	-
8	AN375052	1	Flow Control Hyd. Valve	Elevator Swing Flow Reduction Valve V167
8	AH209117	1	Seal Kit	-
8	AT324914	1	Seal Kit	-
9	AXT10358	1	Flow Control Hyd. Valve	Primary Extractor Hood Rotate Flow Reduction Valve V168
9	AH209117	1	Seal Kit	-
10	CXT16131	1	Flow Control Hyd. Valve	Elevator Flow Reduction Valve V169
10	AH209117	1	Seal Kit	-
11	AH205583	1	Check Valve	Pilot Operated Check Valve D119,USE WITH AXT15281
11	F433465	1	Seal Kit	USE WITH AH205583
11	AXE73736	1	Check Valve	USE WITH AXT17303
11	AXE73737	2	Seal Kit	USE WITH AXE73736
12	CXT16132	1	Pressure Relief Valve	Elevator Pressure Reduction Valve V212
13	T279144	1	Orifice	Topper Lower and Raise Orifice O161
14	CXT18472	1	Pressure Relief Valve	Primary Hood Rotate Pressure Relief Valve V008,SUB FOR CXT16133
15	AT333812	6	Solenoid Valve Coil	-
16	AT333862	1	Solenoid Valve Coil	-
17	A73182	3	Pipe Plug	-
18	N382737	1	Aperture	-
19	AXT14147	1	Control Valve	ORDER AXT11340
19	AXT11340	1	Control Valve	-
19	AXT17303	1	Control Valve	SUB FOR AXT15281
19	AT196943	2	Seal Kit	-
20	CXT24359	1	Pressure Relief Valve	USE WITH AXT15281

Cylinder Function Control Valve, Hood, Topper and Elevator, Secondary ( - 181124)
