Rear Frame and Primary Extractor Jumper Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11505224	1	Wiring Harness	Rear Frame harness
2	57M8617	1	Elec. Connector Housing	Mainframe Harness
2	57M7771	5	Elec. Connector Terminal	-
2	R78069	10	Elec. Connector Cavity Plug	-
2	57M8430	1	Elec. Connector Terminal	-
2	57M9526	1	Elec. Connector Terminal	-
2	57M7546	8	Elec. Connector Terminal	-
2	57M8593	1	Elec. Connector Terminal	-
2	N282070	2	Elec. Connector Terminal	-
3	57M7535	1	Elec. Connector Terminal	Elevator Harness
3	57M9526	1	Elec. Connector Terminal	-
3	N282070	1	Elec. Connector Terminal	-
3	R78069	2	Elec. Connector Cavity Plug	-
4	RE12362	1	Electrical Connector Assy	Primary Extractor Jumper Harness
4	R78060	1	Elec. Connector Terminal	-
4	57M9218	1	Elec. Connector Seal	-
4	R78052	1	Electrical Connector Assy	-
4	R78064	1	Elec. Connector Cavity Plug	-
5	RE12363	1	Electrical Connector Assy	Primary Extractor Jumper Harness
5	57M9218	2	Elec. Connector Seal	-
5	57M10924	2	Elec. Connector Terminal	-
6	57M9918	1	Elec. Connector Housing	Motor Speed Sensor RH
6	57M8429	4	Elec. Connector Terminal	-
7	RE12363	1	Electrical Connector Assy	License Light Jumper Harness
7	R78060	2	Elec. Connector Terminal	-
7	57M9218	2	Elec. Connector Seal	-
8	57M7630	1	Electrical Connector Assy	Rear Light RH
8	N282070	5	Elec. Connector Terminal	-
8	R78069	1	Elec. Connector Cavity Plug	-
9	57M9218	2	Elec. Connector Seal	-
9	R78058	2	Elec. Connector Terminal	-
9	R78053	1	Electrical Connector Assy	Reverse Light
10	AXT10147	1	Wiring Harness	Primary Extractor Jumper Wiring Harness
11	R78053	1	Electrical Connector Assy	Rear Frame Harness
11	R78058	2	Elec. Connector Terminal	-
11	57M9219	2	Elec. Connector Seal	-
12	R78052	1	Electrical Connector Assy	Rear Frame Harness
12	R78058	1	Elec. Connector Terminal	-
12	57M9219	1	Elec. Connector Seal	-
13	RE12364	1	Electrical Connector Assy	Primary Extractor Speed Sensor
13	R78057	3	Elec. Connector Terminal	-
13	57M9219	3	Elec. Connector Seal	-
14	H224072	8	Clamp	-
15	CXT10477	1	Mounting Parts	-
16	CXT10537	1	Mounting Parts	-
17	24M7055	10	Washer	8.400 X 16 X 1.600 mm
18	14M7707	2	Lock Nut	M8
19	19M7372	4	Cap Screw	M5 X 16
20	H224073	8	Tie Band	-
21	N207951	4	Lock Nut	-
22	19M8063	8	Screw	M8 X 25
23	R78053	1	Electrical Connector Assy	-
23	R78064	2	Elec. Connector Cavity Plug	-
24	19M7867	2	Screw	M8 X 25
25	AZ101663	2	Travel Warning Alarm	Reverse Alarm
26	CB11495584	1	Sensor Wiring Harness	Ground Speed Sensor Harness
27	57M9076	1	Elec. Connector Housing	-
28	RE12363	1	Electrical Connector Assy	-
29	19M7163	2	Cap Screw	M8 X 25
30	14M7298	2	Flange Nut	M8

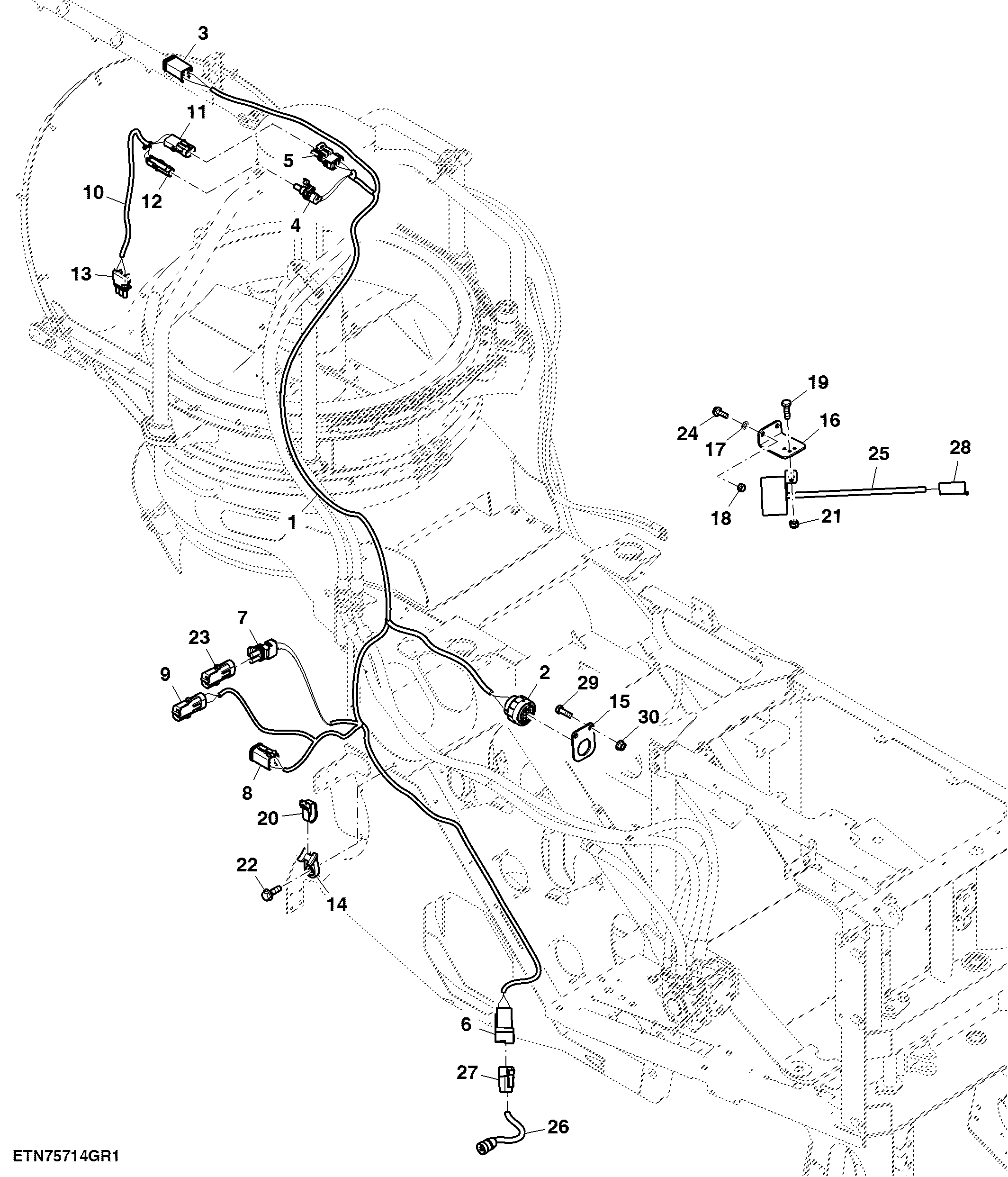

Rear Frame and Primary Extractor Jumper Wiring Harness
