Открытый узел

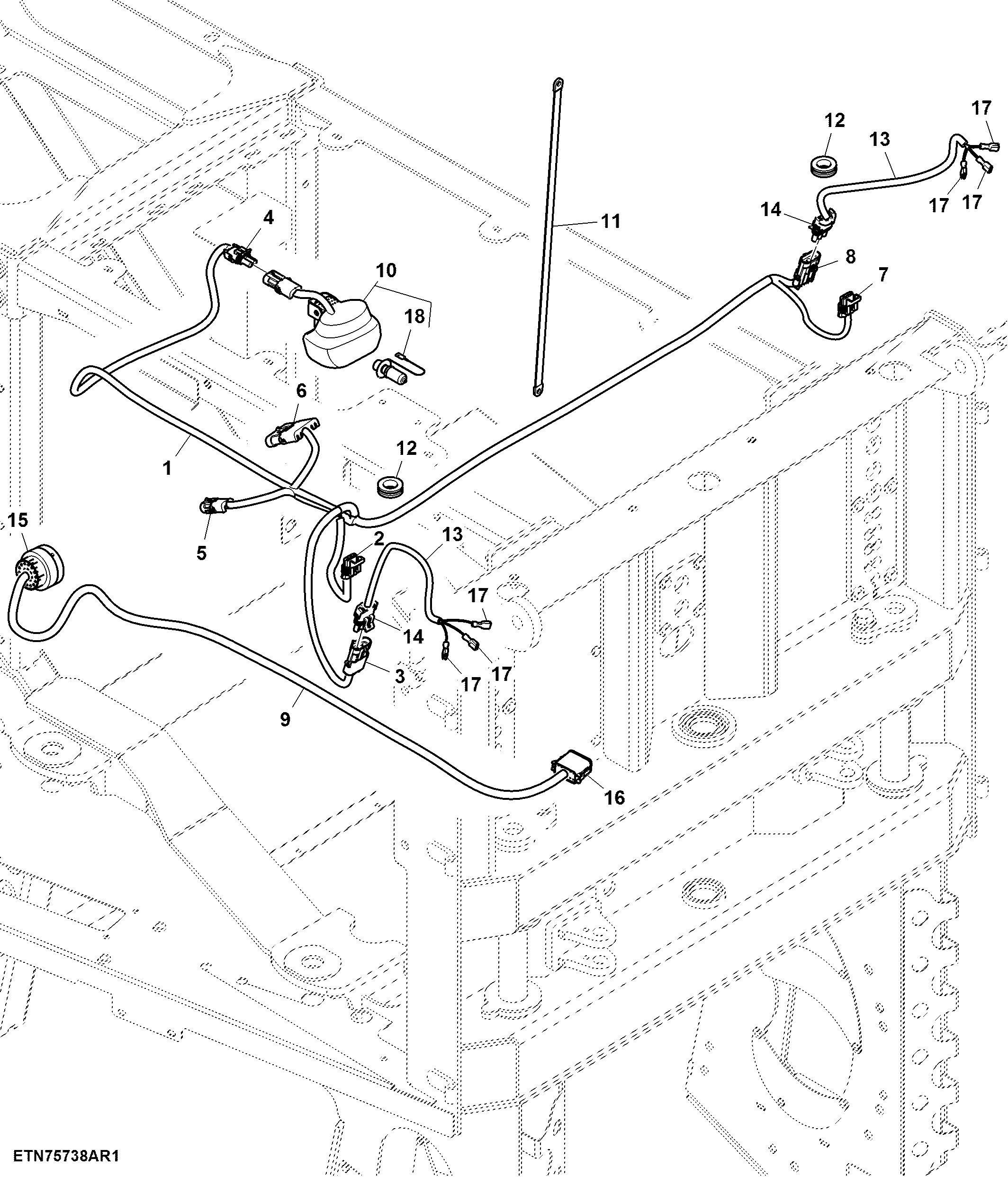

Wiring Harness, Turn Signal, Steering Column Extension

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11505221	1	Wiring Harness	Turn Signal Harness
2	57M7255	1	Elec. Connector Housing	Lower Road Light RH
3	R78054	1	Electrical Connector Assy	Head Light Harness RH
3	R78061	3	Elec. Connector Terminal	-
3	57M9216	3	Elec. Connector Seal	-
4	57M9217	2	Elec. Connector Seal	-
4	57M9217	2	Elec. Connector Seal	-
4	57M7882	2	Elec. Connector Terminal	-
4	57M7883	2	Elec. Connector Terminal	-
4	RE12363	1	Electrical Connector Assy	Engine Work Light
5	R78053	1	Electrical Connector Assy	Mainframe Harness
6	R78056	1	Electrical Connector Assy	Mainframe Harness
6	R78061	5	Elec. Connector Terminal	-
6	57M7882	1	Elec. Connector Terminal	-
6	57M9216	5	Elec. Connector Seal	-
6	57M9217	1	Elec. Connector Seal	-
7	57M7259	1	Elec. Connector Seal	-
7	57M7259	1	Elec. Connector Seal	-
7	57M7258	2	Elec. Connector Seal	-
7	R104846	2	Elec. Connector Terminal	-
7	R104846	2	Elec. Connector Terminal	-
7	57M7255	1	Elec. Connector Housing	Lower Road Light LH
7	57M7258	2	Elec. Connector Seal	-
8	R78054	1	Electrical Connector Assy	Head Light Harness LH
8	R78061	3	Elec. Connector Terminal	-
8	57M9216	3	Elec. Connector Seal	-
9	CB11505231	1	Wiring Harness	Steering Column Extension harness
10	CB01441985	1	Bulb	Engine Work Light
11	AH165023	1	Ground Cable	-
12	H96823	2	Grommet	-
13	AXT10150	2	Wiring Harness	Front Turn Signal Harness
14	RE12364	1	Electrical Connector Assy	Turn Signal Harness
14	57M9216	3	Elec. Connector Seal	-
14	R78060	3	Elec. Connector Terminal	-
15	57M7749	1	Electrical Connector Assy	Load Center Harness
15	N282070	5	Elec. Connector Terminal	-
15	57M7546	3	Elec. Connector Terminal	-
15	R78069	15	Elec. Connector Cavity Plug	-
16	57M7634	1	Electrical Connector Assy	Steering Column Harness
16	N282070	5	Elec. Connector Terminal	-
16	57M7546	3	Elec. Connector Terminal	-
16	R78069	4	Elec. Connector Cavity Plug	-
17	57M9531	6	Elec. Connector Terminal	-
18	AT130104	1	Bulb	-

Wiring Harness, Turn Signal, Steering Column Extension

Нет текстового описания
