Открытый узел

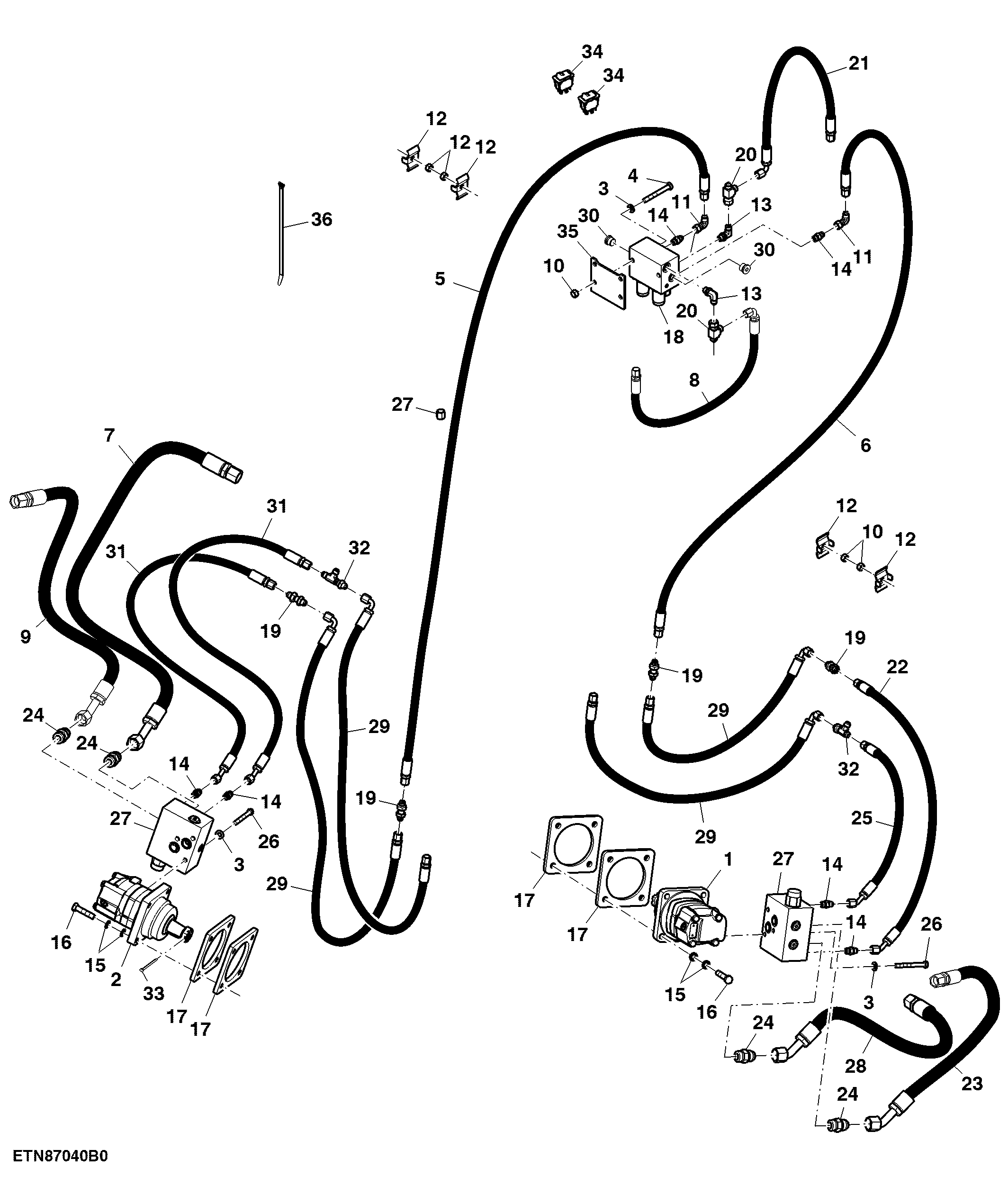

Motor and Lines, Crop Divider Side Knife

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11505999	1	Hydraulic Motor	-
2	CB11515853	1	Hydraulic Motor	-
3	24M7239	8	Washer	10.700 X 21 X 2.500 mm
4	19M8197	2	Cap Screw	M10 X 85
5	CB11514970	1	Hydraulic Hose	LGTH = 3090 mm
6	CB11514904	1	Hydraulic Hose	LGTH = 2245 mm
7	CB11514916	1	Hydraulic Hose	LGTH = 600 mm
8	CB11515099	1	Hydraulic Hose	LGTH = 660 mm
9	AXT10681	1	Hydraulic Hose	LGTH = 1370 mm
10	14M7274	8	Nut	M10
11	AE24616	2	Elbow Fitting	-
12	T159954	4	Clamp	-
13	X6C5OX-S	2	Elbow Fitting	-
14	R27212	6	Fitting	-
15	24M7044	16	Washer	13 X 20 X 2 mm
16	19M7361	8	Cap Screw	M12 X 50
17	CXT11311	4	Plate	-
18	CB11518262	1	Valve	-
19	X6WTX-WLN-S	4	Union Fitting	-
20	AT36921	3	Tee Fitting	-
21	AXT10723	1	Hydraulic Hose	LGTH = 550 mm
22	AXT10728	1	Hydraulic Hose	LGTH = 690 mm
23	AXT10694	1	Hydraulic Hose	LGTH = 1170 mm
24	R27267	4	Fitting	-
25	AXT10738	1	Hydraulic Hose	LGTH = 610 mm
26	19H2855	6	Cap Screw	3/8" X 3-1/4"
27	AXT10654	2	Control Valve	-
28	AXT10695	1	Hydraulic Hose	LGTH = 675 mm
29	AXT10697	4	Hydraulic Hose	LGTH = 1755 mm
30	AT49216	2	Fitting Plug	-
31	AXT10729	3	Hydraulic Hose	LGTH = 600 mm
32	PMH1318	2	Tee Fitting	-
33	11M7092	2	Cotter Pin	3.200 X 40 mm
34	0361350751	2	Toggle/Rocker Switch	240 V
35	CXT11978	1	Plate	-
36	H224073	5	Tie Band	-

Motor and Lines, Crop Divider Side Knife

Нет текстового описания
