8454 Engine Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

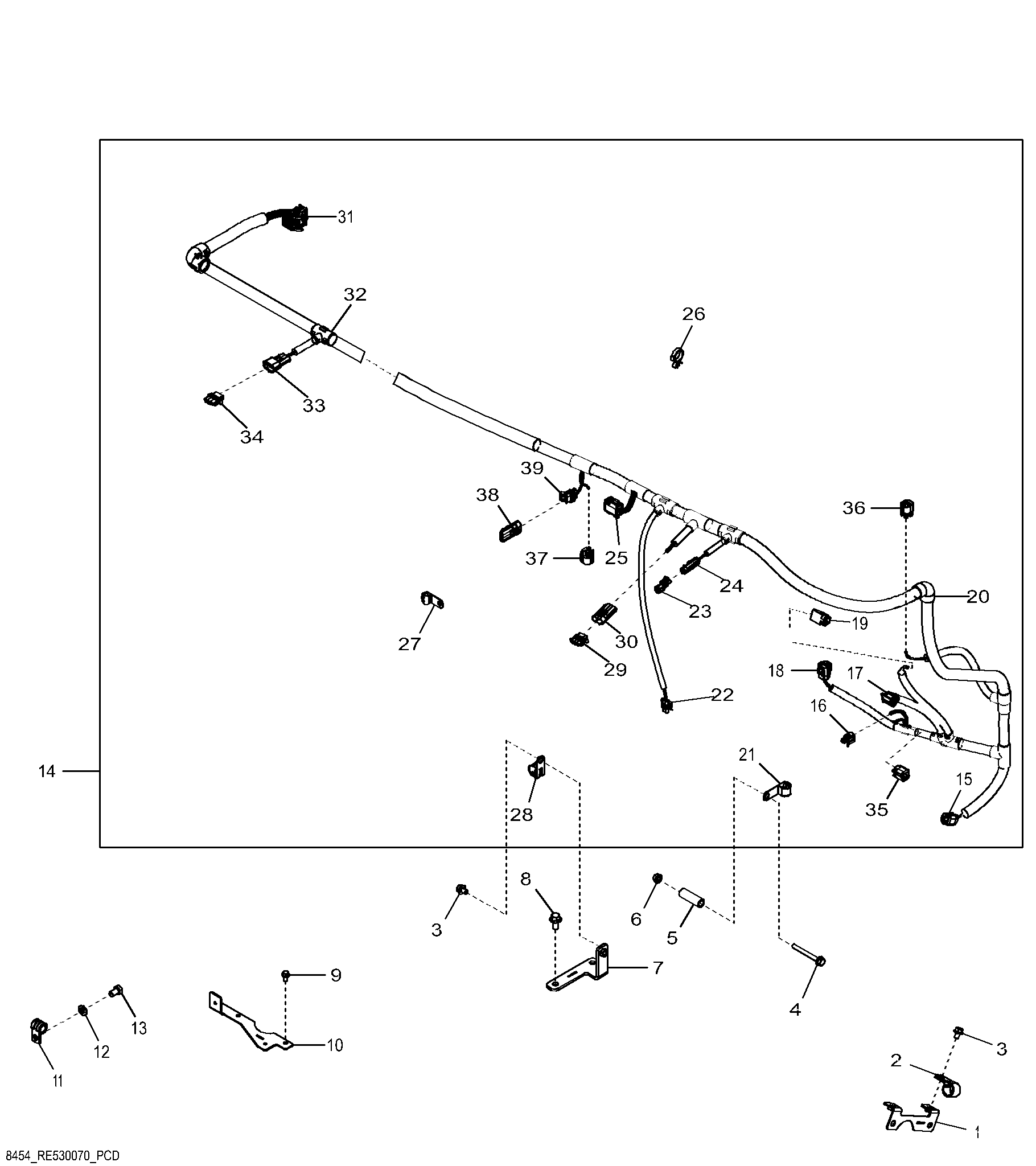

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE530429	1	Bracket	-
2	T115715	2	Clamp	-
3	RE524730	3	Cap Screw	-
4	19M7803	1	Screw	M8 X 70
5	28H3402	1	Spacer	0.493" X 0.675" X 2", Bushing SUB FOR 28H1532
6	14M7298	1	Flange Nut	M8
7	RE530435	1	Bracket	-
8	19M7784	2	Screw	M10 X 20
9	RE527858	2	Screw	With Pre Applied Sealant
10	R523701	1	Bracket	-
11	T75197	1	Clamp	-
12	24M7028	1	Washer	10.500 X 20 X 2 mm
13	19M7557	1	Cap Screw	M10 X 16
14	RE530424	1	Wiring Harness	12 V
15	57M8601	1	Elec. Connector Housing	Engine Crank Sensor
15	57M8633	1	Elec. Connector Accessory	-
15	57M8560	2	Elec. Connector Terminal	-
15	57M8566	2	Elec. Connector Seal	-
16	57M9005	1	Elec. Connector Housing	Oil Pressure
16	R104701	3	Elec. Connector Terminal	-
17	57M8400	1	Electrical Connector Assy	Fuel Temperature
17	57M8559	2	Elec. Connector Terminal	-
17	57M8568	2	Elec. Connector Seal	-
18	57M13604	1	Elec. Connector Housing	Rail Pressure Sensor
18	57M8568	3	Elec. Connector Seal	-
18	57M8417	1	Elec.Connect Locking Device	-
18	57M8135	3	Elec. Connector Terminal	-
19	57M8403	1	Elec. Connector Housing	PCV 1
19	57M8404	2	Elec. Connector Terminal	-
19	57M8406	2	Elec. Connector Terminal	-
20	57M9318	1	Elbow Fitting	-
21	57M9590	1	Clamp	-
22	57M7493	2	Elec. Connector Seal	-
22	57M7494	2	Elec. Connector Terminal	-
22	57M7289	1	Elec.Connect Locking Device	-
22	57M7254	1	Elec. Connector Housing	Water in Fuel
23	RE12362	1	Electrical Connector Assy	Alternator Excitation Dust Cap
23	R78064	1	Elec. Connector Cavity Plug	-
24	R78052	1	Electrical Connector Assy	Alternator Excitation
24	R78061	1	Elec. Connector Terminal	-
24	R78059	1	Elec. Connector Seal	-
25	57M8746	1	Elec. Connector Housing	Fuel Injection
25	57M8011	1	Elec.Connect Locking Device	-
25	57M7546	8	Elec. Connector Terminal	-
26	57M9246	3	Clip	-
27	57M9435	1	Clamp	-
28	57M9425	1	Clamp	-
29	57M7255	1	Elec. Connector Housing	Air Heater Dust Cap
29	57M7290	1	Elec. Connector Accessory	-
29	57M7259	3	Elec. Connector Seal	-
30	57M7257	1	Elec. Connector Housing	Air Heater
30	57M7290	1	Elec. Connector Accessory	-
30	R104919	3	Elec. Connector Terminal	-
30	57M7258	2	Elec. Connector Seal	-
30	57M7493	1	Elec. Connector Seal	-
31	57M10330	23	Elec. Connector Terminal	-
31	57M10334	3	Elec. Connector Cavity Plug	-
31	57M10333	1	Elec. Connector Cavity Plug	-
31	57M10331	5	Elec. Connector Terminal	-
31	57M10604	1	Elec. Connector Housing	-
31	57M10605	1	Elec. Connector Housing	ECU Engine Connector
32	57M9288	1	Tee Fitting	-
33	57M7305	1	Elec. Connector Housing	Auxiliary PWR Connector
33	57M7307	1	Electrical Connector Assy	-
33	57M7285	2	Elec. Connector Terminal	-
33	R78059	2	Elec. Connector Seal	-
33	R78064	1	Elec. Connector Cavity Plug	-
34	57M7280	1	Elec. Connector Housing	Auxiliary PWR Dust Cap
34	R78064	3	Elec. Connector Cavity Plug	-
34	57M7274	1	Elec. Connector Accessory	-
35	57M8601	1	Elec. Connector Housing	Engine Cam Sensor
35	57M8633	1	Elec. Connector Accessory	-
35	57M8560	2	Elec. Connector Terminal	-
35	57M8566	2	Elec. Connector Seal	-
36	57M8601	1	Elec. Connector Housing	Coolant Temperature
36	57M8633	1	Elec. Connector Accessory	-
36	57M8560	2	Elec. Connector Terminal	-
36	57M8566	2	Elec. Connector Seal	-
37	57M8633	1	Elec. Connector Accessory	-
37	57M8566	2	Elec. Connector Seal	-
37	57M8560	2	Elec. Connector Terminal	-
37	57M8601	1	Elec. Connector Housing	Manifold Air Temperature
38	57M7257	1	Elec. Connector Housing	Fuel Pressure Dust Cap
38	57M7290	1	Elec. Connector Accessory	-
38	57M7259	3	Elec. Connector Seal	-
39	57M7255	1	Elec. Connector Housing	Fuel Pressure
39	57M7290	1	Elec. Connector Accessory	-
39	57M7494	3	Elec. Connector Terminal	-
39	57M7493	3	Elec. Connector Seal	-

8454 Engine Wiring Harness
