Oil Lines, Boom Pillar, CF8 / CF8 IBC

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M9620	2	Cap Screw	M6 X 45
2	19M9639	6	Cap Screw	M10 X 25
3	19M9646	2	Cap Screw	M12 X 20
4	19M9648	1	Cap Screw	M12 X 30
5	19M9703	2	Screw	M10 X 20
6	F001355	1	Strap With Buckle	-
7	F002805	3	Lock Washer	-
8	F005551	8	Lock Washer	-
9	F010635	1	Cover	-
10	F013024	8	Strap With Buckle	-
11	F017598	1	Hose Support	-
12	F024602	3	Fitting	-
13	F024604	7	Fitting	-
14	F046347	2	Hydraulic Hose	LGTH = 3400 mm, To Rotator Left and Right
15	F046348	1	Hydraulic Hose	LGTH = 4500 mm, To Boom Up
16	F046349	5	Hydraulic Hose	LGTH = 3400 mm, To Outer Boom Cylinder, Boom Extension and Grapple Close
17	F046350	2	Hose Guard	-
18	F046352	2	Hose Guard	-
19	F055534	1	Hydraulic Hose	LGTH = 4500 mm, To Boom Down
20	F071845	2	Adapter Fitting	-
21	F073521	1	Hydraulic Hose	LGTH = 3400 mm, To Grapple Open
22	F654358	1	Bracket	-
23	19M9707	6	Screw	M10 X 40
24	19M9708	2	Screw	M10 X 45
25	19M9709	2	Screw	M10 X 60
26	F003346	10	SPRING WASHER	-
27	F038483	2	CLAMP	-
28	F654370	1	Hose Support	-
29	F654373	1	Hose Clamp	-
30	F674941	1	Plate	-
31	F674946	1	Plate	-
32	F685850	1	Hose Clamp	-
33	F685851	1	Hose Clamp	-
34	F674935	1	Clamp	-
35	F687254	1	Bracket	-
36	F687257	1	Bracket	-
37	F010719	1	Clamp	-

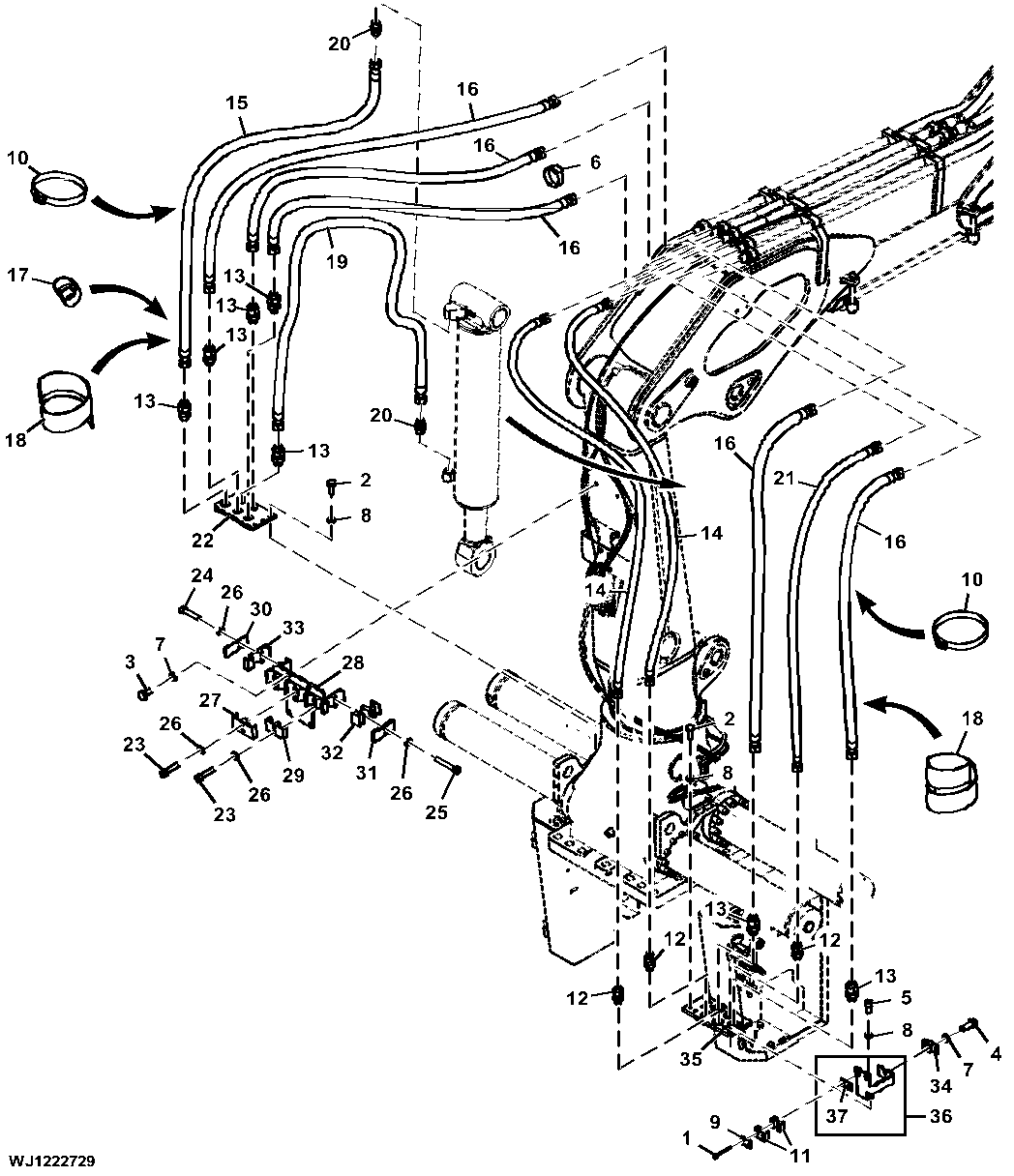

Oil Lines, Boom Pillar, CF8 / CF8 IBC
