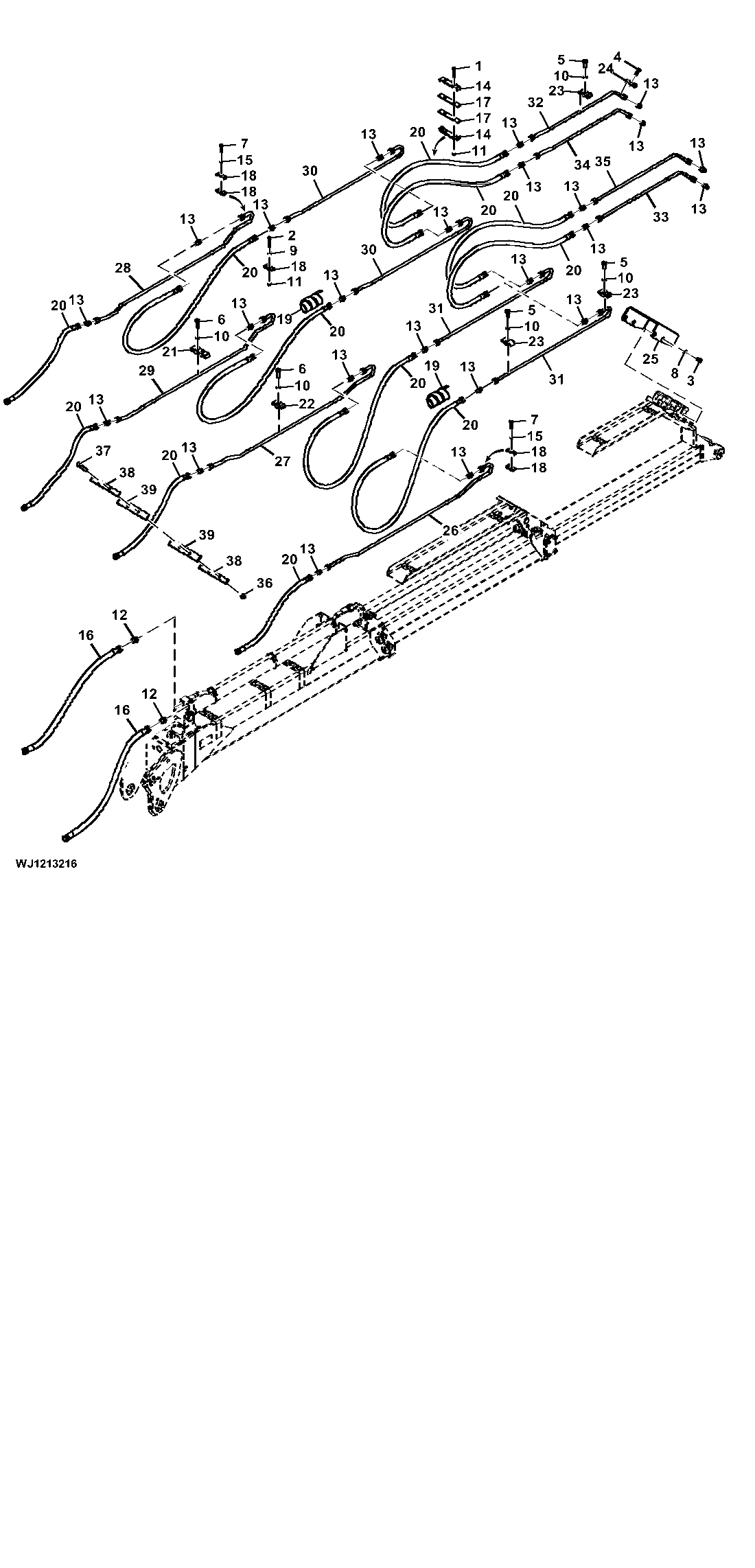

Oil Lines, Extension Boom, CF785S / CF785S IBC

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M9629	4	Cap Screw	M8 X 50
2	19M9630	2	Cap Screw	M8 X 55
3	19M9637	4	Cap Screw	M10 X 16
4	19M9640	2	Cap Screw	M10 X 30
5	19M9648	8	Cap Screw	M12 X 30
6	19M9650	9	Cap Screw	M12 X 40
7	19M9686	2	Cap Screw	M8 X 40
8	24M7488	4	Washer	10.500 X 20 X 2 mm
9	24M7509	2	Washer	8.400 X 16 X 1.600 mm
10	F002805	17	Lock Washer	-
11	14M7685	6	Lock Nut	M8
12	F005062	2	Fitting	-
13	F005085	24	Fitting	-
14	F007719	4	Holder	-
15	F008262	2	Lock Washer	-
16	F010863	2	Hydraulic Hose	LGTH = 1400 mm, To Hydraulic Cylinder Fabricate
17	F015419	4	Absorber	-
18	F015911	6	Holder	-
19	F033928	2	Hose Guard	-
20	F064914	12	Hydraulic Hose	LGTH = 1150 mm, To Rotator and Grapple Fabricate
21	F624132	3	Clamp	-
22	F624247	3	Clamp	-
23	F634951	8	Clamp	-
24	F634952	2	Clamp	-
25	F634953	1	Cover	-
26	F644731	1	Pipe	-
27	F644732	1	Pipe	-
28	F644733	1	Pipe	-
29	F644734	1	Pipe	-
30	F644735	2	Pipe	-
31	F644736	2	Pipe	-
32	F644737	1	Pipe	Rotator Right
33	F644738	1	Pipe	Grapple Open
34	F644739	1	Pipe	Rotator Left
35	F644740	1	Pipe	Grapple Close
36	14M7166	2	Lock Nut	M8, W/O IBC, W/ Lubrication
36	14M7685	2	Lock Nut	M8, W/ IBC
37	19M9631	2	Cap Screw	M8 X 60, W/O IBC, W/ Lubrication
37	19M9630	2	Cap Screw	M8 X 55, W/ IBC
38	F015909	2	Holder	W/O IBC, W/ Lubrication
38	F676514	2	Holder	W/ IBC
39	F054392	2	Plate	W/O IBC, W/ Lubrication
39	F676515	2	Plate	W/ IBC
