Oil Lines, Extension Boom, CF710S IBC

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7166	6	Lock Nut	M8
2	14M7610	2	Lock Nut	M10
3	19M9581	2	Cap Screw	M10 X 140
4	19M9629	7	Cap Screw	M8 X 50
5	19M9630	4	Cap Screw	M8 X 55
6	19M9637	4	Cap Screw	M10 X 16
7	19M9640	2	Cap Screw	M10 X 30
8	19M9642	2	Cap Screw	M10 X 40
9	19M9646	4	Cap Screw	M12 X 20
10	19M9648	8	Cap Screw	M12 X 30
11	19M9650	8	Cap Screw	M12 X 40
12	19M9683	4	Cap Screw	M8 X 25
13	19M9686	2	Cap Screw	M8 X 40
14	24M7488	8	Washer	10.500 X 20 X 2 mm
15	24M7509	2	Washer	8.400 X 16 X 1.600 mm
16	F002805	20	Lock Washer	-
17	F005062	2	Fitting	-
18	F005085	24	Fitting	-
19	F005086	4	Fitting	-
20	F005551	2	Lock Washer	-
21	F007719	4	Holder	-
22	F008262	9	Lock Washer	-
23	F015419	4	Absorber	-
24	F015911	6	Holder	-
25	F033928	1	Hose Guard	-
26	F064914	2	Hydraulic Hose	LGTH = 1150 mm, To Hydraulic Cylinders
27	F065020	8	Hydraulic Hose	LGTH = 1600 mm
28	F075763	4	Hydraulic Hose	To Rotator and Grapple
29	F075764	2	Hydraulic Hose	LGTH = 1050 mm
30	F624132	3	Clamp	-
31	F629237	1	Clamp	-
32	F634951	8	Clamp	-
33	F634952	2	Clamp	-
34	F634953	1	Cover	-
35	F643428	1	Cover	-
36	F644735	2	Pipe	To Rotator Left
37	F644736	2	Pipe	To Grapple Open
38	F645057	1	Pipe	-
39	F645058	1	Pipe	-
40	F645059	1	Pipe	To Rotator Left
41	F645060	1	Pipe	To Grapple Close
42	F661842	1	Pipe	-
43	F661843	1	Pipe	-
44	F661844	1	Pipe	-
45	F661845	1	Pipe	-
46	F661846	1	Pipe	-
47	F661847	1	Pipe	-
48	F661849	1	Clamp	-
49	F676511	1	Clamp	-
50	F679361	1	Clamp	-
51	14M7685	2	Lock Nut	M8
52	F676514	2	Holder	-
53	F676515	2	Plate	-
54	F662031	1	Clamp	-

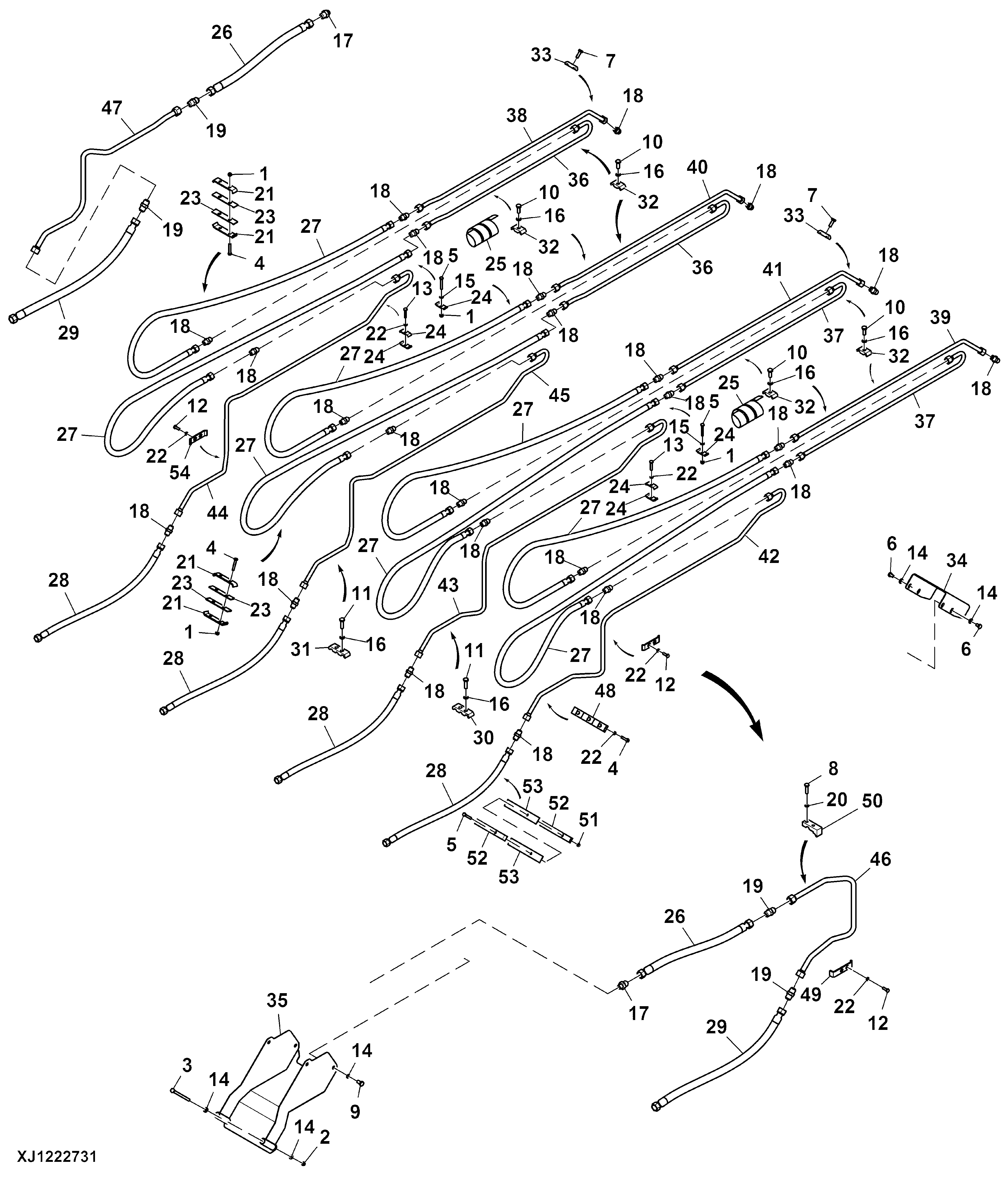

Oil Lines, Extension Boom, CF710S IBC
