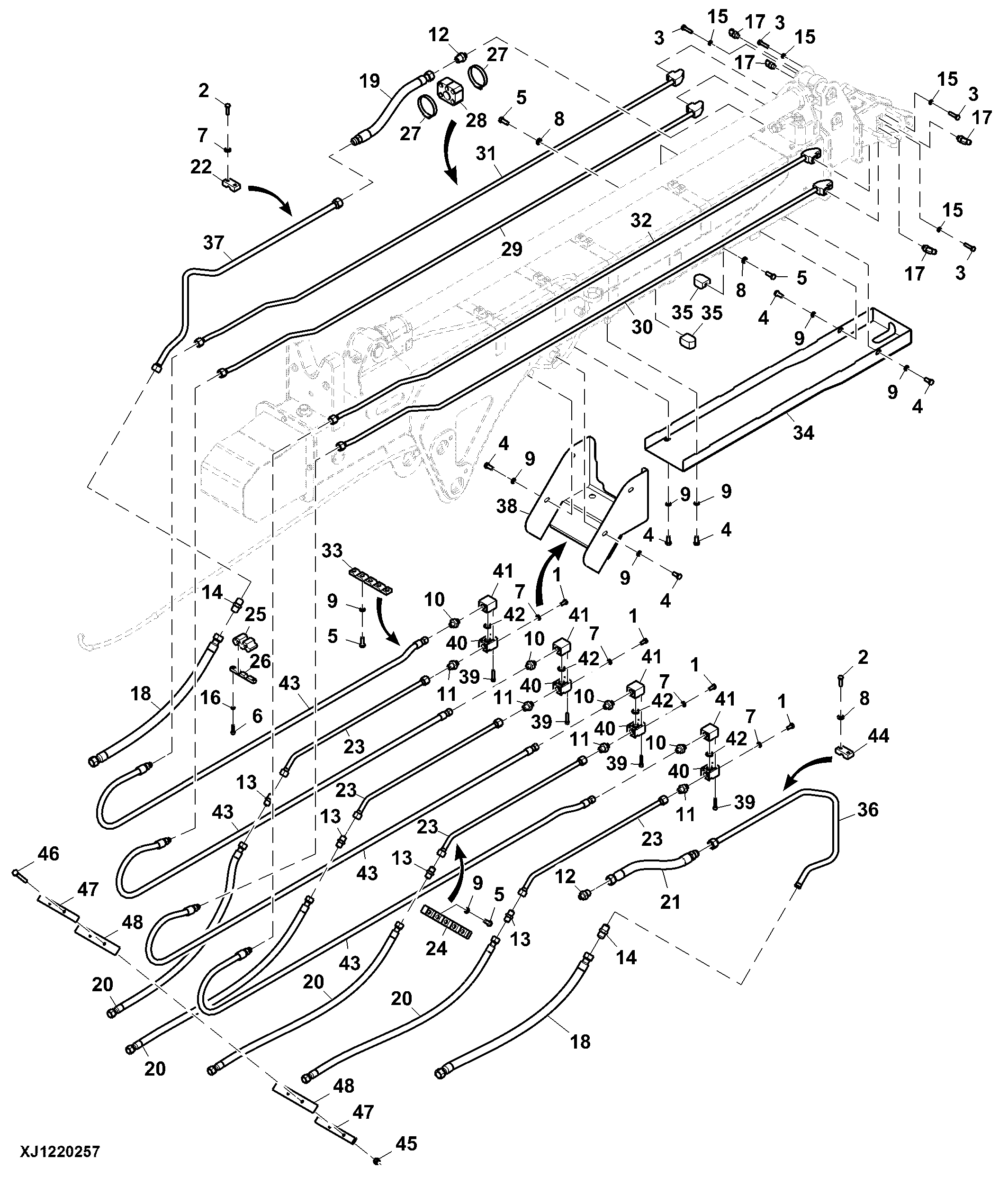

Oil Lines, Boom Extension, IBC, CF711S, Hidden Hoses

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M9638	4	Cap Screw	M10 X 20
2	19M9641	8	Cap Screw	M10 X 35
3	19M9642	4	Cap Screw	M10 X 40
4	19M9647	8	Cap Screw	M12 X 25
5	19M9648	12	Cap Screw	M12 X 30
6	19M9739	2	Screw	M8 X 30
7	24M7488	12	Washer	10.500 X 20 X 2 mm
8	24M7491	2	Washer	13 X 24 X 2.500 mm
9	F002805	18	Lock Washer	-
10	F005059	4	Fitting	-
11	F005061	4	Fitting	-
12	F005062	2	Fitting	-
13	F005085	4	Fitting	-
14	F005086	2	Fitting	-
15	F005551	4	Lock Washer	-
16	F008262	2	Lock Washer	-
17	F012533	4	ELBOW NIPPLE	-
18	F692766	2	Hydraulic Hose	LGTH = 11800 mm, SUB FOR F064913
19	F066090	1	Hydraulic Hose	LGTH = 450 mm, To Hydraulic Cylinder, Boom Out
20	F692767	4	Hydraulic Hose	LGTH = 1180 mm, To Rotator and Grapple, SUB FOR F070308
21	F070309	1	Hydraulic Hose	LGTH = 410 mm, To Rotator and Grapple
22	F624847	2	Clamp	-
23	F633020	4	Pipe	-
24	F633038	1	Clamp	-
25	F633189	1	Clamp	-
26	F633190	1	Clamp	-
27	F049578	4	Hose Clamp	-
28	F633209	2	Clamp	-
29	F633745	1	Oil Line	Rotator Left
30	F633748	1	Oil Line	Grapple Open
31	F633753	1	Oil Line	Rotator Right
32	F633754	1	Oil Line	Grapple Close
33	F633671	1	Clamp	-
34	F633764	1	Cover	-
35	F639689	2	Plate	-
36	F646149	1	Pipe	-
37	F646150	1	Pipe	-
38	F646151	1	Cover	-
39	19M9951	16	Socket Head Screw	M8 X 40
40	F678121	4	Hydraulic Component	-
41	F678122	4	Hydraulic Component	-
42	U11647	4	O-Ring	-
43	F677585	4	Hydraulic Hose	LGTH = 2950 mm
44	F679361	2	Clamp	-
45	14M7685	2	Lock Nut	M8
46	19M9630	2	Cap Screw	M8 X 55
47	F676514	2	Holder	-
48	F676515	2	Plate	-

Oil Lines, Boom Extension, IBC, CF711S, Hidden Hoses
