Открытый узел

Hoses, Oil Line, Boom Pillar, CF7, CF7S

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

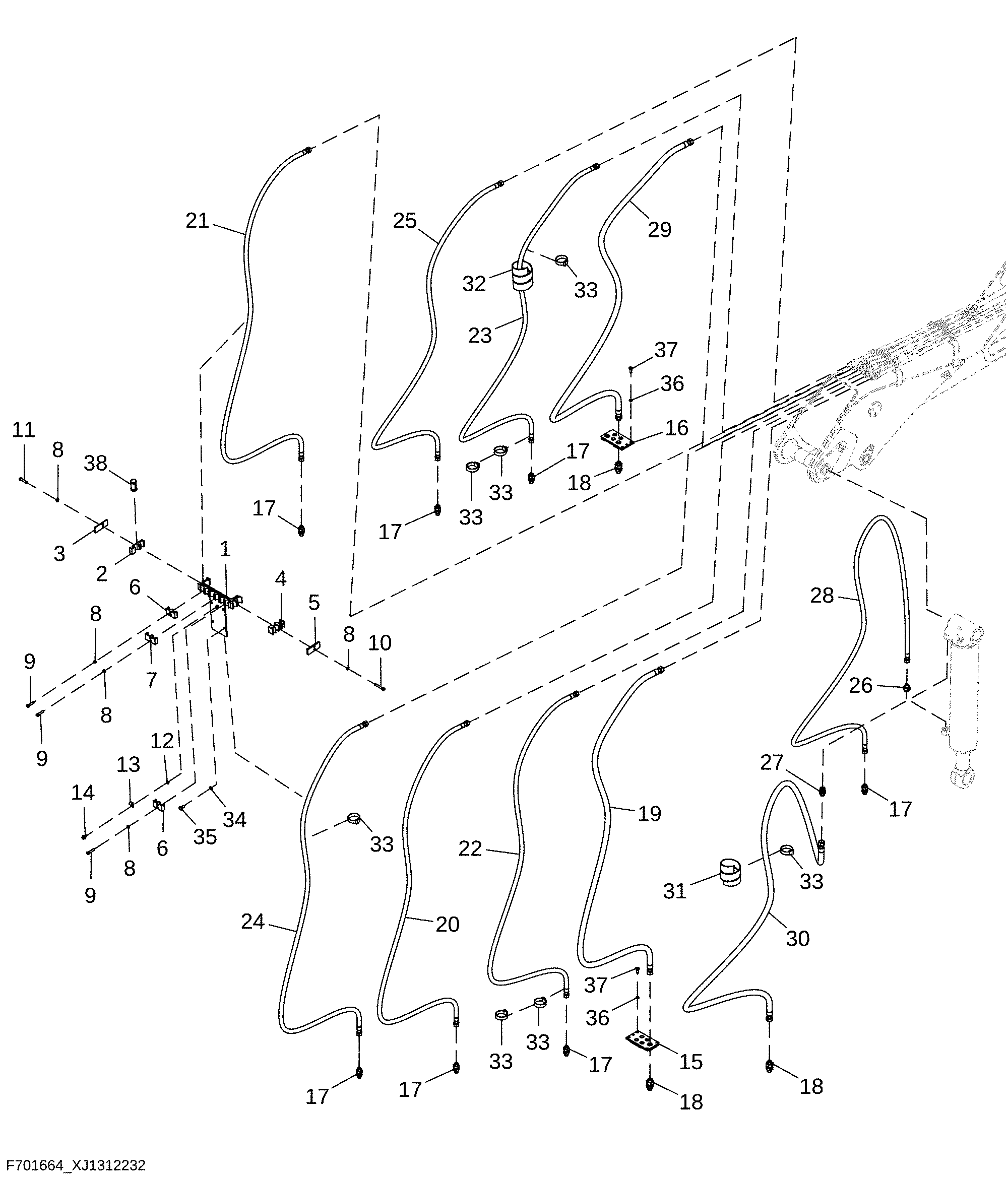

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F699217	1	Hose Clamp	-
2	F699222	1	Hose Clamp	-
3	F699235	1	Plate	-
4	F699231	1	Hose Clamp	-
5	F699210	1	Plate	-
6	F699207	2	Hose Clamp	-
7	F699218	1	Hose Clamp	-
8	F005551	10	Lock Washer	-
9	19M9707	6	Screw	M10 X 40
10	19M9710	2	Screw	M10 X 65
11	19M9708	2	Screw	M10 X 45
12	24M7488	1	Washer	10.500 X 20 X 2 mm
13	R34557	1	Clamp	-
14	19M10358	1	Screw	M10 X 16
15	F701633	1	Bracket	-
16	F701644	1	Bracket	-
17	F024602	7	Fitting	-
18	F024604	3	Fitting	-
19	F040540	1	Hydraulic Hose	LGTH = 3101 mm, To Boom Extension Out
20	F040539	1	Hydraulic Hose	LGTH = 3101 mm, To Grapple Closed
21	F040539	1	Hydraulic Hose	LGTH = 3101 mm, To Rotator Right
22	F040539	1	Hydraulic Hose	LGTH = 3101 mm, To Grapple Open
23	F040539	1	Hydraulic Hose	LGTH = 3101 mm, To Lifting Down
24	F040539	1	Hydraulic Hose	LGTH = 3101 mm, To Rotator Left
25	F040539	1	Hydraulic Hose	LGTH = 3101 mm, To Boom Extension In
26	F012507	1	Fitting	-
27	F071845	1	Adapter Fitting	-
28	F040542	1	Hydraulic Hose	LGTH = 4201 mm, To Luffing Boom Far
29	F040540	1	Hydraulic Hose	LGTH = 3101 mm, To Luffing Boom Near
30	F694343	1	Hydraulic Hose	LGTH = 4201 mm, To Lifting Down, ALSO ORDER F701530
31	F046350	1	Hose Guard	CTL = 1100 m
32	F046350	1	Hose Guard	CTL = 1100 m
33	F001355	7	Strap With Buckle	-
34	F002805	4	Lock Washer	-
35	19M9646	4	Cap Screw	M12 X 20
36	F005551	6	Lock Washer	-
37	19M9639	6	Cap Screw	M10 X 25
38	F701530	1	Bushing	-

Hoses, Oil Line, Boom Pillar, CF7, CF7S
