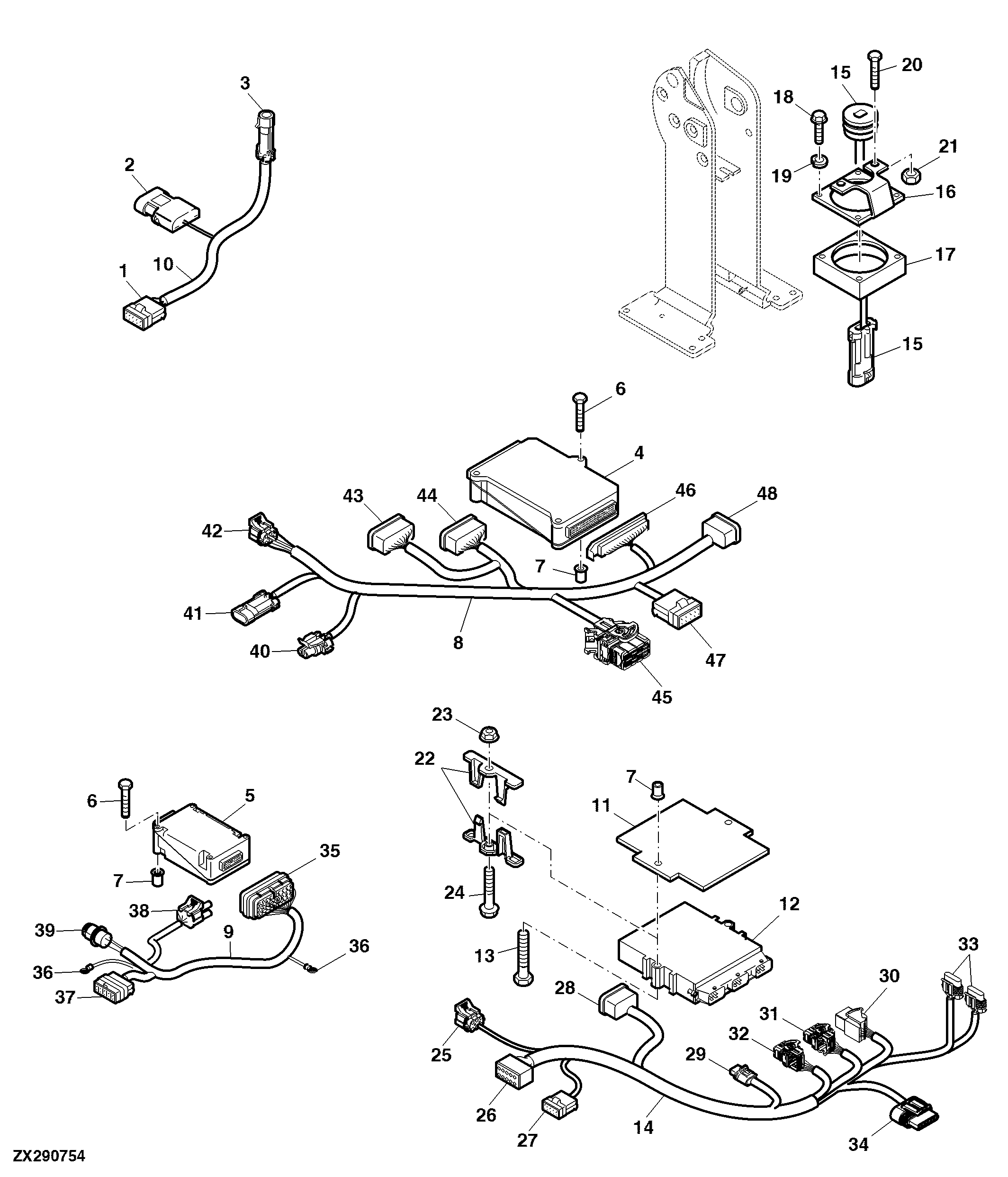

WIRING HARNESSES AND CONTROL UNITS - AUTOMATIC FEED RATE SYSTEM AND AUTOTRAC

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7264	1	Elec. Connector Housing	(Ord W/ (7) 57M7493, 57M7283)
2	57M9207	1	Elec. Connector Housing	(Ord W/ (6) 57M7829)
3	R78052	1	Electrical Connector Assy	(Ord W/ R78061, 57M7292)
4	RE231717	1	Electronic Control Unit	-
5	AH217952	1	Electronic Control Unit	-
6	R109066	1	Screw	-
7	H169634	1	Nut	-
8	AH216738	1	Wiring Harness	-
9	AH211678	1	Wiring Harness	-
10	AH211679	1	Wiring Harness	-
11	H209097	1	Isolator	-
12	AH209685	1	Electronic Control Unit	-
13	19M8040	1	Screw	M6 X 60
14	AH205024	1	Wiring Harness	-
15	AH212139	1	Wiring Harness	-
16	H207970	1	Bracket	-
17	H207968	1	Bearing Housing W/O Bearing	-
18	19M7640	4	Cap Screw	M5 X 12
19	12M7064	4	Lock Washer	5 mm
20	-	2	Part 20	-
21	-	2	Part 21	-
22	R231112	1	Isolator	(REGION II ONLY)
23	14M7397	2	Lock Nut	(REGION II ONLY) M6
24	19M8092	2	Screw	(REGION II ONLY) M6 X 50
25	57M7260	1	Elec. Connector Housing	(Ord W/ (4) 57M7494, (4) 57M7258, 57M7291, RE183146)
26	57M8453	1	Elec. Connector Housing	(Ord W/ 57M8009, (4) 57M8165, (5) 57M7546)
27	57M8452	1	Elec. Connector Housing	(Ord W/ 57M7682, (5) N282069)
28	57M8010	1	Electrical Connector Assy	(Ord W/ 57M8011, (4) 57M8165, (3) 57M7546)
29	57M7840	1	Elec. Connector Housing	(Ord W/ 57M7469, (4) 57M7494, (4) 57M7493)
30	57M8520	1	Elec. Connector Housing	(Ord W/ 57M8528, 57M8531, (3) 57M7469)
31	57M8527	1	Elec. Connector Housing	(Ord W/ 57M8529, (2) 57M9469)
32	57M8519	1	Elec. Connector Housing	(Ord W/ 57M8528, (5) 57M9469)
33	57M8416	2	Elec. Connector Housing	(Ord W/ 57M7469, (4) 57M7494, (4) 57M7493)
34	57M8906	1	Elec. Connector Housing	Ord W/ (4) 57M7830)
35	AZ47848	1	Electrical Connector Assy	(Ord W/ (13) R104701)
36	57M8869	2	Elec. Connector Terminal	-
37	57M7261	1	Elec. Connector Housing	(Ord W/ 57M7296, (6) 57M7493, (6) R104846)
38	57M7628	1	Electrical Connector Assy	(Ord W/ 57M7619, (2) N282069)
39	57M7752	1	Elec. Connector Housing	(Ord W/ (2) N282069)
40	RE12363	1	Electrical Connector Assy	(Ord W/ (2) R78057, (2) 57M7292)
41	R78053	1	Electrical Connector Assy	(Ord W/ (2) R78058, (2) 57M7292)
42	57M7260	1	Elec. Connector Housing	(Ord W/ 57M7291, RE207311, (4) 57M7494, (4) 57M7377, (2) 57M9541, (2) 57M7493)
43	AZ54366	1	Elec. Connector Housing	(Ord W/ 57M7281, (4) 57M9541, (4) 57M7493, (3) 57M7494, (3) 57M7377)
44	57M7262	1	Elec. Connector Housing	(Ord W/ 57M7281, (2) 57M7494, (2) 57M9541, (2) 57M7493, (2) 57M7377)
45	57M8527	1	Elec. Connector Housing	(Ord W/ (4) 57M9469, (4) 57M8531, 57M8529)
46	R125822	1	Elec. Connector Terminal	(Ord W/ 57M7281, (2) 57M7493, (2) 57M7252)
47	-	1	Part 47	(Ord W/ (8) 57M8306, (8) 57M8322, (2) 57M8308, (2) 57M8324)
48	57M9031	1	Elec. Connector Housing	(Ord W/ (4) 57M9525, (4) Z78025, 57M7680)
