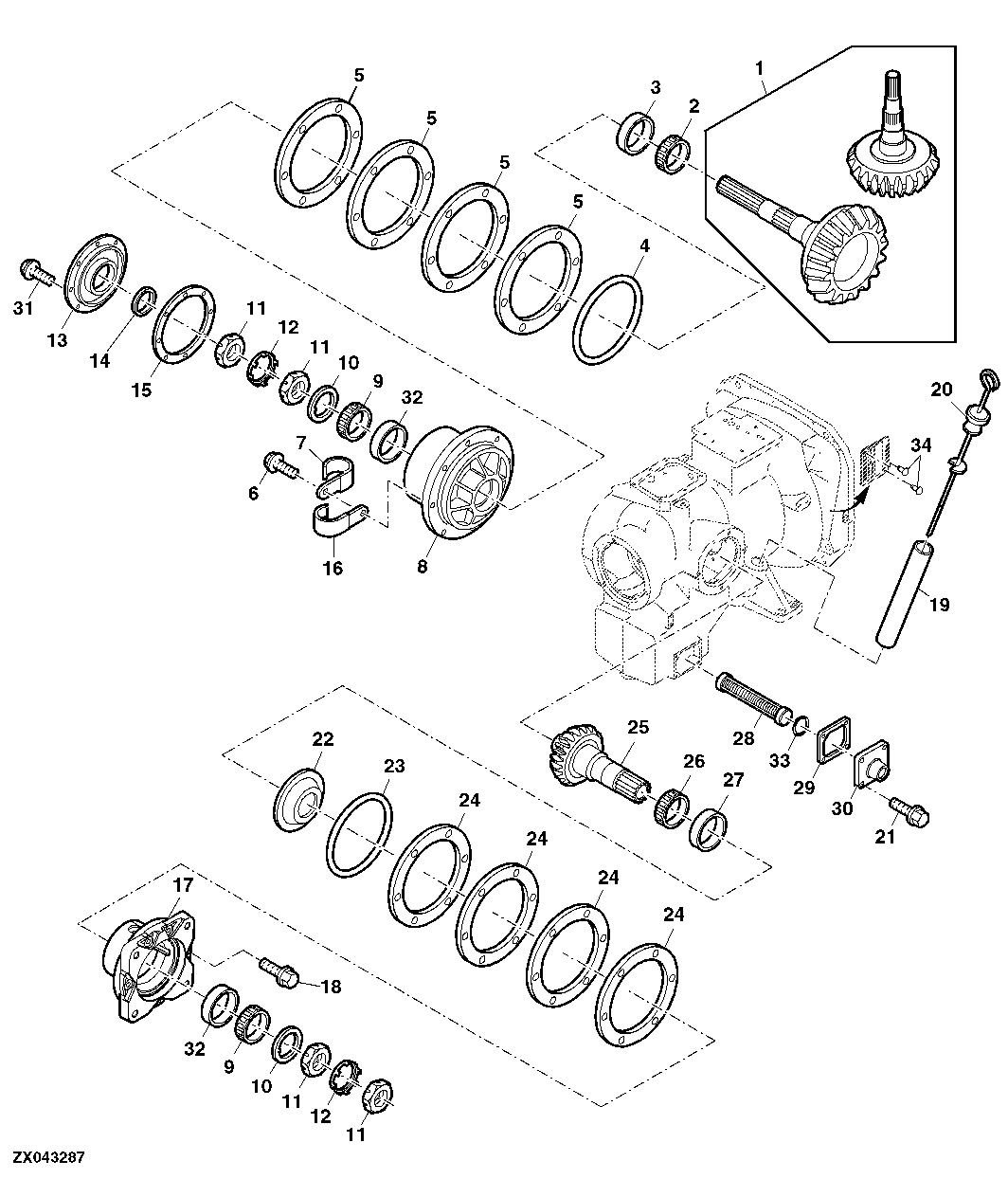

PTO GEAR FOR PRODRIVE, PART 5

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DE18718	1	Gear	(FOR PRODRIVE) Z = 37 / 56
2	JD9075	1	Bearing Cone	(FOR PRODRIVE)
3	JD9132	1	Bearing Cup	(FOR PRODRIVE)
4	H125839	1	O-Ring	(FOR PRODRIVE)
5	CE17450	1	Shim	(FOR PRODRIVE) TK = 0.08 MM
5	CE17451	1	Shim	(FOR PRODRIVE) TK = 0.13 MM
5	CE17452	1	Shim	(FOR PRODRIVE) TK = 0.25 MM
5	CE17453	3	Shim	(FOR PRODRIVE) TK = 0.50 MM
6	19M7790	7	Screw	(FOR PRODRIVE) M12 X 35
7	AH96317	1	Clip	(FOR PRODRIVE)
8	CE17844	1	Housing	(FOR PRODRIVE)
9	JD9007	2	Bearing Cone	(FOR PRODRIVE)
10	H110800	2	Lock Washer	(FOR PRODRIVE)
11	H122650	4	Lock Nut	(FOR PRODRIVE)
12	H110801	2	Lock Washer	(FOR PRODRIVE)
13	H148769	1	Housing	(FOR PRODRIVE)
14	AH209644	1	Seal	(FOR PRODRIVE)
15	H125356	1	Gasket	(FOR PRODRIVE)
16	AH117301	1	Clamp	(FOR PRODRIVE)
17	CE21032	1	Housing	(FOR PRODRIVE)
18	19M7805	5	Screw	(FOR PRODRIVE) M10 X 45
19	CE19989	1	Tube	(FOR PRODRIVE) (For DE20658)
19	H132995	1	Tube	(FOR PRODRIVE) (For DE20405)
20	AH214957	1	Dipstick	(FOR PRODRIVE) (Incl T28004)
21	19M7868	4	Screw	(FOR PRODRIVE) M8 X 30
22	H125837	1	Oil Cup	(FOR PRODRIVE)
23	R72032	1	O-Ring	(FOR PRODRIVE)
24	H125734	1	Shim	(FOR PRODRIVE) TK = 0.08 MM
24	H125735	1	Shim	(FOR PRODRIVE) TK = 0.13 MM
24	H125736	1	Shim	(FOR PRODRIVE) TK = 0.25 MM
24	H125737	3	Shim	(FOR PRODRIVE) TK = 0.50 MM
25	-	1	Part 32	(FOR PRODRIVE) (Ord DE19182)
26	JD9075	1	Bearing Cone	(FOR PRODRIVE)
27	JD9132	1	Bearing Cup	(FOR PRODRIVE)
28	CE19990	1	Filter	(FOR PRODRIVE)
29	H126792	1	Gasket	(FOR PRODRIVE)
30	CE20335	1	Cover	(FOR PRODRIVE) (For DE20658)
30	CE19692	1	Cover	(FOR PRODRIVE) (For DE20405)
31	19M7863	8	Screw	(FOR PRODRIVE) M6 X 25
32	JD8206	2	Bearing Cup	(FOR PRODRIVE)
33	CE20304	1	O-Ring	(FOR PRODRIVE)
34	37H26	2	Screw	(FOR PRODRIVE) 0.116" X 1/4"
..	CE20310	1	Plug	(FOR PRODRIVE)
