Hydraulic Lines, Cutting Platform Lifting Cylinder

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12M7099	4	Lock Washer	6 mm
2	14M7027	2	NUT	M6
3	19M10098	2	Screw	M6 X 30
4	19M10099	2	Screw	M6 X 35
5	AYC10576	1	Union Fitting	-
6	AYC10674	2	Hydraulic Hose	LGTH = 900 mm
7	AYC15563	1	Oil Line	INCLUDES (2) YC16855 AND (2) YC16849
8	YC16855	2	Sleeve Fitting	-
9	AYC15634	1	Oil Line	INCLUDES (2) YC16853
10	YC16853	8	Tapered Sleeve	-
11	AYC20274	1	Oil Line	INCLUDES (2) YC16853
12	AYC20275	1	Oil Line	INCLUDES (2) YC16853
13	AYC21449	1	Oil Line	-
14	AZ22845	1	FITTING	-
15	YC16852	1	Tee Fitting	-
16	YC23733	2	Holder	-
17	Z30667	2	PLATE	-
18	H77698	1	Tie Band	SUB FOR Z31799
19	Z34005	1	WASHER	-
20	Z34506	1	Grommet	-
21	Z34952	4	Clamp	-
22	YC16849	2	Tube Nut	-
23	12M7008	3	LOCK WASHER	8 mm
24	19M7298	3	Cap Screw	M8 X 35
25	24M7055	3	Washer	8.400 X 16 X 1.600 mm
26	AYC15467	1	Oil Line	-
27	AYC19956	1	Hydraulic Accumulator	-
28	YC13010	1	Lock Washer	-
29	YC16914	1	Fitting	-

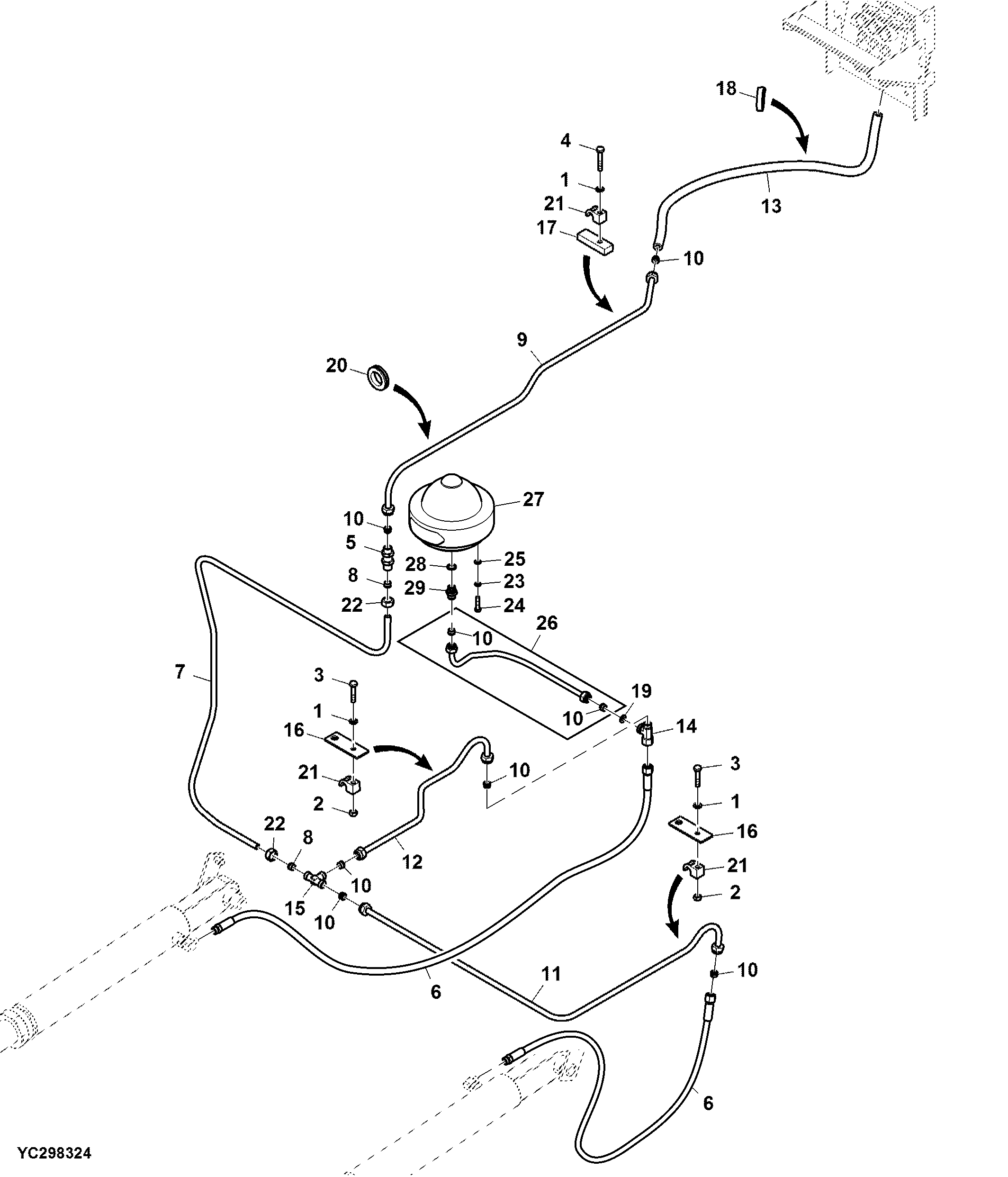

Hydraulic Lines, Cutting Platform Lifting Cylinder

Нет текстового описания
