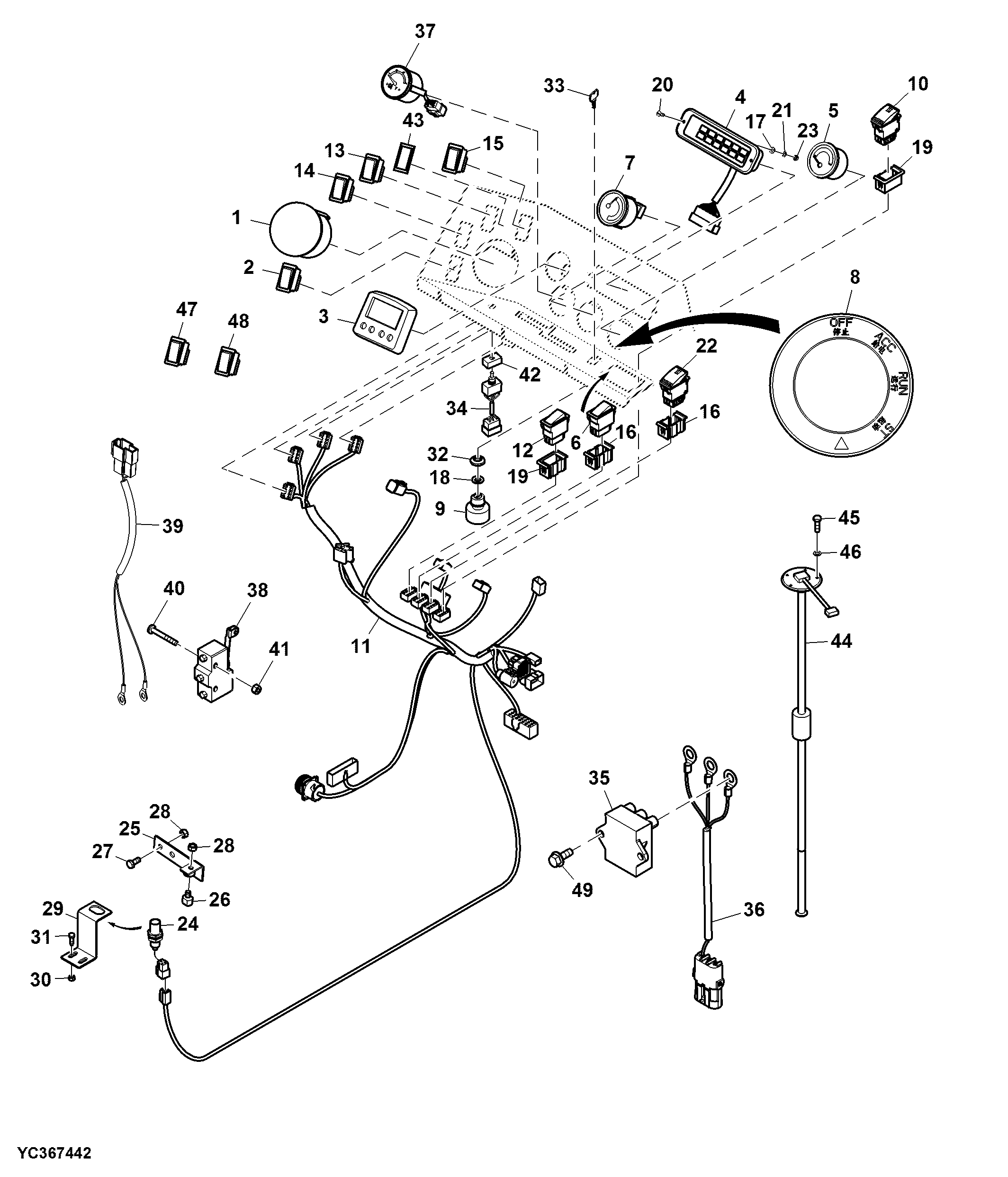

Dashboard Panel, Hydro Drive (Optional)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	ADX12097	1	Tachometer	-
1	AYC21916	1	Tachometer	-
2	AYC13181	1	Switch	-
3	RE546788	1	Gauge	-
4	AYC19990	1	Indicator Lamp	-
5	AYC10723	1	Level Gauge	-
6	AYC13183	1	Switch	-
6	ADX11921	1	Switch	-
7	AYC27455	1	Tachometer	-
8	YC27937	1	Label	-
9	AR58126	2	Rotary Switch	INCLUDES (2) AR51481
10	AYC21369	1	Switch	-
10	ADX11920	1	Switch	-
11	ADX10616	1	Wiring Harness	-
11	ADX12192	1	Wiring Harness	-
12	AYC13186	1	Toggle/Rocker Switch	-
13	AYC13185	1	Motion Sensing Switch	-
13	ADX11919	1	Switch	-
14	AYC13187	1	Switch	-
15	RE198505	1	Toggle/Rocker Switch	-
16	AYC27222	2	Switch Kit	-
17	24M7117	2	Washer	4.300 X 9 X 0.800 mm
18	A4827R	1	Washer	-
19	AYC27221	2	Switch Kit	-
20	YC20396	2	Screw	-
21	12M7063	2	Lock Washer	4 mm
22	AYC22874	1	Switch	-
23	14M7620	2	Nut	M4
24	YC29625	1	Proximity Sensor	-
24	AYC24100	1	Proximity Sensor	-
24	AYC10033	2	Proximity Sensor	INCLUDES AYC24100 AND YC29625
25	AYC18845	1	Support	-
26	YC10089	1	Adapter Fitting	-
27	19M7284	2	Cap Screw	M8 X 18
28	14M7029	3	Nut	M8
29	YC22040	1	Holder	-
29	YC22041	1	Holder	-
29	YC22042	1	Holder	-
30	14M7027	2	NUT	M6
31	YC20379	2	Bolt	-
32	R44342	1	Nut	-
33	AR51481	2	Key	-
34	AYC22329	1	Toggle/Rocker Switch	-
35	ADX10325	1	Ignition Controller	-
36	ADX10327	1	Wiring Harness	-
37	AYC23462	1	Temperature Gauge	-
38	AYC19470	1	Switch	-
39	AYC25407	1	Wiring Harness	-
40	21M7276	2	Screw	M4 X 30
41	YC20355	2	Nut	-
42	YC12995	1	Plug	-
43	YC24536	1	Panel	-
44	ADX11523	1	Sensor	-
45	19M10104	5	Screw	M5 X 16
46	12M7064	5	Lock Washer	5 mm
47	ADX11917	1	Switch	-
48	ADX11918	1	Switch	-
49	19M7775	2	Screw	M6 X 16

Dashboard Panel, Hydro Drive (Optional)
