Открытый узел

20 Diesel Engine 6068HYC59-DZ101890

20 Diesel Engine 6068HYC59-DZ101890

20 Diesel Engine 6068HYC59-DZ101890

20 Diesel Engine 6068HYC59-DZ101890

20 Diesel Engine 6068HYC59-DZ101890

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

20 Diesel Engine 6068HYC59-DZ101890

Нет текстового описания

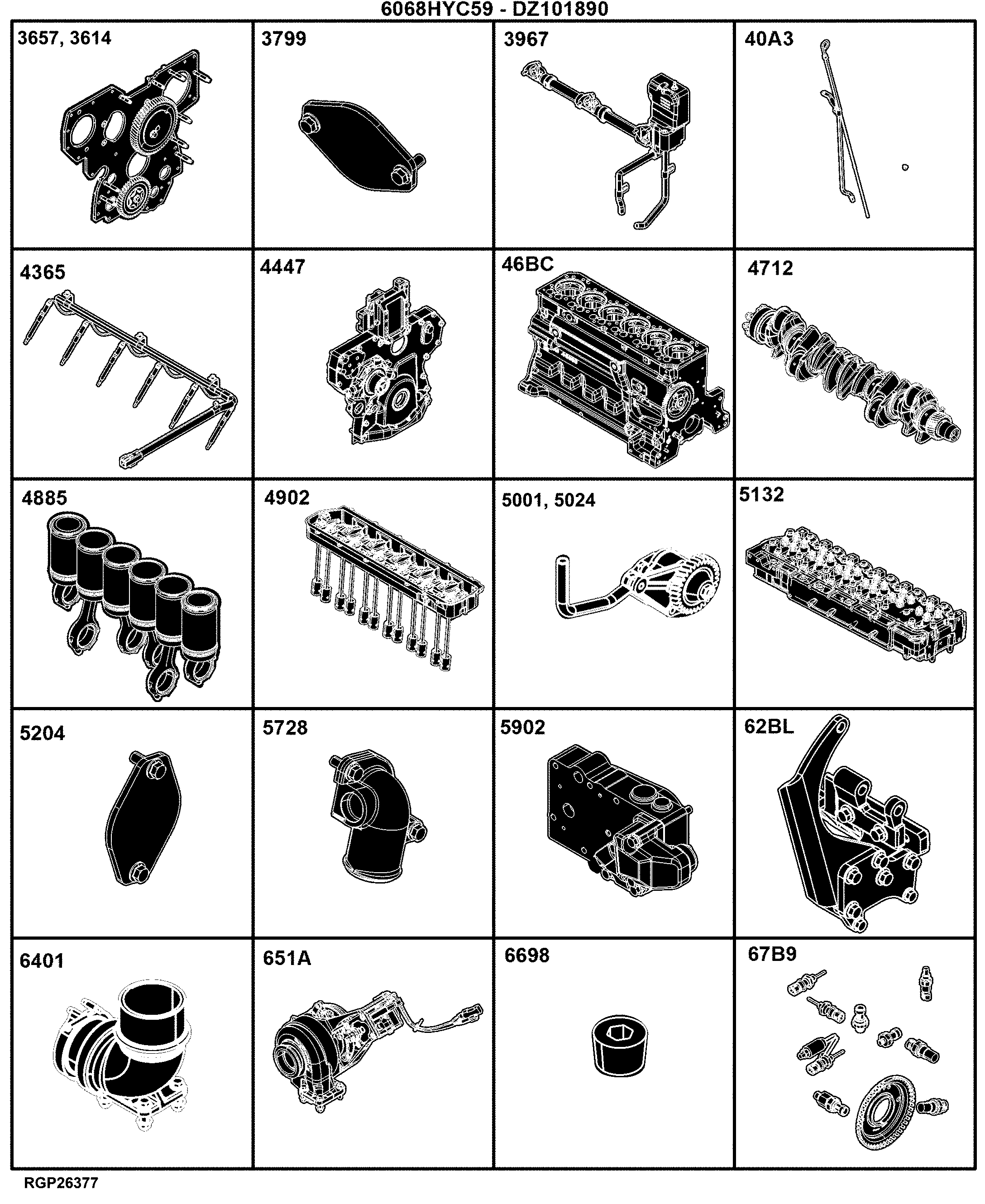

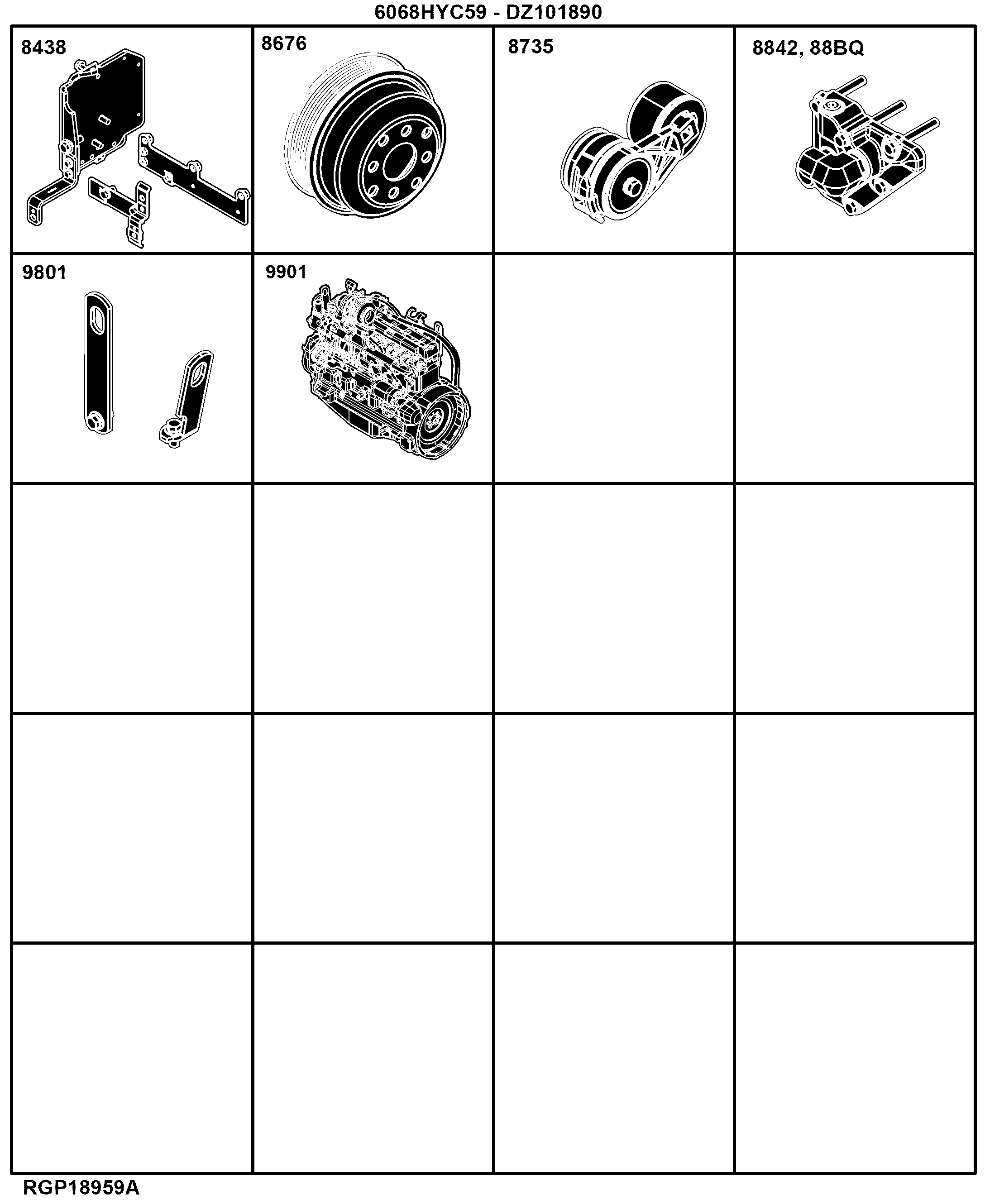

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	8842 Engine Oil Filter ( - XXXXXX)	-
-	-	1	4902 Valve Actuating Mechanism	-
-	-	1	5001 Engine Oil Pump ( - 010574)	-
-	-	1	5024 Engine Oil Pump (010575 - )	-
-	-	1	5132 Cylinder Head	-
-	-	1	5204 Auxiliary Drive Cover	-
-	-	1	5728 Water Pump Inlet	-
-	-	1	5902 Engine Oil Cooler	-
-	-	1	62BL Alternator Mounting	-
-	-	1	6401 Exhaust Pipe	-
-	-	1	651A Turbocharger	-
-	-	1	6698 Temperature Switch Plug	-
-	-	1	67B9 Engine Sensors	-
-	-	1	8438 Engine Wiring Harness	-
-	-	1	8676 Fan Pulley	-
-	-	1	8735 Belt Tensioner	-
-	-	1	4885 Connecting Rods and Pistons	-
-	-	1	88BQ Engine Oil Filter (XXXXXX - )	-
-	-	1	9801 Lift Straps	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Cylinder Head Bolts Kit	-
-	-	1	9901 Engine Overhaul Kit	-
-	-	1	9901 Injection Nozzle Kit	-
-	-	1	9901 O-Ring Kit, Cylinder Liner	-
-	-	1	9901 Overhaul Gasket Kit (1/3)	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	28AV Exhaust Manifold	-
-	-	1	1276 Oil Filler Neck	-
-	-	1	1343 Crankshaft Pulley and Damper	-
-	-	1	1403 Flywheel Housing (014431 - )	-
-	-	1	14BW Flywheel Housing ( - 014430)	-
-	-	1	1509 Flywheel	-
-	-	1	16SP Fuel Injection System	-
-	-	1	17A9 Air Intake Manifold	-
-	-	1	19DF Oil Pan	-
-	-	1	2001 Water Pump Pulley	-
-	-	1	2158 Thermostat Cover	-
-	-	1	2217 Thermostat	-
-	-	1	2341 Fan Drive	-
-	-	1	24HB Fan Belt	-
-	-	1	2551 Fan	-
-	-	1	2690 Engine Coolant Heater Fittings	-
-	-	1	1158 Rocker Arm Cover	-
-	-	1	2972 Ventilating System	-
-	-	1	3010 Starter Motor ( - 006788)	-
-	-	1	30DK Starter Motor (006789 - )	-
-	-	1	3183 Alternator	-
-	-	1	35JQ Final Fuel Filter	-
-	-	1	3614 Front Plate (014430 - )	-
-	-	1	3657 Front Plate ( - 014429)	-
-	-	1	3799 Fuel Transfer Pump, Hardware	-
-	-	1	3967 Thermostat Housing	-
-	-	1	40A3 Dipstick	-
-	-	1	4365 Starting Aid	-
-	-	1	4447 Timing Gear Cover and Water Pump	-
-	-	1	46BC Cylinder Block	-
-	-	1	4712 Crankshaft and Bearings	-
