Hydraulic Lines, Reservoir, Pump and Control Valve

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	Z42193	1	FITTING	-
2	YC12578	1	Fuel Supply Banjo Fitting	-
3	YC12243	1	Union Fitting	-
4	YC12614	1	Hollow Screw	-
5	YC12615	1	Fuel Supply Banjo Fitting	-
6	YC12613	2	Washer	-
7	AYC11349	1	Valve	-
7	AYC23001	1	Seal Kit	-
7	AYC23008	1	Valve Spool	-
7	AYC23009	1	Pressure Relief Valve	137 bar
7	ADX12215	1	Pressure Relief Valve	172 bar
8	AYC23002	1	Seal Kit	-
8	AYC23007	1	Valve Spool	-
8	AYC11350	1	Valve	-
9	ADX12130	1	Hydraulic Hose	Two Link Valve to Three Link Valve SUB FOR AYC11346
10	AYC10777	1	Hydraulic Hose	-
11	AYC10779	1	Tee Fitting	-
12	ADX12131	1	Hydraulic Hose	Two Link Valve to Three Link Valve SUB FOR AYC11347
13	AYC10774	1	Hydraulic Hose	LGTH = 1500 mm
14	YC24302	1	Orifice	-
15	YC16854	2	Sleeve Fitting	-
16	AYC15521	1	Oil Line	Hydraulic Oil Reservoir to Two-Link Control Valve
17	Z37688	1	Orifice	-
18	AYC10599	1	Fitting	-
19	YC12580	2	Washer	-
20	YC12579	1	Hollow Screw	-
21	AYC12339	2	Elbow Fitting	Hydraulic Pump to Three Link Valve
22	YC12609	1	Hydraulic Hose	LGTH = 480 mm, Hydraulic Oil Reservoir to Hydraulic Pump
23	AYC11348	1	Hydraulic Hose	Hydraulic Oil Reservoir to Hydraulic Pump
24	YC16846	1	Fitting	-
25	YC13045	2	Pressure Relief Fitting	-
26	Z34063	2	FITTING	-
27	YC16847	2	Fitting	-
28	YC17393	1	Fitting	-
29	YC16845	1	Fitting	-
30	YC13989	4	Clamp	-
31	19M7169	4	Cap Screw	M10 X 35
32	12M7013	4	LOCK WASHER	10.200 mm
33	YC12798	1	O-Ring	-
34	YC13006	1	O-Ring	-
35	AYC10601	2	Elbow Fitting	-
36	YC31994	1	Fitting	Use for Hydro Drive Option
37	YC13007	6	O-Ring	-

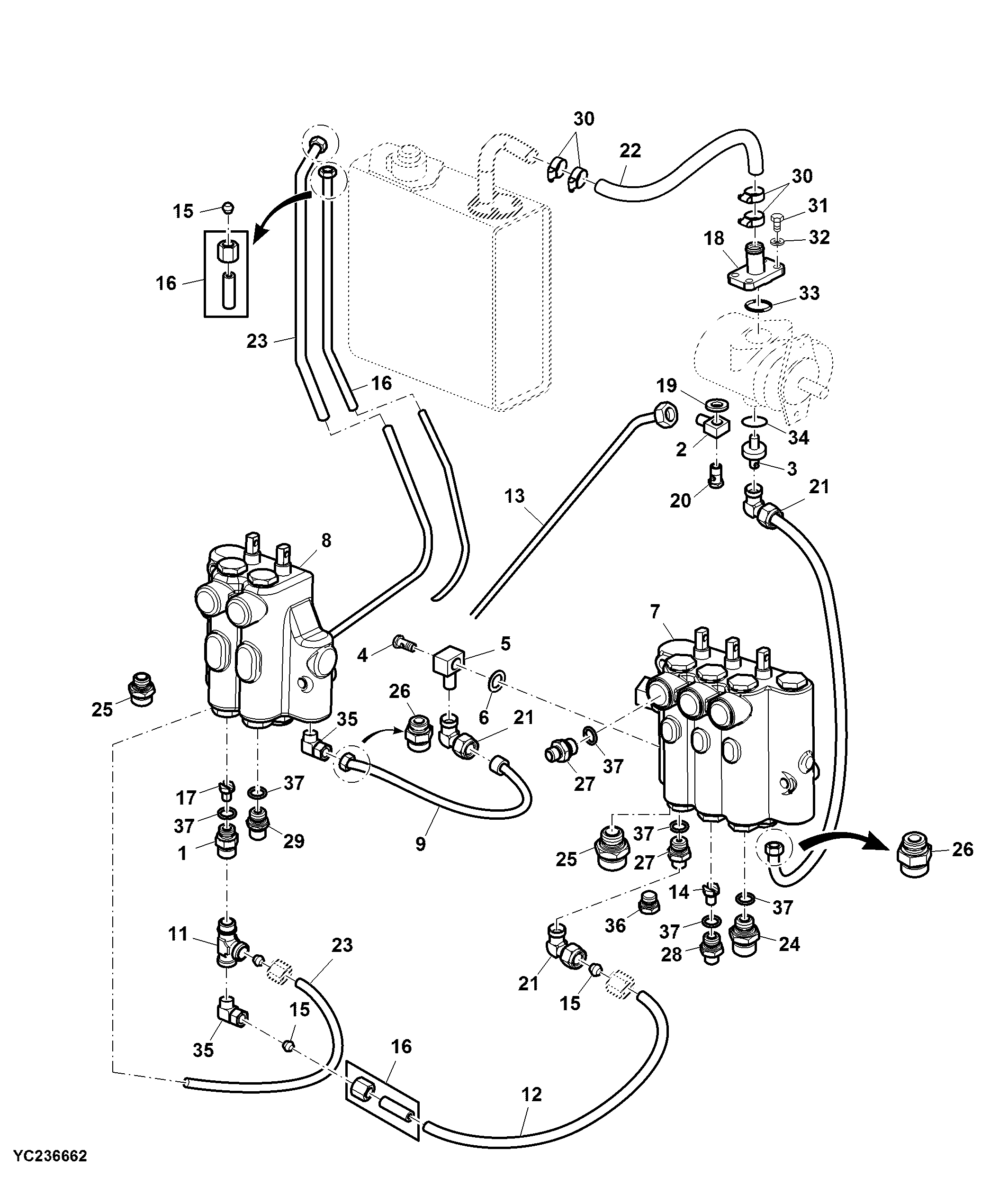

Hydraulic Lines, Reservoir, Pump and Control Valve
