Cylinder Reduction Drive Gear (For C6HA Corn Picker Attachment)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	YC14402	1	Bushing	-
2	AYC16103	1	Seal	-
3	19M10107	4	Screw	M6 X 25
4	12M7099	4	Lock Washer	6 mm
5	YC12045	1	Cover	-
6	YC14423	1	Gasket	-
7	AH20868	1	Breather	-
8	YC14438	1	Snap Ring	-
9	AYC18065	1	Ball Bearing	-
10	YC10162	1	Bushing	-
11	Z13035	2	Driver	-
12	YC14437	1	Snap Ring	-
13	AYC18064	1	Ball Bearing	-
14	Z38133	2	Snap Ring	-
15	AH86809	2	NEEDLE BEARING	-
16	AYC10731	1	Ring Gear	INCLUDES (3) 44M7146
17	44M7146	5	Dowel Pin	6 X 14 mm
18	AYC11480	1	Seal	-
19	YC14426	2	Fitting Plug	-
20	YC14891	2	Lock Washer	-
21	19M7163	6	Cap Screw	M8 X 25
22	YC12044	1	Hub	-
23	12M7013	1	LOCK WASHER	10.200 mm
24	YC14422	1	Gasket	-
25	14M7140	2	Nut	M10
26	YC14408	1	Hub	-
27	AYC11463	1	Rasp-Bar Cylinder	-
27	AYC12285	1	Seal	-
27	YC14409	1	Splined Coupling	-
27	YC14403	1	Locking Collar	-
28	19M7347	1	Cap Screw	M10 X 120
29	YC11461	1	Washer	-
30	YC14439	1	Snap Ring	-
31	AYC18066	1	Ball Bearing	-
32	YC10161	1	Snap Ring	-
33	YC12043	1	Housing	-
34	YC14424	3	Pin	-
35	AYC18083	3	Needle Bearing	-
36	Z37517	3	Pinion	-
37	YC19795	1	Gear	-
38	19M7270	6	Cap Screw	M8 X 65
39	12M7008	1	LOCK WASHER	8 mm
40	19M7167	1	Cap Screw	M10 X 25
41	YC13009	1	Sealing Washer	-
42	AYC11481	1	Seal	-
43	AYC11482	1	Seal	-
44	YC12042	1	Hub	-
45	Z37515	1	Chain Sprocket	-

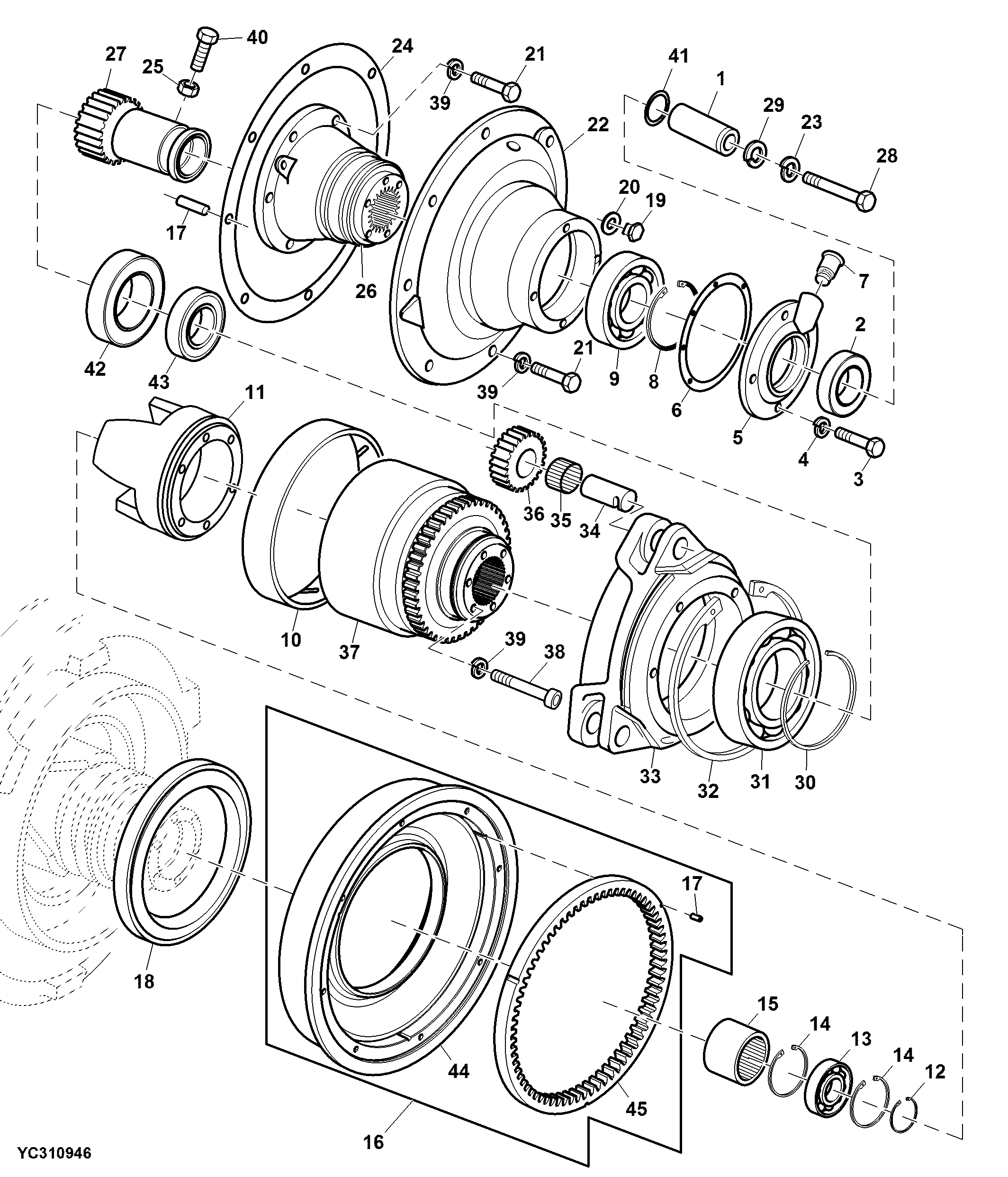

Cylinder Reduction Drive Gear (For C6HA Corn Picker Attachment)

Нет текстового описания
