Steering Column Kit, AutoTrac™ Universal 300

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155227	1	Cover	Steering Wheel
2	L100436	2	Washer	-
3	PFP19123	1	Knob	SUB FOR APPL PF12174
4	PF12236	2	Clamp	-
5	T17148	1	Lock Washer	-
6	RE258807	1	Tie Band	-
7	PFP17707	1	Cover	-
8	PF12006	1	Wear Ring	-
9	PFA11841	1	Motor Kit	-
10	M85517	1	Grommet	-
11	GX26021	8	Socket Head Screw	-
12	PFA11385	1	Cover	-
13	57M8021	1	Electrical Connector Assy	Internal Resume
13	57M8165	2	Elec. Connector Terminal	-
13	57M8022	1	Elec.Connect Locking Device	-
14	57M8021	1	Electrical Connector Assy	-
14	57M8022	1	Elec.Connect Locking Device	-
14	Z78008	2	Elec. Connector Seal	-
15	PFA11989	1	Harness Kit	-
16	57M9800	1	Elec. Connector Housing	Motor C01
16	57M9809	12	Elec. Connector Terminal	-
17	-	1	Part 22	Ground C04
18	57M14637	1	Elec. Connector Housing	Main C02
18	57M9809	18	Elec. Connector Terminal	-
19	57M8023	1	Elec. Connector Housing	Internal Resume Switch C03
19	R78066	2	Elec. Connector Terminal	-
19	57M7621	1	Elec.Connect Locking Device	-
19	57M9717	1	Elec.Connect Locking Device	-
20	PFP17709	1	Roller Chain	L = 54
21	B3690R	1	O-Ring	-
22	21M7577	2	Socket Head Screw	M6 X 16

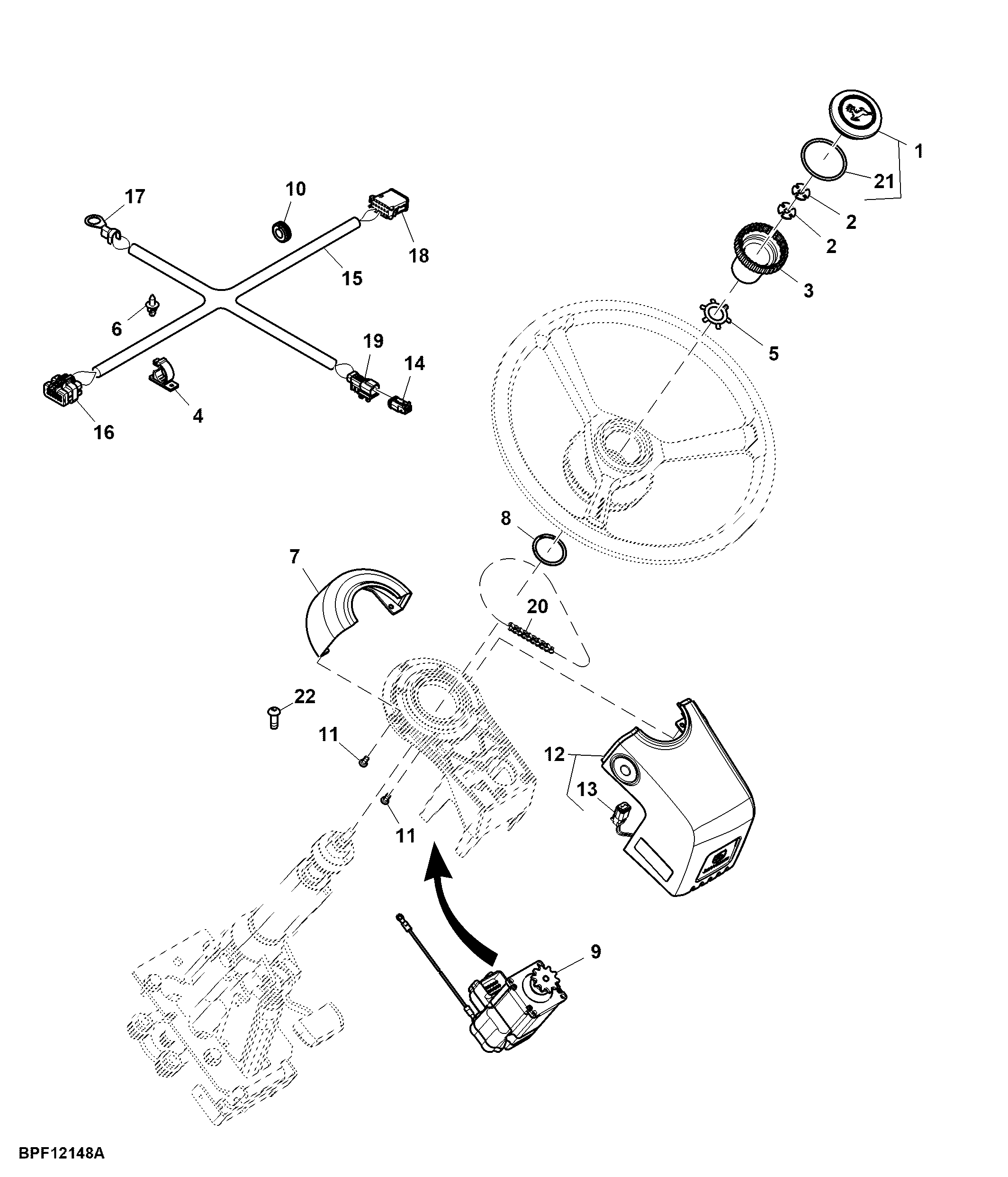

Steering Column Kit, AutoTrac™ Universal 300

Нет текстового описания
