Mobile RTK Harness for Integrated GreenStar™ Machines

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	ORDER BPF11506
2	57M7390	1	Elec. Connector Housing	Connector Convenience Outlet (Male)
2	57M8950	3	Elec. Connector Terminal	-
2	57M9164	1	Elec. Connector Accessory	-
3	57M7391	1	Elec. Connector Seal	-
4	AE44929	1	Electrical Connector Assy	Connector Convenience Outlet (Female)
4	57M10671	3	Elec. Connector Terminal	-
4	57M9164	1	Elec. Connector Accessory	-
5	R104570	1	Electrical Connector Assy	Fuse, 10 A (Battery)
5	R104933	2	Elec. Connector Terminal	-
6	57M8487	2	Electrical Connector Cap	-
7	R104933	2	Elec. Connector Terminal	-
7	R104570	1	Electrical Connector Assy	Fuse, 10 A (Switched)
8	57M8017	1	Elec. Connector Housing	Female Connector to ATC Harness 4-Pin CAN
8	57M8164	4	Elec. Connector Terminal	-
8	57M7619	1	Elec.Connect Locking Device	-
9	57M8015	1	Electrical Connector Assy	Male Connector To Terminator/ISO connection
9	57M8165	4	Elec. Connector Terminal	-
9	57M8016	1	Elec.Connect Locking Device	-
10	57M10615	1	Elec. Connector Housing	MTG Connector
10	57M10333	38	Elec. Connector Cavity Plug	-
10	57M10488	2	Elec. Connector Terminal	-
10	57M10334	5	Elec. Connector Cavity Plug	-
10	57M10613	1	Elec. Connector Housing	-

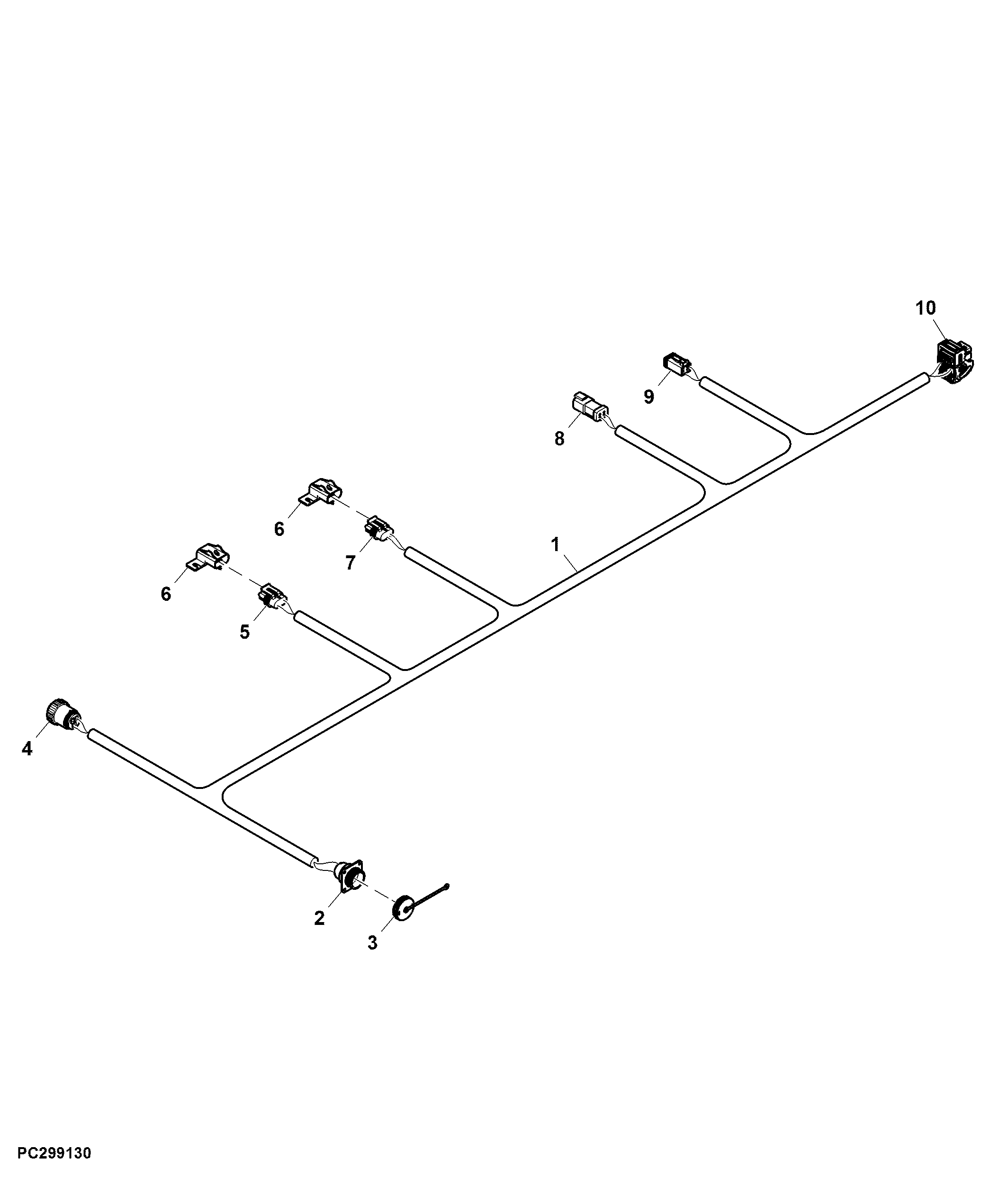

Mobile RTK Harness for Integrated GreenStar™ Machines

Нет текстового описания
