Открытый узел

Hardware Kit, ATC 260

Hardware Kit, ATC 260

Hardware Kit, ATC 260

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

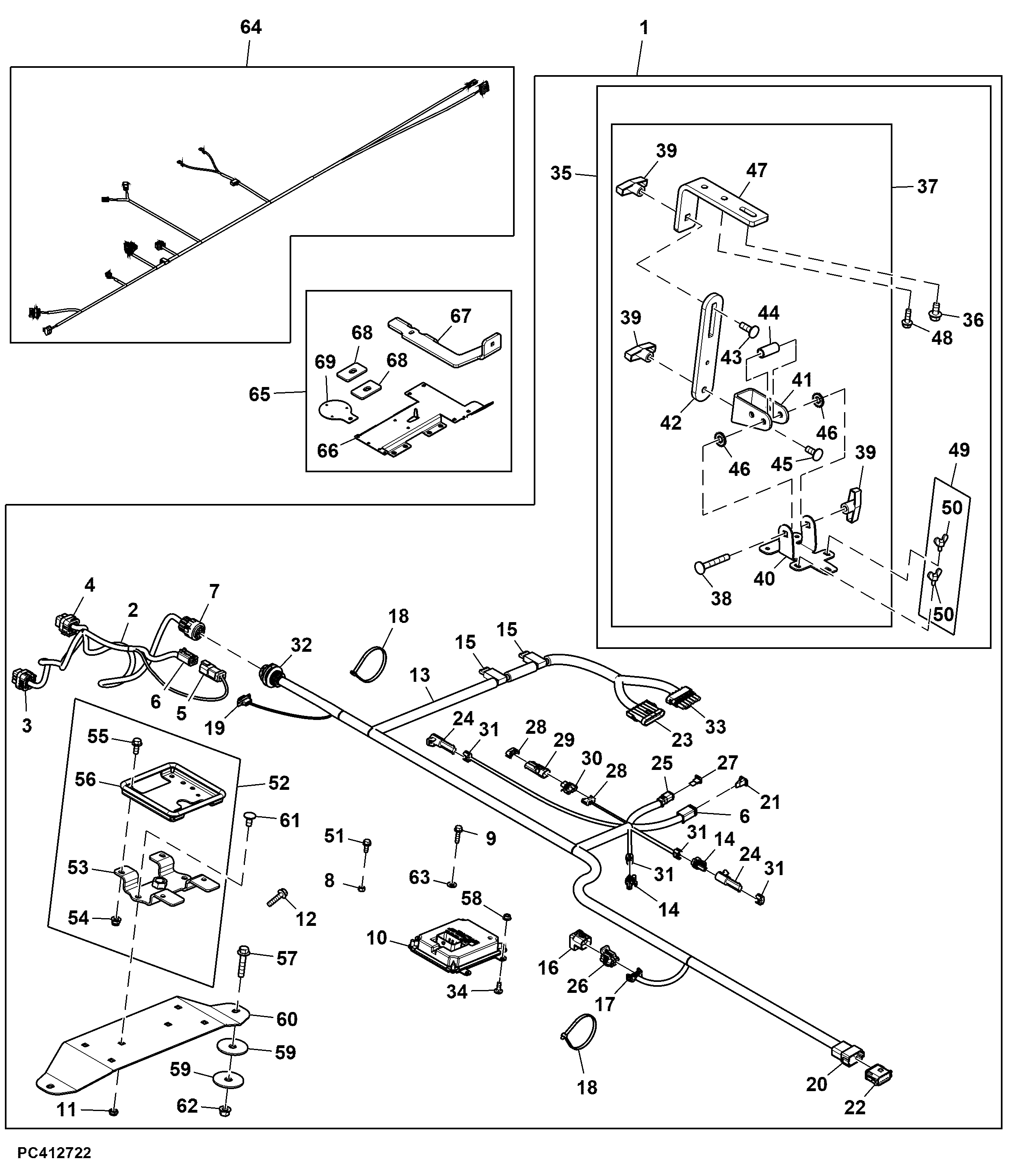

Hardware Kit, ATC 260

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BPF12319	1	Hardware Kit	-
2	BPF11527	1	Monitor Wiring Harness	-
3	57M8606	2	Elec. Connector Housing	-
4	57M11705	2	Elec. Connector Housing	-
5	57M8017	2	Elec. Connector Housing	-
6	57M8015	3	Electrical Connector Assy	-
7	57M12743	2	Elec. Connector Housing	-
8	14M7272	3	Nut	M6
9	19M7863	4	Screw	M6 X 25
10	PFA12703	1	Electronic Control Unit	-
11	M47031	2	Lock Nut	-
12	19M7897	3	Screw	M8 X 35
13	PF80802	1	Wiring Harness	-
14	57M7294	2	Elec. Connector Housing	-
15	57M7121	2	Fuse	-
16	RE207311	1	Electronic Control Unit	-
17	57M7291	1	Electrical Connector Assy	-
18	R105388	2	Tie Band	-
19	57M13052	1	Elec. Connector Housing	-
20	57M7633	1	Electrical Connector Assy	-
21	57M8016	1	Elec.Connect Locking Device	-
22	57M8008	1	Electrical Connector Assy	-
23	R78056	1	Electrical Connector Assy	-
24	57M7293	2	Elec. Connector Housing	-
25	57M8021	1	Electrical Connector Assy	-
26	57M7260	1	Elec. Connector Housing	-
27	57M8022	1	Elec.Connect Locking Device	-
28	57M9712	2	Elec. Connector Accessory	-
29	57M7256	1	Elec. Connector Housing	-
30	57M7254	1	Elec. Connector Housing	-
31	57M7295	4	Elec.Connect Locking Device	-
32	57M9231	1	Elec. Connector Housing	-
33	RE12366	1	Electrical Connector Assy	-
34	03M7221	4	Bolt	M6 X 16
35	BPF12124	1	Hardware Kit	-
36	19M7784	2	Screw	M10 X 20
37	RE594355	1	Bracket	-
38	03M7233	1	Bolt	M10 X 70
39	N209668	3	Knob	-
40	R569654	1	Bracket	-
41	R244202	1	Bracket	-
42	R255897	1	Bracket	-
43	03M7192	1	Bolt	M10 X 30
44	T143534	1	Spacer	-
45	03M7191	1	Bolt	M10 X 25
46	N209692	2	Lock Washer	-
47	R255898	1	Angle	-
48	19M7867	2	Screw	M8 X 25
49	PF80912	2	Fastener Item	-
50	21M1689	2	Wing Screw	M6 X 12
51	19M9831	3	Screw	M6 X 16
52	PF90781	1	Bracket Kit	-
53	PF81294	1	Semi-Finished Weldment	-
54	14M7396	4	Lock Nut	M8
55	19M7866	4	Screw	M8 X 20
56	PF81190	1	Bracket Kit	-
57	19M7806	2	Screw	M10 X 50
58	14M7303	4	Flange Nut	M6
59	24H1353	4	Washer	9/16" X 2-1/4" X 0.134"
60	PF13183	1	Bracket	-
61	03H1765	2	Bolt	3/8" X 3/4"
62	14M7518	2	Flange Nut	M10
63	24M7055	4	Washer	8.400 X 16 X 1.600 mm
64	PFA12070	1	Wiring Harness	-
65	-	1	Part 65	INCLUDES PFP20995, PFP20996, PFP20997 AND PFP20998
66	PFP20995	1	Bracket	Controller Bracket
67	PFP20996	1	Bracket	Display Bracket
68	PFP20997	2	Bracket	Reinforcement Washer
69	PFP20998	1	Bracket	Garmin Bracket
70	R49921	3	Clamp	Not Illustrated; USE WITH BPF12319
