Position Receiver (Quick Coupler Conversion)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PF80385	1	Position Receiver	(SUB FOR PF80314 ) (SUB PF80860)
2	PF10134	1	Cover	-
3	PF10135	1	Cover	-
4	21M7267	6	Screw	(A) M6 X 20
5	PF10240	6	Washer	(A)
6	19M7865	2	Screw	(A) M8 X 16
7	14M7298	2	Flange Nut	(A) M8
9	PF10758	1	Bracket	-
10	21M7348	1	Screw	M5 X 22
11	14M7360	1	Lock Nut	M5
12	PF80364	1	Wiring Harness	(Quick Connect)
13	B32209	4	Washer	-
14	AH171496	1	Wiring Harness	(Quick Connect Pigtail)
15	PF90111	1	Quick Coupler	-
16	57M7281	1	Elec.Connect Locking Device	-
17	57M7258	1	Elec. Connector Seal	-
18	R104846	1	Elec. Connector Terminal	-
19	57M7261	1	Elec. Connector Housing	-
20	57M7262	1	Elec. Connector Housing	-
21	57M9228	1	Elec. Connector Housing	-
21	57M7681	1	Elec. Connector Terminal	-
22	R78069	1	Elec. Connector Cavity Plug	-
23	57M7634	1	Electrical Connector Assy	-
24	57M7681	1	Elec. Connector Terminal	-
25	57M7265	1	Elec. Connector Housing	-
26	R104919	1	Elec. Connector Terminal	-
27	R78063	1	Elec. Connector Seal	-
..	PF80016	1	Hardware Kit	INCL (A)
8A	PF80353	1	Quick Coupler	(SUB PF80623)
8B	PF80623	1	Bracket Kit	-

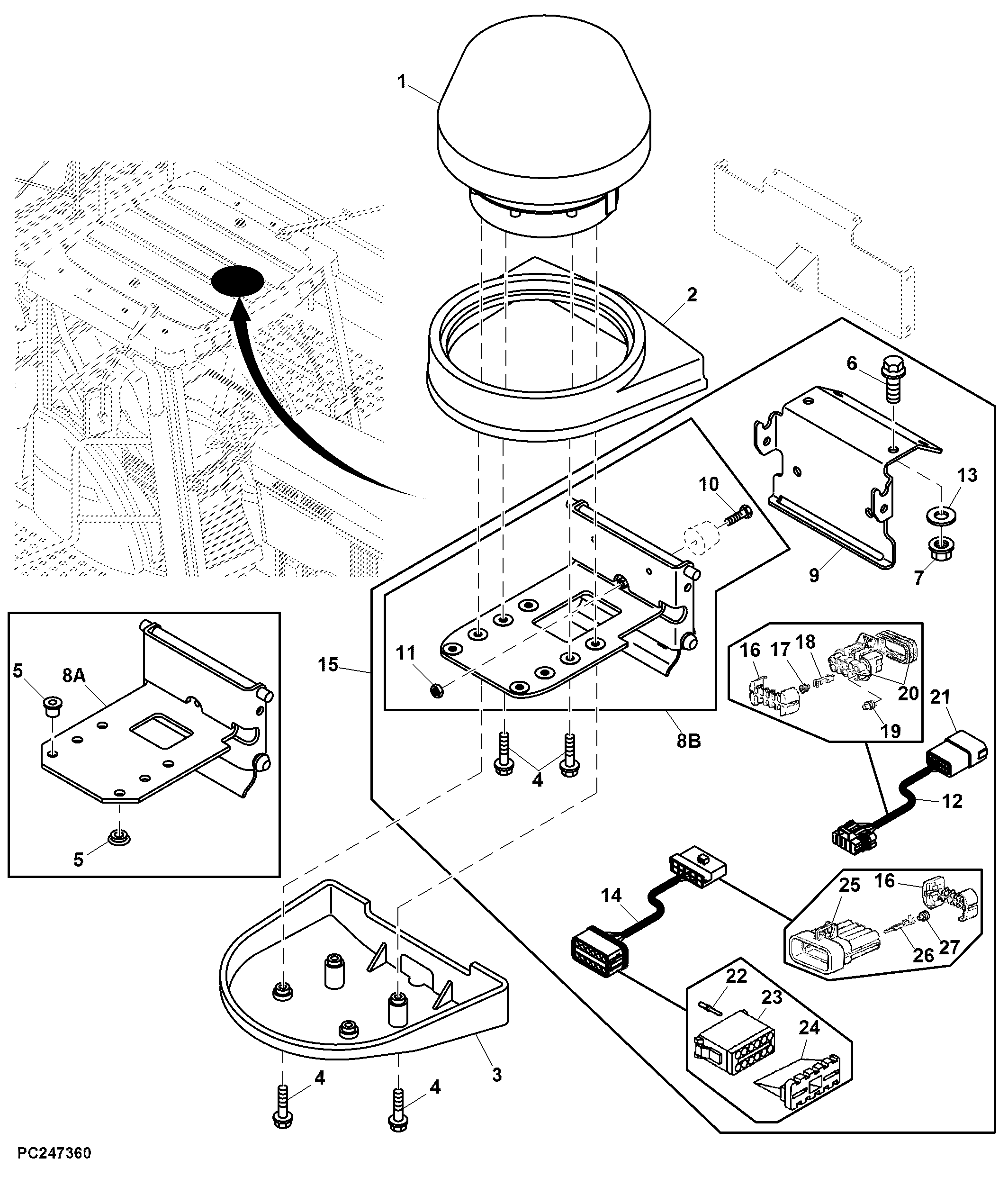

Position Receiver (Quick Coupler Conversion)
