Main Universal AutoTrac™ Harness, All-Weather (2 / 2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PFA12401	1	Wiring Harness	SUB FOR PFA11822
2	57M7294	1	Elec. Connector Housing	Main C01
2	57M9219	1	Elec. Connector Seal	-
2	57M7297	1	Elec. Connector Terminal	-
2	57M10432	1	Elec.Connect Locking Device	-
2	57M7295	1	Elec.Connect Locking Device	-
3	RE12363	1	Electrical Connector Assy	Seat Switch (NA) C03
3	R78064	2	Elec. Connector Cavity Plug	-
3	57M10924	2	Elec. Connector Terminal	-
3	57M9219	2	Elec. Connector Seal	-
4	R78053	1	Electrical Connector Assy	Dust Cap
5	57M7985	1	Electrical Connector Assy	Seat Switch (EU) C05
5	57M7259	2	Elec. Connector Seal	-
5	57M9712	2	Elec. Connector Accessory	-
5	57M7252	2	Elec. Connector Terminal	-
5	57M9215	2	Elec. Connector Seal	-
6	57M7328	1	Elec. Connector Housing	Dust Cap
7	57M9219	2	Elec. Connector Seal	-
7	R78064	2	Elec. Connector Cavity Plug	-
7	R78053	1	Electrical Connector Assy	Seat Switch (NA) C02
7	57M7251	2	Elec. Connector Terminal	-
8	RE12363	1	Electrical Connector Assy	Dust Cap
9	57M7328	1	Elec. Connector Housing	Seat Switch (EU) C04
9	57M7259	2	Elec. Connector Seal	-
9	57M9712	2	Elec. Connector Accessory	-
9	R104846	2	Elec. Connector Terminal	-
9	57M9215	2	Elec. Connector Seal	-
10	57M7985	1	Electrical Connector Assy	Dust Cap
11	PFP18564	1	Switch	4 wire, w/o LED USE WITH PFA11929
12	RE12365	1	Electrical Connector Assy	-
12	R78060	4	Elec. Connector Terminal	-
12	-	4	Part 32	-
13	PF12351	1	Housing	-
14	PF12322	1	Housing	-
15	PF11658	4	Screw	-
16	37M7109	2	Screw	-

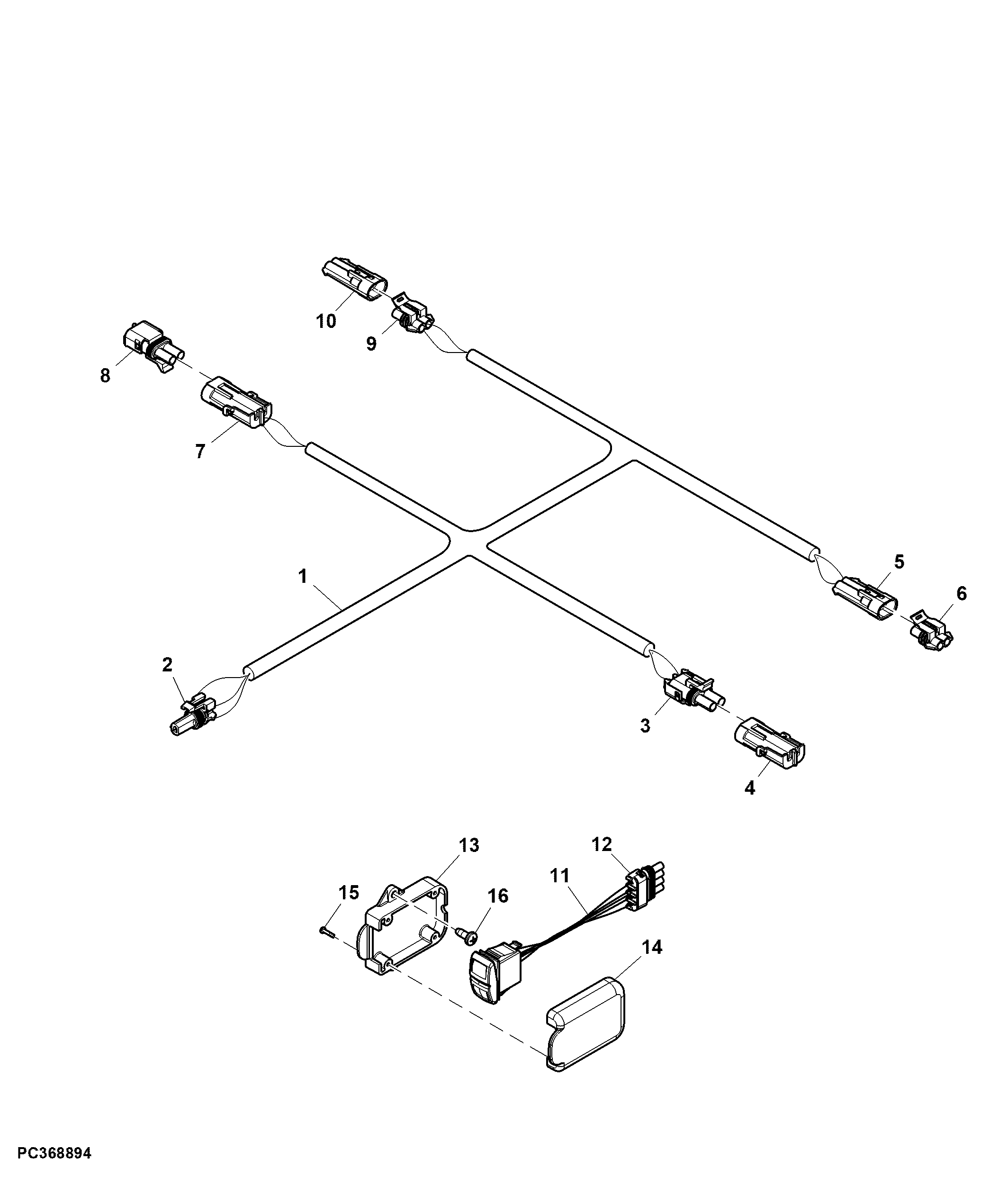

Main Universal AutoTrac™ Harness, All-Weather (2 / 2)
