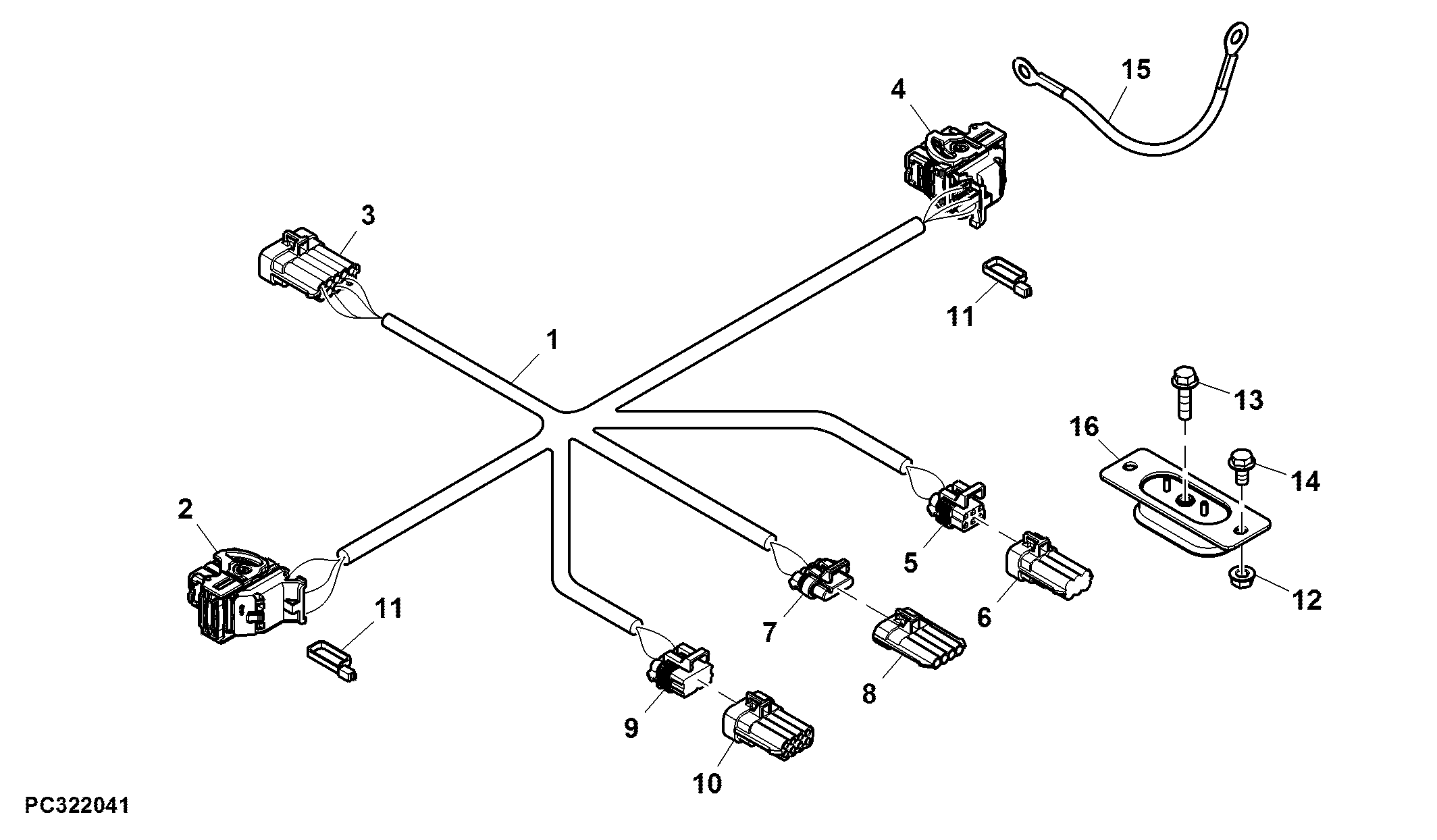

JDLink™ OEM Engine Harness Kit for 10 Pin JDLink™ Connector

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE322082	1	Cab Wiring Harness	MWG W/ Satellite Option
2	57M10615	1	Elec. Connector Housing	Satellite Modules
2	57M10613	1	Elec. Connector Housing	-
2	57M10333	37	Elec. Connector Cavity Plug	-
2	57M10334	5	Elec. Connector Cavity Plug	-
3	57M7265	1	Elec. Connector Housing	Cab Harness
3	57M8907	1	Elec.Connect Locking Device	-
3	57M7259	2	Elec. Connector Seal	-
4	57M10614	1	Elec. Connector Housing	MWG Controller
4	57M10613	1	Elec. Connector Housing	-
4	57M10333	21	Elec. Connector Cavity Plug	-
4	57M10334	2	Elec. Connector Cavity Plug	-
5	57M7260	1	Elec. Connector Housing	GreenStar™ RS232
5	57M7291	1	Electrical Connector Assy	-
5	57M7259	1	Elec. Connector Seal	-
6	57M7259	6	Elec. Connector Seal	-
6	57M7263	1	Elec. Connector Housing	Dust Cap
6	57M7291	1	Electrical Connector Assy	-
7	57M7840	1	Elec. Connector Housing	Analog Inputs
7	57M7469	1	Electrical Connector Assy	-
8	57M7839	1	Electrical Connector Assy	Dust Cap
8	57M7469	1	Electrical Connector Assy	-
8	57M7259	4	Elec. Connector Seal	-
9	57M7259	1	Elec. Connector Seal	-
9	57M7296	1	Elec. Connector Accessory	-
9	57M7261	1	Elec. Connector Housing	To M2M Module
10	57M7264	1	Elec. Connector Housing	Dust Cap
10	57M7283	1	Elec.Connect Locking Device	-
10	57M7259	8	Elec. Connector Seal	-
11	R44302	2	Tie Band	-
12	14M7298	4	Flange Nut	M8
13	19M7868	2	Screw	M8 X 30
14	19M8163	4	Bolt	M8 X 16
15	AM134264	1	Cable	Ground
16	RE527581	2	Isolator	-

JDLink™ OEM Engine Harness Kit for 10 Pin JDLink™ Connector
