Открытый узел

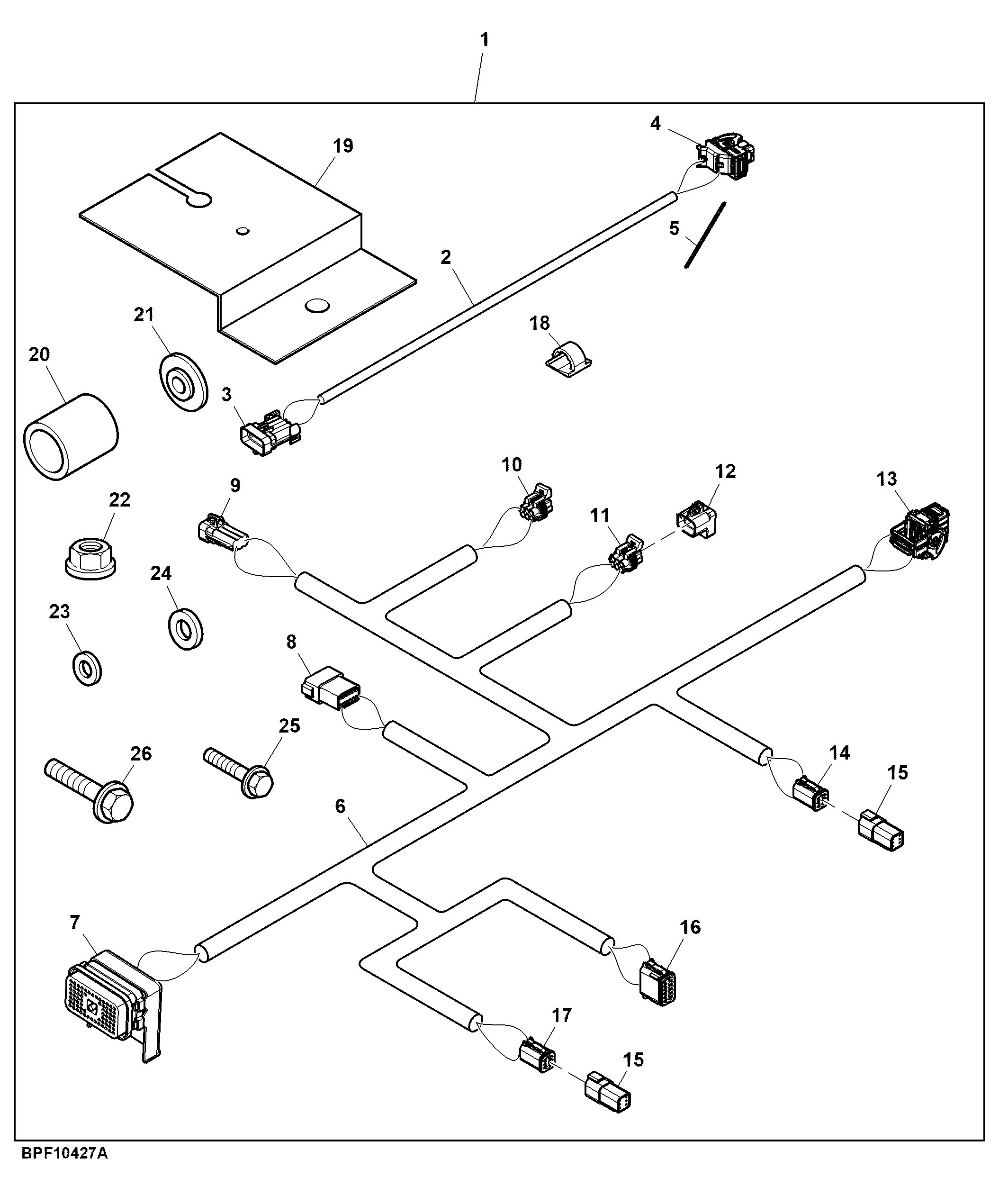

JDLink™ Cotton Picker Embedded Kit, 7760, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BPF10427	1	Hardware Kit	-
2	AN403024	1	Cab Wiring Harness	-
3	57M7265	1	Elec. Connector Housing	Cab Harness 01
3	57M7281	1	Elec.Connect Locking Device	-
4	57M10614	1	Elec. Connector Housing	Controller 02
4	57M10613	1	Elec. Connector Housing	-
5	Z36392	1	Tie Band	-
6	AN373914	1	Wiring Harness	-
7	-	1	Part 9	GTT Controller C01
7	57M10181	19	Elec. Connector Terminal	Cavity 1, 2, 3, 12 to 15, 23, 24, 25, 32, 33, 40 to 43, 47, 48, 49
7	57M9814	51	Elec. Connector Cavity Plug	Cavity 4 to 11, 16 to 22, 26 to 31, 34 to 39, 44, 45, 46, 50 to 70
7	57M9722	1	Elec. Connector Housing	-
8	57M8164	8	Elec. Connector Terminal	Cavity 1, 3, 5 to 10
8	57M7682	1	Elec.Connect Locking Device	-
8	N282069	2	Elec. Connector Terminal	Cavity 2, 4
8	57M7633	1	Electrical Connector Assy	Inline 1 C09
9	57M7263	1	Elec. Connector Housing	VEH CAN C03
9	57M9215	4	Elec. Connector Seal	Cavity B, D, E, F
9	57M7252	4	Elec. Connector Terminal	Cavity B, D, E, F
9	57M7291	1	Electrical Connector Assy	-
10	57M7260	1	Elec. Connector Housing	IMP CAN C04
10	57M9215	5	Elec. Connector Seal	Cavity A to E
10	R104846	5	Elec. Connector Terminal	Cavity A to E
10	57M7291	1	Electrical Connector Assy	-
11	57M7291	1	Electrical Connector Assy	-
11	R104846	4	Elec. Connector Terminal	Cavity B, D, E, F
11	57M7260	1	Elec. Connector Housing	CAN Terminal C05
11	57M9215	4	Elec. Connector Seal	Cavity B, D, E, F
12	RE207311	1	Electronic Control Unit	-
13	57M8527	1	Elec. Connector Housing	MIG2 Controller C08
13	57M8770	18	Elec. Connector Terminal	Cavity A1, A2, A4, B1, B2, B4 to D2, F1, G1, G2, H1, H2, J3
13	57M9852	4	Elec. Connector Terminal	Cavity L1, M1, M2, M3
13	57M8529	1	Electrical Connector Cap	-
14	57M8012	1	Electrical Connector Assy	MIG2 Diagnostic C07
14	57M8165	5	Elec. Connector Terminal	Cavity 1 to 5
14	57M8013	1	Elec.Connect Locking Device	-
14	57M7678	1	Elec. Connector Terminal	-
15	57M7629	2	Elec. Connector Housing	Cap
16	57M7681	1	Elec. Connector Terminal	-
16	57M7546	10	Elec. Connector Terminal	Cavity 1 to 10
16	57M7634	1	Electrical Connector Assy	Inline 1 C10
17	57M8012	1	Electrical Connector Assy	Diagnostic, GTT C02
17	57M7546	5	Elec. Connector Terminal	Cavity 1 to 5
17	57M8013	1	Elec.Connect Locking Device	-
17	57M7678	1	Elec. Connector Terminal	-
18	R53410	4	Clip	-
19	N401350	1	Bracket	-
20	N373748	1	Bushing	-
21	N373521	1	Bushing	-
22	E63525	4	Nut	-
23	24H1471	1	Washer	1-9/64" X 1-3/4" X 0.134"
24	24H1351	1	Washer	9/16" X 1-1/2" X 0.164"
25	19M8306	1	Screw	M12 X 50
26	19M7979	4	Screw	M8 X 55

JDLink™ Cotton Picker Embedded Kit, 7760, Attachment
