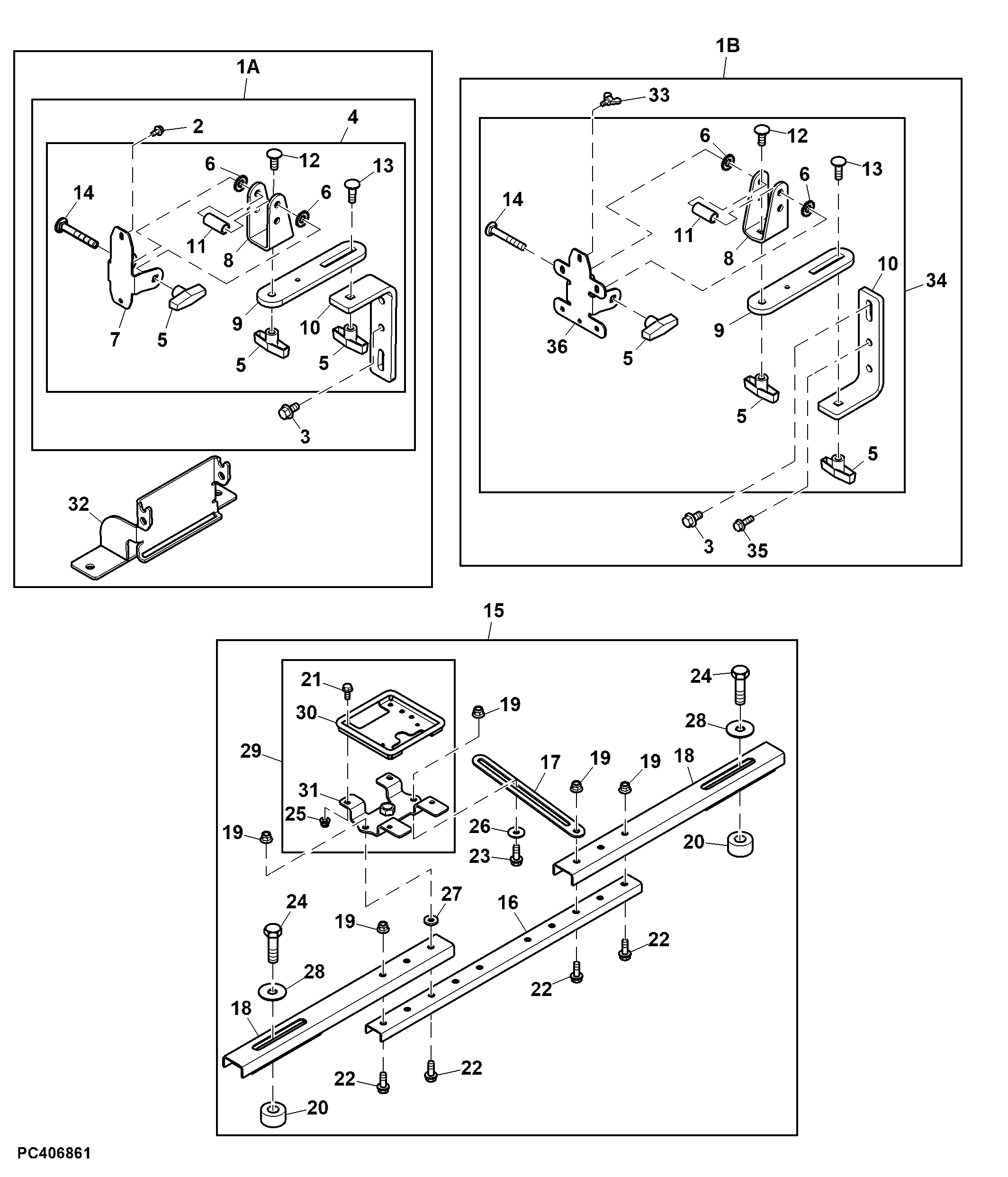

GreenStar™ Ready Universal Guidance Kit, Upgradable Models (1 of 2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	19M7774	2	Screw	M6 X 12
3	19M7784	2	Screw	M10 X 20
4	RE255894	1	Bracket	-
5	N209668	3	Knob	-
6	N209692	2	Lock Washer	-
7	R237730	1	Bracket	Monitor Mount
8	R244202	1	Bracket	Monitor Mount
9	R255897	1	Bracket	GreenStar™ Display
10	R255898	1	Angle	-
11	T143534	1	Spacer	-
12	03M7191	1	Bolt	M10 X 25
13	03M7192	1	Bolt	M10 X 30
14	03M7233	1	Bolt	M10 X 70
15	BPF11356	1	Hardware Kit	SUB FOR PF90217 OR PF80503
16	PF11098	1	Bracket	-
17	PF12400	1	Strap	-
18	PF80502	2	Support	-
19	14M7400	5	Lock Nut	M10
20	H134114	2	Spacer	-
21	19M7866	4	Screw	M8 X 20
22	19M7785	4	Screw	M10 X 25
23	19M7786	1	Screw	M10 X 30
24	19M7819	2	Screw	M12 X 90
24	19H2641	2	Cap Screw	5/8" X 3-1/4"
24	19M7732	2	Cap Screw	M16 X 130
24	19M7845	2	Screw	M16 X 90
24	19M7784	2	Screw	M10 X 20
25	14M7396	4	Lock Nut	M8
26	24M7178	1	Washer	10.500 X 30 X 2.500 mm
27	24M7213	1	Washer	10.500 X 25 X 4 mm
28	24M7315	2	Washer	17 X 50 X 3 mm
29	PF90781	1	Bracket Kit	RTK Base Conversion
30	PF81190	1	Bracket Kit	Roof Rack
31	PF81294	1	Semi-Finished Weldment	-
32	RE175036	1	Bracket	Included in PF90217; Quick Coupler Assembly
33	21M1689	4	Wing Screw	M6 X 12
34	RE558242	1	Bracket	-
35	19M7867	2	Screw	M8 X 25
36	R538574	1	Bracket	ORDER PFP19937
36	PFP19937	1	Bracket	-
1A	PF90385	1	Hardware Kit	Display ORDER BPF11358
1B	BPF12124	1	Hardware Kit	-
1B	BPF11358	1	Hardware Kit	ORDER BPF12124

GreenStar™ Ready Universal Guidance Kit, Upgradable Models (1 of 2)
