Открытый узел

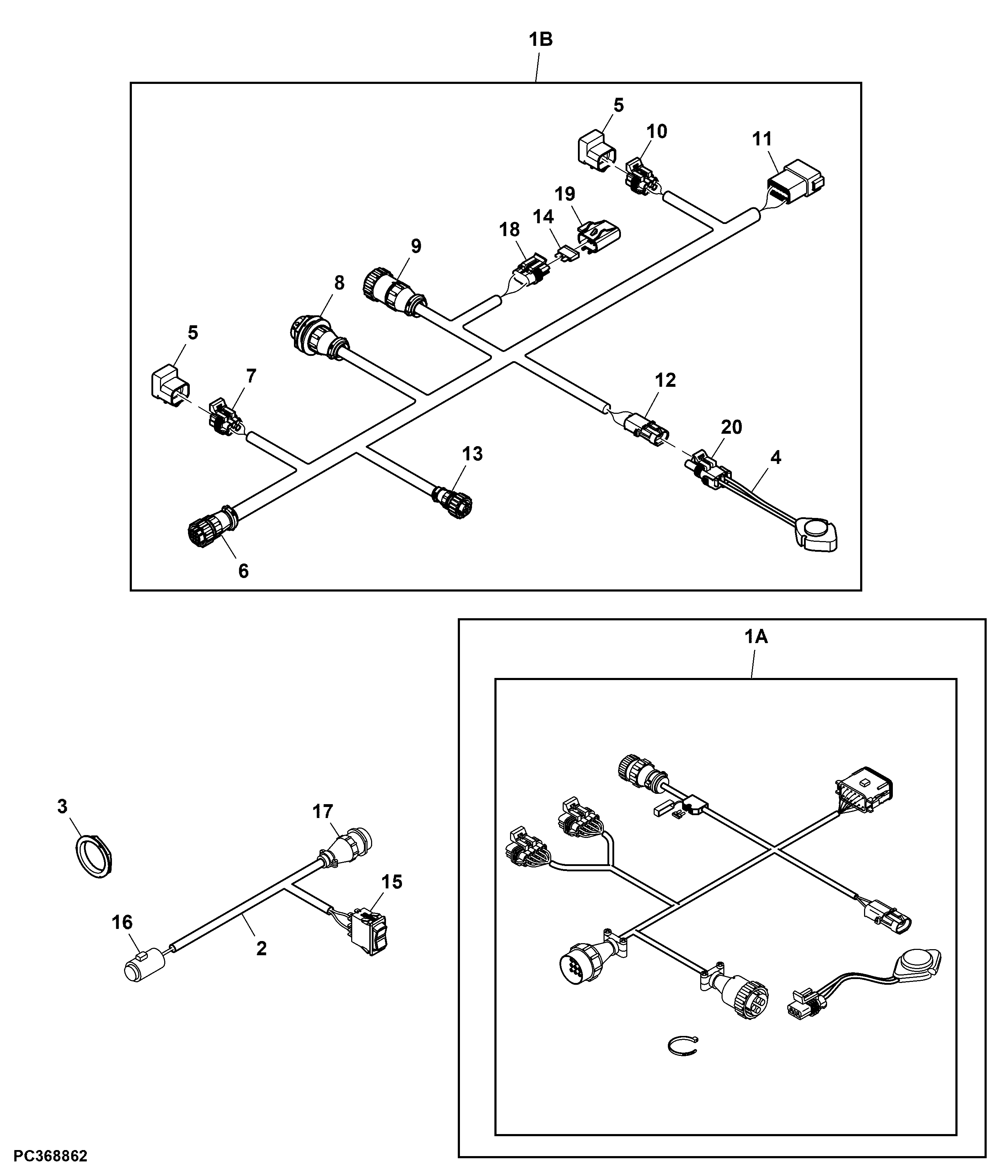

GreenStar™ Ready Guidance Kit, Mobile Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	PF80413	1	Wiring Harness	Position Receiver to DB9
3	PFP15160	1	Nut	-
4	PFA10531	1	Diode Wiring Harness	-
5	RE207311	2	Electronic Control Unit	-
6	H118422	1	Elec. Connector Terminal	AutoTrac™ Universal C01
6	57M9550	1	Electrical Connector Assy	-
7	57M7260	1	Elec. Connector Housing	CAN Terminator C08
7	57M7291	1	Electrical Connector Assy	-
7	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
7	57M7258	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
8	57M9164	1	Elec. Connector Accessory	Cornerpost Bulkhead C02
9	AE44929	1	Electrical Connector Assy	Convenience Outlet C04
9	57M9164	1	Elec. Connector Accessory	-
10	57M7258	4	Elec. Connector Seal	Cavity B, D, E, F
10	R104846	4	Elec. Connector Terminal	Cavity B, D, E, F
10	57M7291	1	Electrical Connector Assy	-
10	57M7260	1	Elec. Connector Housing	CAN Terminator C09
11	57M7682	1	Elec.Connect Locking Device	-
11	N282069	5	Elec. Connector Terminal	Cavity 4, 6, 7, 9, 12
11	57M8786	1	Elec. Connector Housing	StarFire™ C05
12	57M7292	2	Elec. Connector Seal	Cavity A, B
12	57M7251	2	Elec. Connector Terminal	Cavity A, B
12	R78053	1	Electrical Connector Assy	C06
13	AE44392	1	Electrical Connector Assy	C07
14	-	1	Part 27	10 A
15	-	1	Part 28	On / Off
16	-	1	Part 29	Cigarette Lighter
17	57M8947	1	Elec. Connector Accessory	-
17	57M8950	3	Elec. Connector Terminal	-
17	57M8729	1	Elec. Connector Housing	Convenience Outlet
18	R104570	1	Electrical Connector Assy	Fuse Holder C10
19	57M8487	1	Electrical Connector Cap	-
20	R78060	2	Elec. Connector Terminal	-
20	57M9216	2	Elec. Connector Seal	-
20	RE12363	1	Electrical Connector Assy	-
1A	PF80939	1	Wiring Harness	Guidance
1B	PFA10288	1	Wiring Harness	GreenStar™ Mobile Guidance

GreenStar™ Ready Guidance Kit, Mobile Harness

Нет текстового описания
