Chassis Wiring Harness, Dry Box Spreader (3 of 3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK31195	1	Wiring Harness	-
2	57M7254	1	Elec. Connector Housing	Y105 Boom Fold / Unfold Enable
2	57M10770	2	Elec. Connector Terminal	Cavity A, B
2	57M9883	2	Elec. Connector Cable Seal	Cavity A, B
2	57M9712	1	Elec. Connector Accessory	-
3	57M8021	1	Electrical Connector Assy	Y106 Boom Latch / Un-latch Enable
3	R78065	2	Elec. Connector Terminal	Cavity 1, 2
3	57M8022	1	Elec.Connect Locking Device	-
4	57M8021	1	Electrical Connector Assy	Y092 Bin 2 Conveyor Proportional Valve
4	R78065	2	Elec. Connector Terminal	Cavity 1, 2
4	57M8022	1	Elec.Connect Locking Device	-
4	57M11230	1	Elec. Connector Accessory	-
5	57M8021	1	Electrical Connector Assy	Y091 Bin 1 Conveyor Proportional Valve
5	57M8022	1	Elec.Connect Locking Device	-
5	R78065	2	Elec. Connector Terminal	Cavity 1, 2
6	57M7796	1	Elec. Connector Housing	B089 Conveyor Hydraulic Pressure Sensor
6	57M10925	3	Elec. Connector Terminal	Cavity A, B, C
7	57M12967	1	Elec. Connector Housing	Chassis System 2 Inline Harness
7	57M7536	1	Elec. Connector Terminal	Cavity R
7	57M7614	2	Elec. Connector Terminal	Cavity S, U
7	57M8569	1	Elec. Connector Terminal	Cavity X
7	57M11899	1	Elec. Connector Accessory	-
8	57M7291	1	Electrical Connector Assy	-
8	57M9883	6	Elec. Connector Cable Seal	Cavity A, B, C, D, E, F
8	57M7494	4	Elec. Connector Terminal	Cavity B, D, E, F
8	57M7260	1	Elec. Connector Housing	A918 CAN Implement Active Terminator
8	57M10770	2	Elec. Connector Terminal	Cavity A, C
9	57M11748	1	Elec. Connector Housing	Chassis System 1 Inline Harness
9	R78065	11	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 9, 10, 11, 12, 13, 14, 15
9	57M11899	1	Elec. Connector Accessory	-
10	57M7263	1	Elec. Connector Housing	CAN Implement Chassis Interconnect
10	57M7252	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
10	57M9883	6	Elec. Connector Cable Seal	Cavity A, B, C, D, E, F
10	57M7291	1	Electrical Connector Assy	-
10	57M10234	1	Clip	-
11	AN209168	1	Swivel	-
12	57M10617	6	Elec. Connector Housing	Cavity L2, L4, M1, M2, M3, M4
12	57M10613	1	Elec. Connector Housing	-
12	57M10330	20	Elec. Connector Terminal	Cavity A1, B1, C4, D3, D4, E2, E4, F2, F3, G4, H2, H3, J1, J2, J3, J4, K1, K2, K3, K4
12	57M10615	1	Elec. Connector Housing	A571 BAC Controller J1
13	57M9937	1	Elec. Connector Housing	A571 BAC Controller J2
13	57M10217	3	Elec. Connector Terminal	Cavity 1, 3, 4
13	57M10331	3	Elec. Connector Terminal	Cavity 6, 17, 42
13	57M10330	13	Elec. Connector Terminal	Cavity 7, 8, 14, 19, 20, 26, 28, 31, 37, 40, 43, 51, 52
13	57M11973	3	Elec. Connector Seal	Cavity 1, 3, 4
13	57M10401	1	Elec. Connector Accessory	-
14	57M10329	1	Elec. Connector Housing	A571 BAC Controller J3
14	57M10330	11	Elec. Connector Terminal	Cavity 10, 11, 13, 14, 15, 16, 28, 40, 43, 51, 52
14	57M10401	1	Elec. Connector Accessory	-
15	H113197	2	Tie Band	-
16	57M11091	1	Elec. Connector Accessory	BAC Controller J4
17	57M10630	7	Clip Kit	-
18	RE258807	33	Tie Band	-

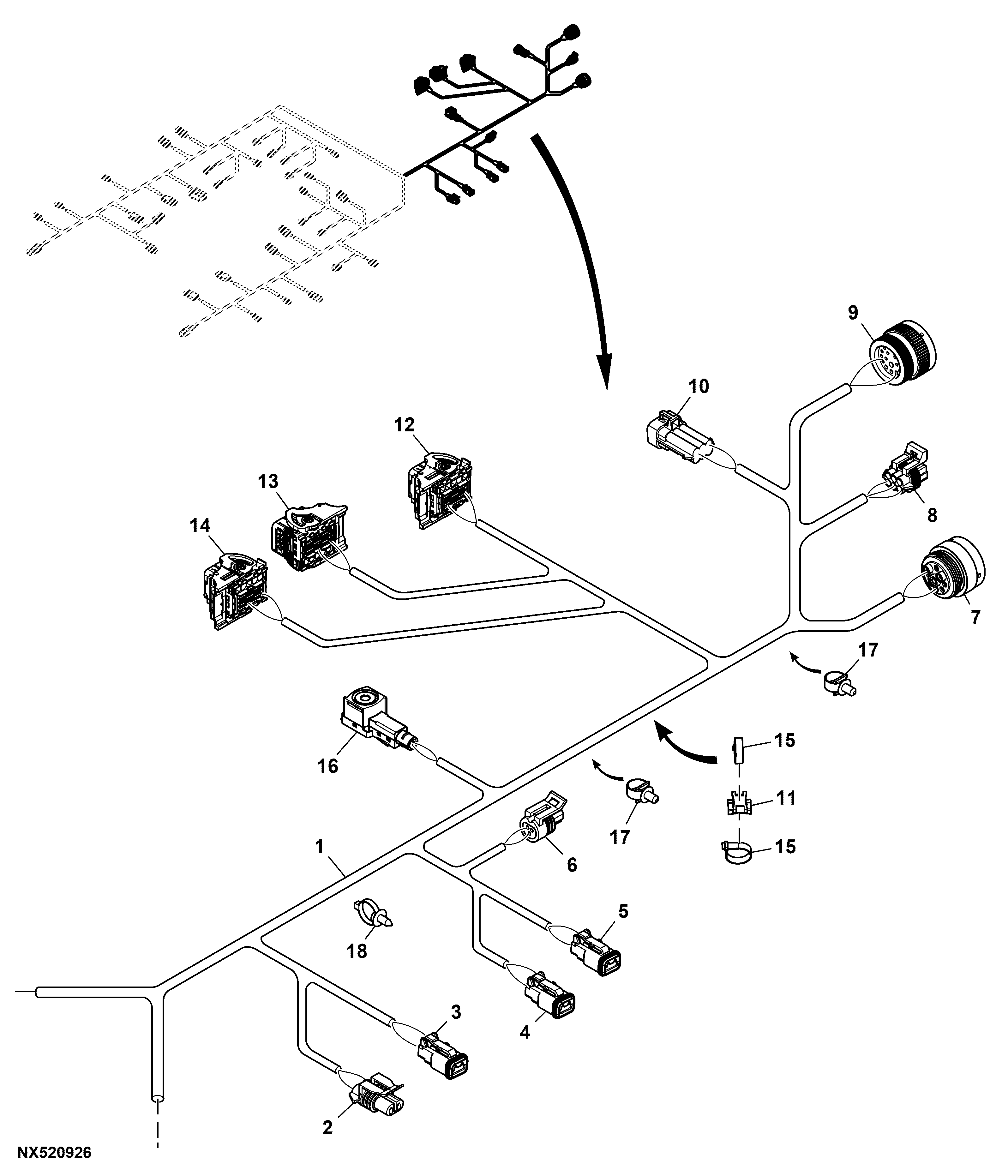

Chassis Wiring Harness, Dry Box Spreader (3 of 3)
