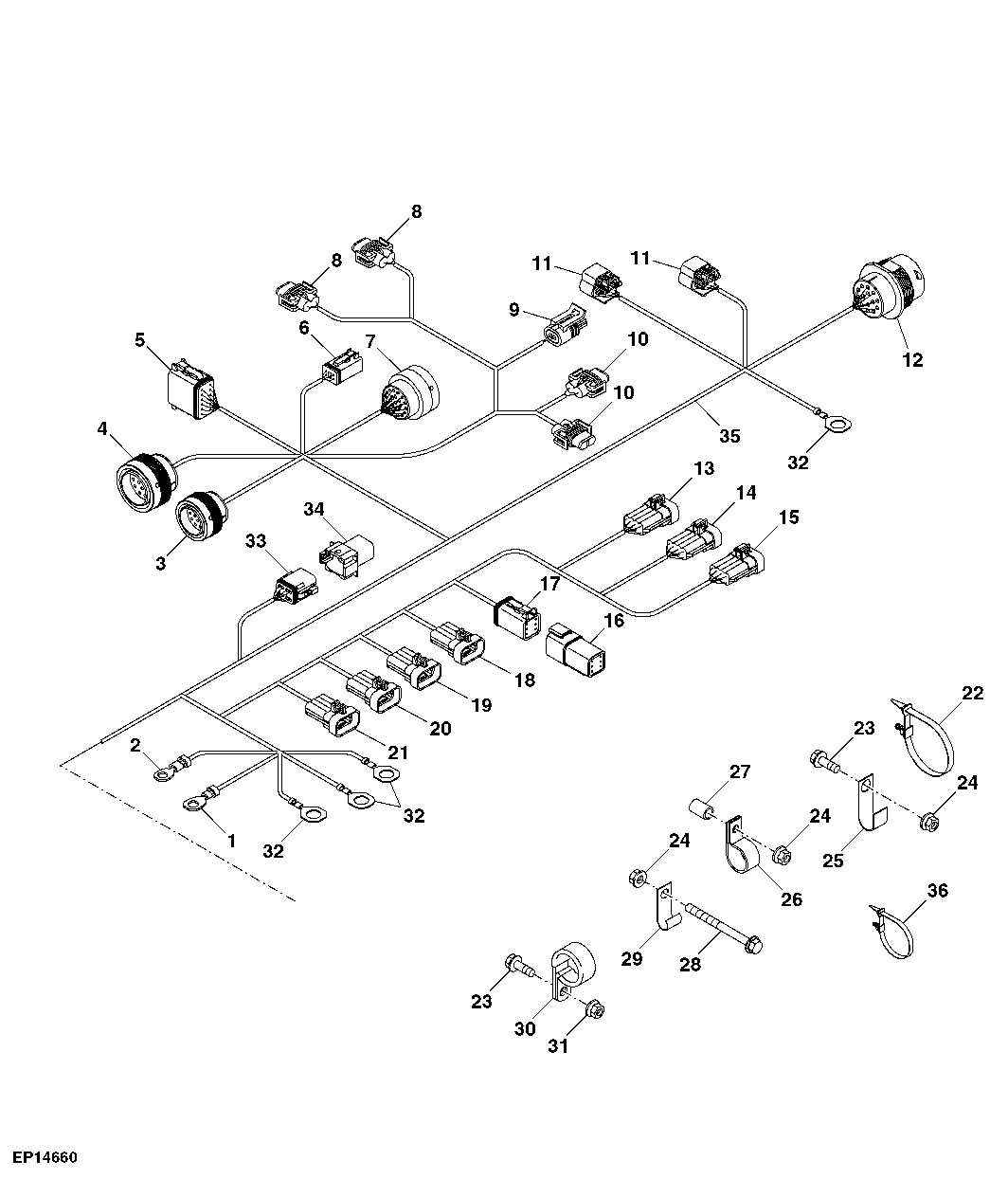

Chassis Wiring Harness (2/2) ( - 370000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	STARTER RELAY COIL
2	-	11	Part 2	STARTER RELAY GROUND
3	57M9070	1	Elec. Connector Housing	MAIN TRACTION 2
4	-	1	Part 4	MAIN TRACTION 4
5	-	1	Part 5	MAIN TRACTION 3
6	57M7535	1	Elec. Connector Terminal	MAIN TRACTION 1
6	57M7618	1	Electrical Connector Assy	-
7	57M7749	1	Electrical Connector Assy	MAIN TRACTION 5
8	57M7344	2	Elec. Connector Housing	LEFT UPPER AND LOWER OPTION LIGHTS
8	57M7371	2	Electrical Connector Assy	-
9	57M7813	1	Elec. Connector Housing	FUEL LEVEL SENDER
10	57M7344	2	Elec. Connector Housing	RIGHT UPPER AND LOWER OPTION LIGHTS
10	57M7371	2	Electrical Connector Assy	-
11	57M8542	2	Elec. Connector Housing	RIGHT AND LEFT WHEEL SPEED SENSORS
12	-	1	Part 15	PLATFORM CONNECTOR
12	57M8428	1	Electrical Connector Assy	-
12	57M9062	1	Elec.Connect Locking Device	-
13	-	1	Part 18	OPM J1
13	57M9083	1	Elec. Connector Accessory	-
14	-	1	Part 20	OPM J2
14	57M9083	1	Elec. Connector Accessory	-
15	-	1	Part 22	OPM J3
15	57M9083	1	Elec. Connector Accessory	-
16	57M7629	1	Elec. Connector Housing	DWA CAP
16	57M7678	1	Elec. Connector Terminal	-
17	57M7677	1	Elec. Connector Terminal	-
17	57M7630	1	Electrical Connector Assy	DWA
18	-	1	Part 28	FUSE CENTER J11
18	57M9083	1	Elec. Connector Accessory	-
19	-	1	Part 30	FUSE CENTER J12
19	57M9083	1	Elec. Connector Accessory	-
20	-	1	Part 32	FUSE CENTER J1
20	57M9083	1	Elec. Connector Accessory	-
21	-	1	Part 34	FUSE CENTER J2
21	57M9083	1	Elec. Connector Accessory	-
22	AFH203668	15	Tie Band	-
23	19M7867	8	Screw	M8 X 25
24	E63525	10	Nut	-
25	AH96317	4	Clip	-
26	T26955	3	Clamp	-
27	H141836	2	Bushing	-
28	19M7913	3	Screw	M8 X 90
29	AH89557	3	Clip	-
30	T161031	4	Clamp	-
31	14M7396	4	Lock Nut	M8
32	-	4	Part 46	-
33	57M7632	1	Electrical Connector Assy	HONEYBEE READY
33	57M7679	1	Elec. Connector Terminal	-
34	57M7631	1	Elec. Connector Housing	HONEYBEE READY CAP
34	57M7680	1	Elec. Connector Terminal	-
35	AFH204933	1	Chassis Wiring Harness	-
36	H224073	20	Tie Band	-
