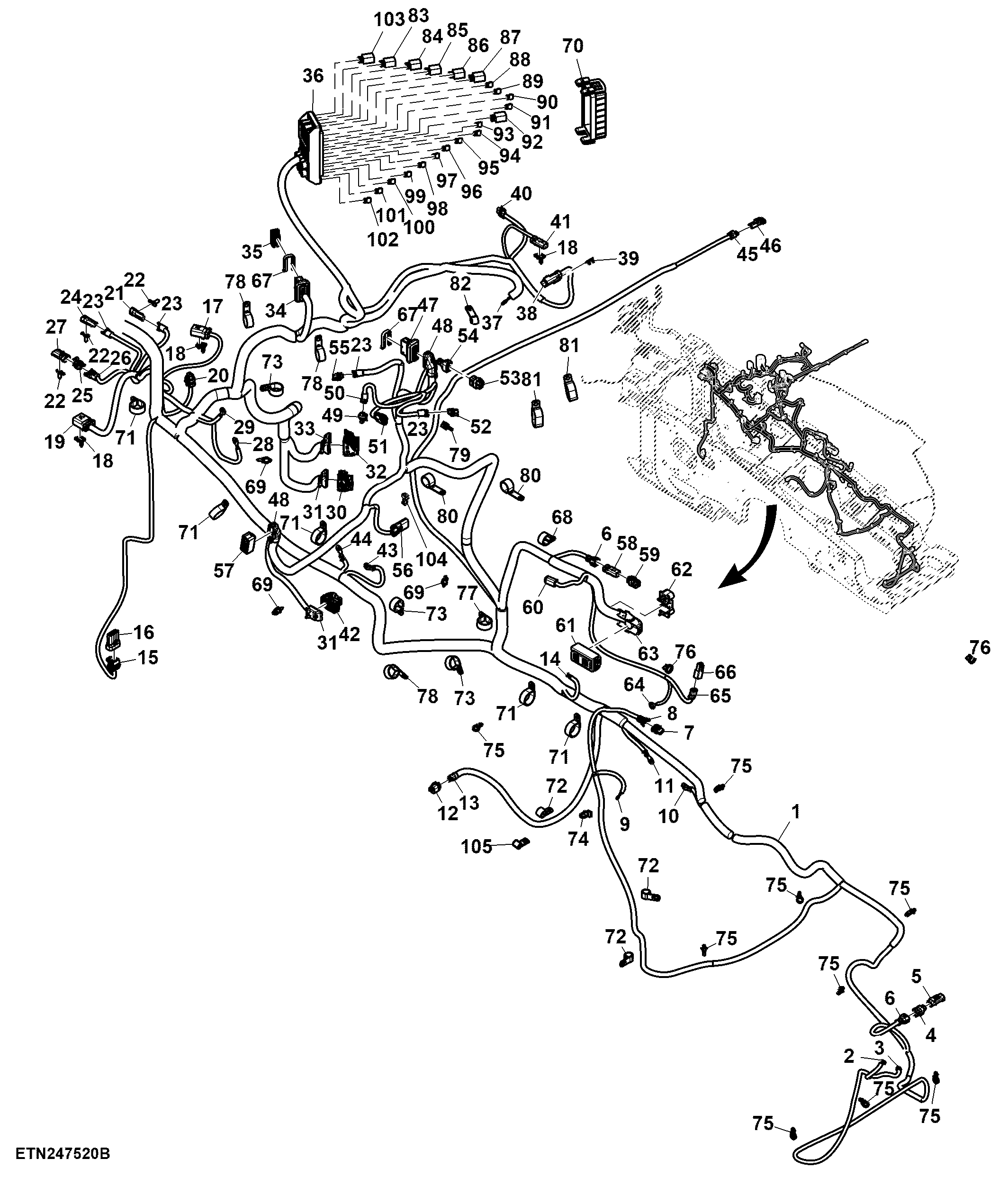

Wiring harness, Chassis, W/ ACS, 15.0 L FT4 Engine (2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA20842	1	Chassis Wiring Harness	-
2	57M7250	1	Elec. Connector Terminal	Horn, XB924-1
3	57M7250	1	Elec. Connector Terminal	Horn, XB924-2
4	57M9775	1	Elec. Connector Housing	Cooling Package Interconnect, XX034-1
5	57M11333	1	Elec. Connector Accessory	-
6	57M15493	2	Elec. Connector Accessory	-
7	57M7309	1	Elec. Connector Housing	A/C Compressor, XS501
7	RWA11089	1	Repair Wire Assembly	Cavity A, B
8	57M10477	1	Elec. Connector Accessory	-
9	57M8875	1	Elec. Connector Terminal	Alternator Excitation, XG301-2
10	57M9195	1	Elec. Connector Terminal	Single Point Ground Stud 2, XGND10
11	57M8901	1	Elec. Connector Terminal	Single Point Ground Stud 1, XGND11
12	57M8924	1	Elec. Connector Housing	Front Diff Lock, XY683
12	RWA11097	1	Repair Wire Assembly	Cavity B, A
13	57M11380	1	Elec. Connector Accessory	-
14	57M8937	1	Elec. Connector Terminal	Starter Solenoid, XM301-3
15	57M7262	1	Elec. Connector Housing	Radar Extension, XB921
15	CB01489384	1	Elec. Connector Accessory	-
15	RWA11083	1	Repair Wire Assembly	Cavity E, F, C
16	57M7265	1	Elec. Connector Housing	-
16	57M12072	1	Elec. Connector Accessory	-
17	57M9796	1	Elec. Connector Housing	Transmission-2, XX232-1
17	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
18	57M9940	3	Elec. Connector Accessory	-
19	57M9804	1	Elec. Connector Housing	Transmission - 1, XX230-1
19	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
20	57M9780	1	Elec. Connector Housing	Axle Supply Pressure, XB711
20	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
21	57M7985	1	Electrical Connector Assy	Axle Filter Restriction SW, XS555
21	RWA11082	1	Repair Wire Assembly	Cavity A, B
22	57M8910	3	Clip	-
23	57M9556	4	Elec. Connector Accessory	-
24	57M7985	1	Electrical Connector Assy	HYD Oil Filter Restriction SW, XS551
24	RWA11082	1	Repair Wire Assembly	Cavity A, B
25	57M7255	1	Elec. Connector Housing	Diagnostic Pressure, X289
25	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
26	57M8219	1	Elec. Connector Terminal	-
27	57M7290	1	Elec. Connector Accessory	-
27	57M7257	1	Elec. Connector Housing	-
28	57M8866	1	Elec. Connector Terminal	XGND14B
29	57M8866	1	Elec. Connector Terminal	XGND14A
30	57M10614	1	Elec. Connector Housing	MECA Rear Controller 1, XA570-1
30	RWA11030	1	Repair Wire Assembly	Cavity A1, C1, H1, A3, C2, E4, F1, D1, D2, F4, A4, F2, H2, J1, B2, B3, E1, G2, B4, E2, K1, K2, J3, B1, G1
30	RWA11032	1	Repair Wire Assembly	Cavity L1, L3, L2, M3, M2, M1
31	57M10613	2	Elec. Connector Housing	-
32	RWA11030	1	Repair Wire Assembly	Cavity 7, 9, 10, 11, 12, 13, 14, 15, 16, 21, 22, 23, 24, 25, 26, 27, 32, 34, 35, 36, 37, 38, 39, 40, 45
32	RWA11032	1	Repair Wire Assembly	Cavity 6, 17, 18, 29, 30, 41, 42, 53
32	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
32	57M10367	1	Elec. Connector Housing	MECA Rear Controller 2, XA570-2
33	57M10401	1	Elec. Connector Accessory	-
34	57M11853	1	Elec. Connector Housing	Chassis to DEF Interconnect, XX210-1
34	RWA11036	1	Repair Wire Assembly	Cavity 5, 8, 9, 11, 16, 17
35	57M13073	1	Elec. Connector Accessory	-
36	57M15586	1	Elec. Connector Housing	Chief Brick Fusion 62W Female Black Plastic, FEXX
36	57M15111	1	Elec. Connector Accessory	-
36	RWA11045	1	Repair Wire Assembly	Cavity 8, 9, 10, 11, 20, 21, 22, 1, 2, 3, 4, 5, 6, 7, 13, 14, 15, 16, 17, 18, 19, 49, 50, 51, 52, 53, 54, 34, 35, 36, 42, 33, 12, 43, 44, 23, 24, 25, 26, 27, 28, 29, 37, 38, 39, 40, 41, 45, 46
37	57M8866	1	Elec. Connector Terminal	ALT Power To Load Center, KSW2_OUT
38	RWA11136	1	Repair Wire Assembly	Cavity 1, 3, 5, 6
38	57M10302	1	Elec. Connector Housing	Power Module, XX750-1
39	57M11374	1	Elec. Connector Accessory	-
40	57M7687	1	Elec. Connector Housing	Service Switch Light, XS130
40	RWA11083	1	Repair Wire Assembly	Cavity A, C
41	57M7290	1	Elec. Connector Accessory	-
42	57M9779	1	Elec. Connector Housing	Battery Indicator Light, XE502
42	RWA11025	1	Repair Wire Assembly	Cavity 1
43	RWA11030	1	Repair Wire Assembly	Cavity A1, B3, K2, B1
43	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, M2, M1
43	57M10615	1	Elec. Connector Housing	XA401
44	57M9195	1	Elec. Connector Terminal	XGND12B
45	57M11404	1	Elec. Connector Terminal	XGND12A
46	57M15076	1	Elec. Connector Housing	Extremity_Light_Conn, XX132-1
46	RWA11108	1	Repair Wire Assembly	Cavity 1, 2, 3
47	57M15077	1	Elec. Connector Housing	-
48	RWA11039	1	Repair Wire Assembly	Cavity 8, 7, 16, 15
48	RWA11036	1	Repair Wire Assembly	Cavity 4, 3, 2, 1, 5, 9, 10, 6, 12, 14, 13, 11
48	57M12091	1	Elec. Connector Housing	Chassis to Hood Interconnect 1, XX080-1
49	57M11864	2	Elec. Connector Accessory	-
50	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
50	57M8625	1	Elec. Connector Housing	Air Restriction, XB307
51	57M11405	1	Elec. Connector Accessory	-
51	57M11979	1	Elec. Connector Housing	TBAP Sensor, XB5509
51	57M11980	1	Elec. Connector Accessory	-
51	RWA11176	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
52	57M7254	1	Elec. Connector Housing	Coolant Level Service, XB5010
52	RWA11083	1	Repair Wire Assembly	Cavity B, A
53	57M9817	1	Elec. Connector Housing	Intercooler Temp Interconnect, XX055-1
53	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
54	57M15918	1	Elec. Connector Accessory	-
55	57M7254	1	Elec. Connector Housing	Coolant Level Loss, XB5009
55	RWA11083	1	Repair Wire Assembly	Cavity A, B
56	57M11783	1	Elec. Connector Housing	TBAP Sensor, XX5049-1
56	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
57	57M11854	1	Elec. Connector Housing	Chassis To ATD/SCR Interconnect, XX003-1
57	RWA11042	1	Repair Wire Assembly	Cavity 3, 7, 6, 8, 9, 13, 12, 11, 15, 18
58	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
58	57M9776	1	Elec. Connector Housing	Can Terminator, XA912
59	57M11134	1	Elec. Connector Housing	-
60	57M10530	1	Elec. Connector Housing	OEM Crossover, XX5047-1
60	57M8016	1	Elec.Connect Locking Device	-
60	RWA11116	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
61	57M11553	1	Elec. Connector Housing	ECU-J2, XA5505
61	RWA11094	1	Repair Wire Assembly	Cavity 1, 3, 5, 6, 7, 8, 11, 12, 13, 16, 22, 24, 25, 26, 27, 28, 32, 37, 38, 39, 40, 41, 42, 46, 49, 50, 51, 52, 53, 54, 57, 58, 59, 62, 73, 75, 76, 77, 78, 79, 80, 81, 82, 83, 96
62	57M11998	1	Elec. Connector Accessory	-
63	57M11997	1	Elec. Connector Accessory	-
64	57M9535	1	Elec. Connector Terminal	Single Point Ground, XGND13
65	57M10517	1	Elec. Connector Housing	Fan Solenoid, XY5016
65	57M8022	1	Elec.Connect Locking Device	-
65	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
66	57M9037	1	Elec. Connector Housing	-
66	57M7621	1	Elec.Connect Locking Device	-
67	57M12093	2	Elec. Connector Accessory	-
68	57M12125	6	Clamp	-
69	RE258807	10	Tie Band	-
70	TA14886	1	Elec. Connector Accessory	-
71	57M12127	7	Clamp	-
72	57M13289	2	Clamp	-
73	57M12126	6	Clamp	-
74	57M9229	1	Clip	-
75	57M10233	10	Tie Band	-
76	R44302	2	Tie Band	-
77	57M12134	1	Clamp	-
78	57M13312	3	Clamp	-
79	AH225364	1	Clip	-
80	57M12147	2	Clamp	-
81	57M13306	2	Clamp	-
82	57M12141	1	Clamp	-
83	SJ15808	1	Relay	20 A, A/C Compressor, KE19
84	SJ15808	1	Relay	20 A, DEF, KE13
85	SJ15808	1	Relay	20 A, Heater, KE15
86	SJ15808	1	Relay	20 A, Heater, KE16
87	SJ15808	1	Relay	20 A, Heater, KE17
88	57M7689	1	Fuse	10 A, Alternator, FE28
89	57M7689	1	Fuse	10 A, SCV, FE101
90	SJ15808	1	Relay	20 A, Ether, KE14
91	57M7690	1	Fuse	15 A, Ether, FE14
92	57M7690	1	Fuse	15 A, Heater, FE09
93	57M7688	1	Fuse	5 A, Alternator Power, FE11
94	57M7688	1	Fuse	5 A, Alternator Power, FE12
95	57M7689	1	Fuse	10 A, A/C, FE06
96	57M7689	1	Fuse	10 A, Alternator, FE07
97	57M7690	1	Fuse	15 A, Steering, FE08
98	57M13448	1	Elec. Connector Accessory	30 A, ECU, FE01
99	57M7689	1	Fuse	10 A, AutoTrac™, FE04
100	57M7689	1	Fuse	10 A, DEF, FE05
101	57M8801	1	Fuse	60 A, Implement Bus Breakaway Connector, FE100
102	57M13119	1	Elec. Connector Accessory	30 A, Implement Bus Breakaway Connector ECU, FE30
103	SJ15808	1	Relay	20 A, Aftertreatment, KE18
104	TA22239	1	Tie Band	-
105	57M12138	1	Clamp	-

Wiring harness, Chassis, W/ ACS, 15.0 L FT4 Engine (2/3)
