Track Frame and Support Assembly, 24" Width, Narrow Undercarriage (Front, LH Illustrated)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R562972	4	Guard	-
2	24M7242	16	Washer	21.400 X 42 X 5 mm
3	19M9134	32	Cap Screw	M20 X 80
4	24M7344	48	Washer	22 X 37 X 3 mm
5	24M7351	64	Washer	25 X 44 X 4 mm
6	R273543	8	Spacer	-
7	AT364555	8	Plate	-
8	19M8011	8	Cap Screw	M12 X 30
9	-	4	Part 9	Pivot Mounting, Components On Separate page
10	19M7781	16	Cap Screw	M24 X 150
11	19M7872	88	Cap Screw	M12 X 25
12	R566411	4	Plate	-
13	R556763	8	Set Screw	-
14	RE594957	24	Roller	-
15	-	2	Part 15	LH, Components On Separate page
15	-	2	Part 16	RH, Components On Separate page
16	RE584724	8	Beam	-
17	RE583717	8	Mounting Parts	-
18	R559554	4	Center Frame	-
19	R559555	4	Beam	-
20	R559556	24	Half Clamp	-
21	R559558	8	Block Clamp	-
22	R566410	4	End Plate	-
23	R553428	4	Center Frame	-
24	19M7789	16	Screw	M12 X 30
25	19M7597	16	Cap Screw	M20 X 50
26	RE590084	12	Spindle	-
27	-	4	Part 28	Track Idler Assembly, Components On Separate page
28	19M8288	48	Cap Screw	M24 X 90
29	19M7489	288	Cap Screw	M16 X 45
30	19M7888	80	Cap Screw	M24 X 60
31	24M7243	80	Washer	25.400 X 50 X 6 mm
32	24M7338	288	Washer	17 X 30 X 3 mm
33	R136346	8	Plate	-
34	R254393	8	Pin	-
35	R543821	8	Stop	-
36	R553421	4	O-Ring	-
37	R553807	4	O-Ring	-
38	RE575989	8	Wheel	-
39	-	4	Part 40	Tensionlink Assembly, Components On Separate page
40	R254407	8	Spacer	-
41	TR117848	4	Guard	-
42	TR122897	16	Bolt	-

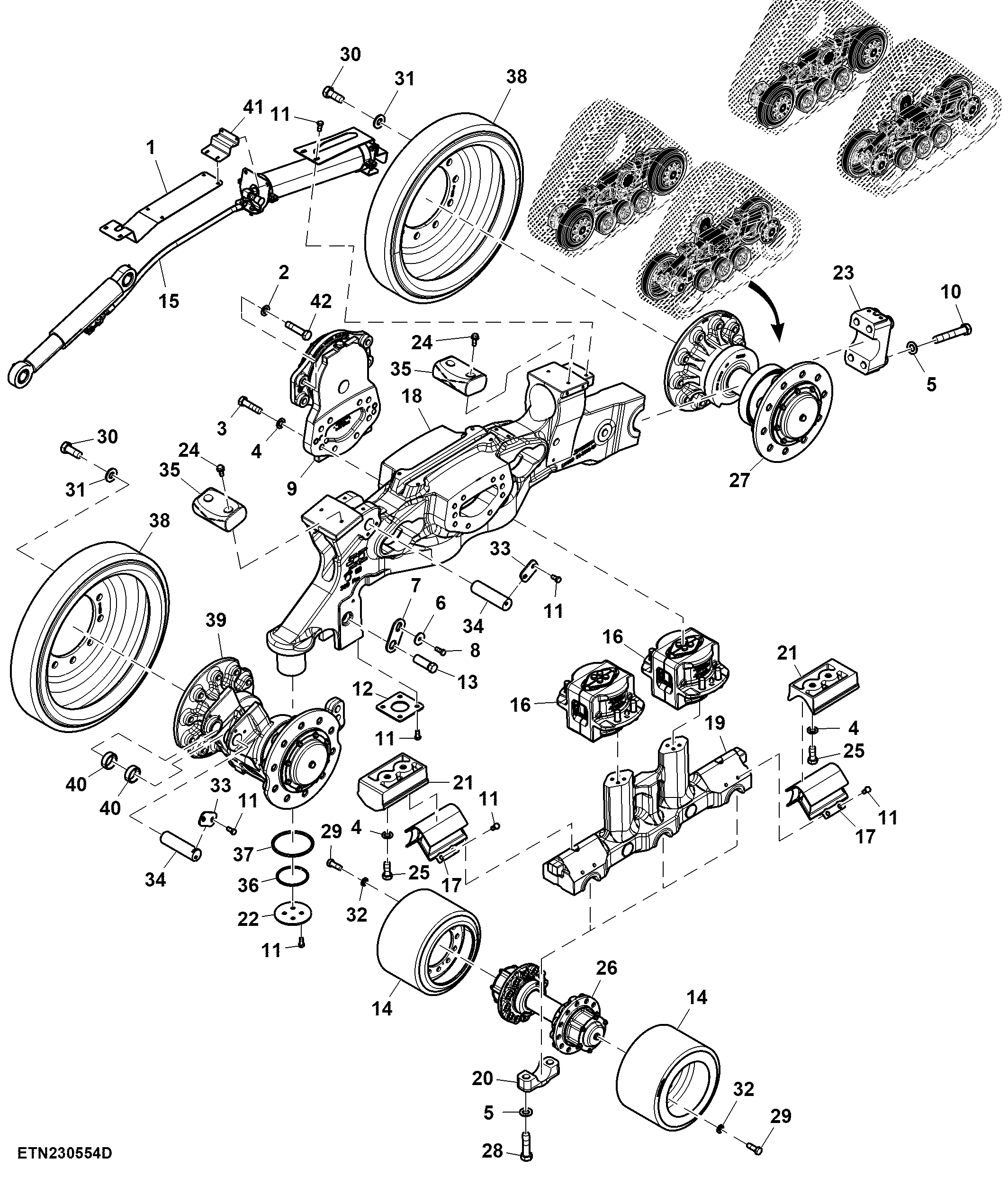

Track Frame and Support Assembly, 24" Width, Narrow Undercarriage (Front, LH Illustrated)
