Открытый узел

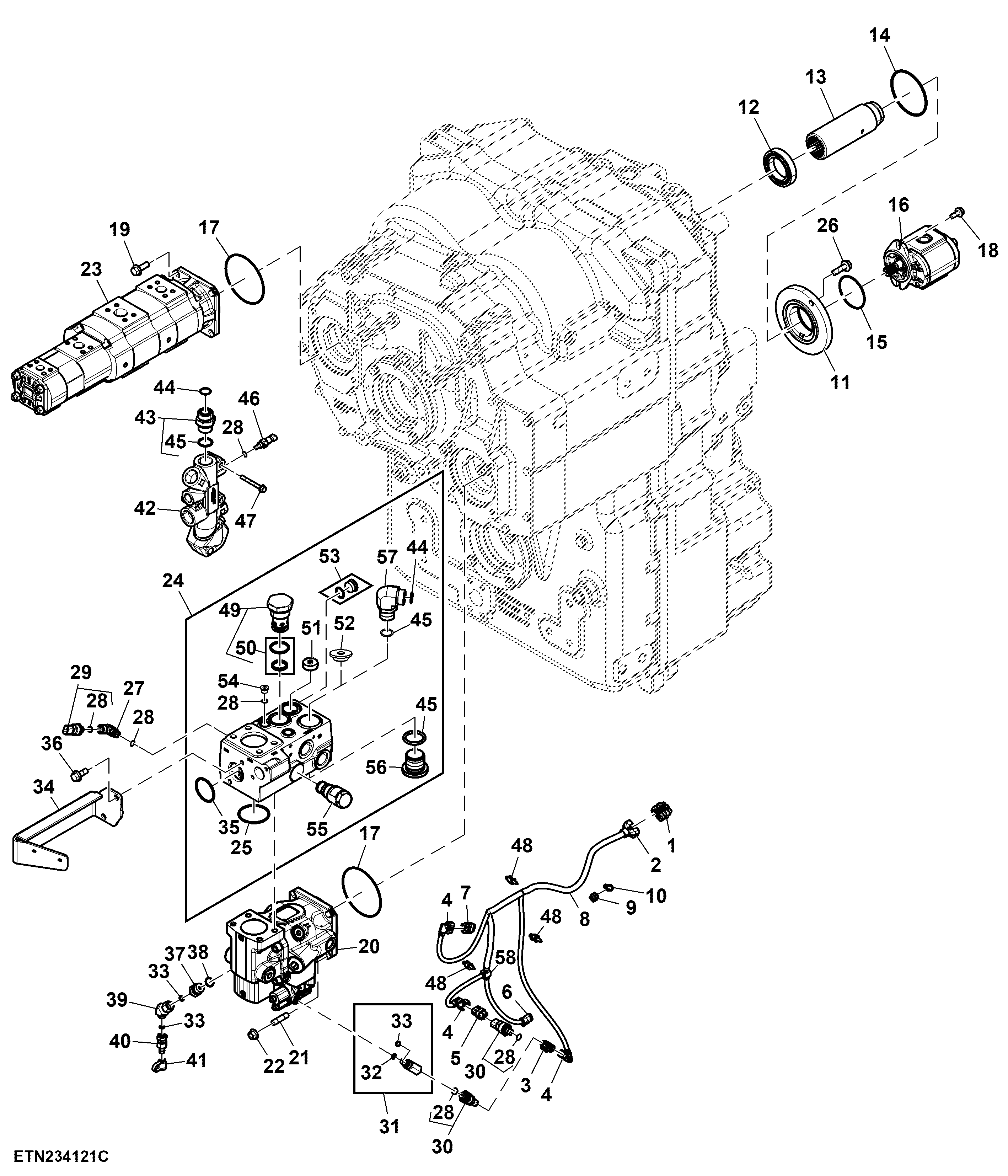

Hydraulic Pump, W/O Rear PTO, Standard Flow

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9800	1	Elec. Connector Housing	Hyd Pump-Transmission Interconnect, XX332-2
2	57M9844	1	Elec. Connector Accessory	-
3	57M9780	1	Elec. Connector Housing	Load Sense Resolved, XB274
4	57M10156	3	Elec. Connector Accessory	-
5	57M9780	1	Elec. Connector Housing	Pump Outlet Pressure, XB270/XB261
6	57M8637	1	Elec. Connector Housing	Swash Plate Angle, XB272
6	57M8019	1	Elec. Connector Terminal	-
7	57M9780	1	Elec. Connector Housing	Hyd Charge Press, XB717
8	TA20857	1	Wiring Harness	Single Hydraulic Pump Extension
9	AH225363	1	Clip	INCLUDES R44302
10	R44302	1	Tie Band	-
11	YZ502781	1	Adapter	-
12	R182469	1	Ball Bearing	-
13	YZ502163	1	Shaft	-
14	F37030246	1	O-Ring	-
15	U42702	1	O-Ring	-
16	RE572690	1	Hydraulic Pump	40 CC
17	T34448	2	O-Ring	-
18	19M7785	2	Screw	M10 X 25
19	19M7790	4	Screw	M12 X 35
20	-	1	Part 21	85CC, Components On Separate Page
21	42M7105	4	Stud	-
22	14M7299	4	Flange Nut	M12
23	TA10134	1	Hydraulic Pump	Quad Pump
24	TA18230	1	Pressure Relief Valve	Deluxe Cooler Bypass
25	51M7067	1	O-Ring	69.444 X 3.531 mm
26	19M7791	2	Bolt	M12 X 40
27	AL117978	1	Adapter Fitting	-
28	51M7041	7	O-Ring	11.300 X 2.200 mm
29	RE584414	1	Pressure Sensor	15 Bar
30	RE584419	2	Pressure Sensor	320 Bar
31	TA12425	1	Tee Fitting	-
32	51M7040	1	O-Ring	9.300 X 2.200 mm
33	T77613	3	O-Ring	-
34	TA11781	1	Bracket	-
35	51M7066	1	O-Ring	56.744 X 3.531 mm
36	19M7789	2	Screw	M12 X 30
37	R559715	1	Adapter Fitting	-
38	51M7085	1	O-Ring	19 X 2 mm
39	38H5437	1	Adapter Fitting	-
40	RE60701	1	Diagnostic Coupling	-
41	R77175	1	Cover	-
42	TR116968	1	Manifold	Charge Return Manifold
43	38H5006	1	Adapter Fitting	-
44	T76938	2	O-Ring	-
45	51M7048	3	O-Ring	29.600 X 2.900 mm
46	RE52722	1	Temperature Sensor	Hydraulic Oil Temperature, XB694
47	19M7803	3	Screw	M8 X 70
48	RE258807	5	Tie Band	-
49	TA15092	1	Pressure Relief Valve	Cooler Bypass Surge Relief Valve
50	TCA18021	1	Seal Kit	-
51	TR113063	1	Orifice	-
52	TR113064	1	Orifice	-
53	AT361540	1	Fitting Plug	-
54	64M1017	2	Drain Plug	-
55	TA11301	1	Pressure Relief Valve	Oil Cooler Pressure
56	64M1024	1	Drain Plug	-
57	38H5020	1	Elbow Fitting	-
58	57M10089	1	Elec. Connector Accessory	-

Hydraulic Pump, W/O Rear PTO, Standard Flow

Нет текстового описания
