Differential Case, Double Reduction Front Axle

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE190805	1	Diagnostic Coupling	-
2	51M7041	6	O-Ring	11.300 X 2.200 mm
3	R77175	5	Cover	-
4	R331227	1	Gasket	-
5	19M8319	4	Screw	M8 X 50
6	51M7040	8	O-Ring	9.300 X 2.200 mm
7	51M7096	1	O-Ring	13.300 X 2.200 mm
8	19M7897	6	Screw	M8 X 35
9	64M1022	1	Drain Plug	-
10	51M7047	3	O-Ring	23.600 X 2.900 mm
11	44M7129	8	Dowel Pin	-
12	H142721	2	Clamp	-
13	R105416	1	O-Ring	-
14	RE60701	4	Diagnostic Coupling	-
15	38H5016	4	Elbow Fitting	INCLUDES (4) 51M7041
16	RE211157	1	Solenoid Valve	Front Differential Lock Solenoid, XY683
17	RE47392	1	O-Ring Kit	-
18	64M1019	2	Drain Plug	-
19	TA10547	1	Case	-
20	51M7045	3	O-Ring	19.300 X 2.200 mm
21	R211082	1	Clamp	-
22	RE162743	3	Fitting Plug	-
23	R539154	1	Sealing Washer	-
24	R539147	1	Spool Valve	-
25	R539146	1	Spool Valve	-
26	R346607	1	Spring	-
27	R273398	1	Compression Spring	-
28	R218648	1	Spool Valve	-
29	R212714	1	Pin	-
30	51M7052	1	O-Ring	6.071 X 1.626 mm
31	34M7190	2	Spring Pin	14 X 14 mm
32	19M7163	2	Cap Screw	M8 X 25
33	R550444	1	Housing	-
34	19M8131	8	Screw	M10 X 70
35	19M9478	2	Screw	M5 X 16
36	RE581007	1	Oil Line	Scavenge Oil Tube
37	T76938	1	O-Ring	-
38	RE580920	2	Screw	-
39	T162005	1	Strap	-
40	R562852	4	Sealing Ring	-
41	F3171R	1	O-Ring	-
42	R84262	1	Fitting Plug	-
43	38H5005	2	Adapter Fitting	-
44	T77858	2	O-Ring	-
45	38H5002	1	Adapter Fitting	INCLUDES 51M7041
46	T77613	6	O-Ring	-
47	38H5012	1	Adapter Fitting	-
48	51M7043	3	O-Ring	15.300 X 2.200 mm

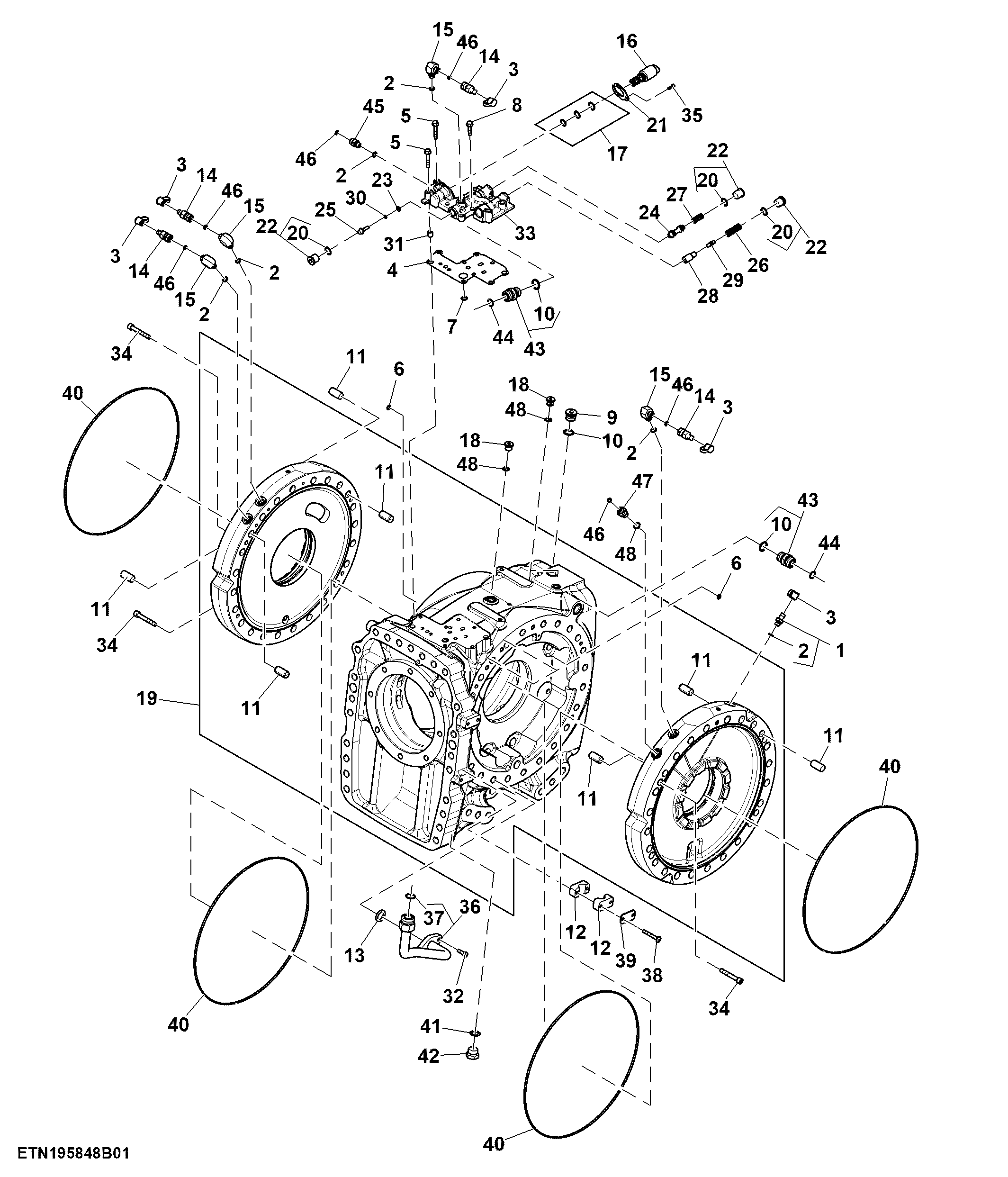

Differential Case, Double Reduction Front Axle
