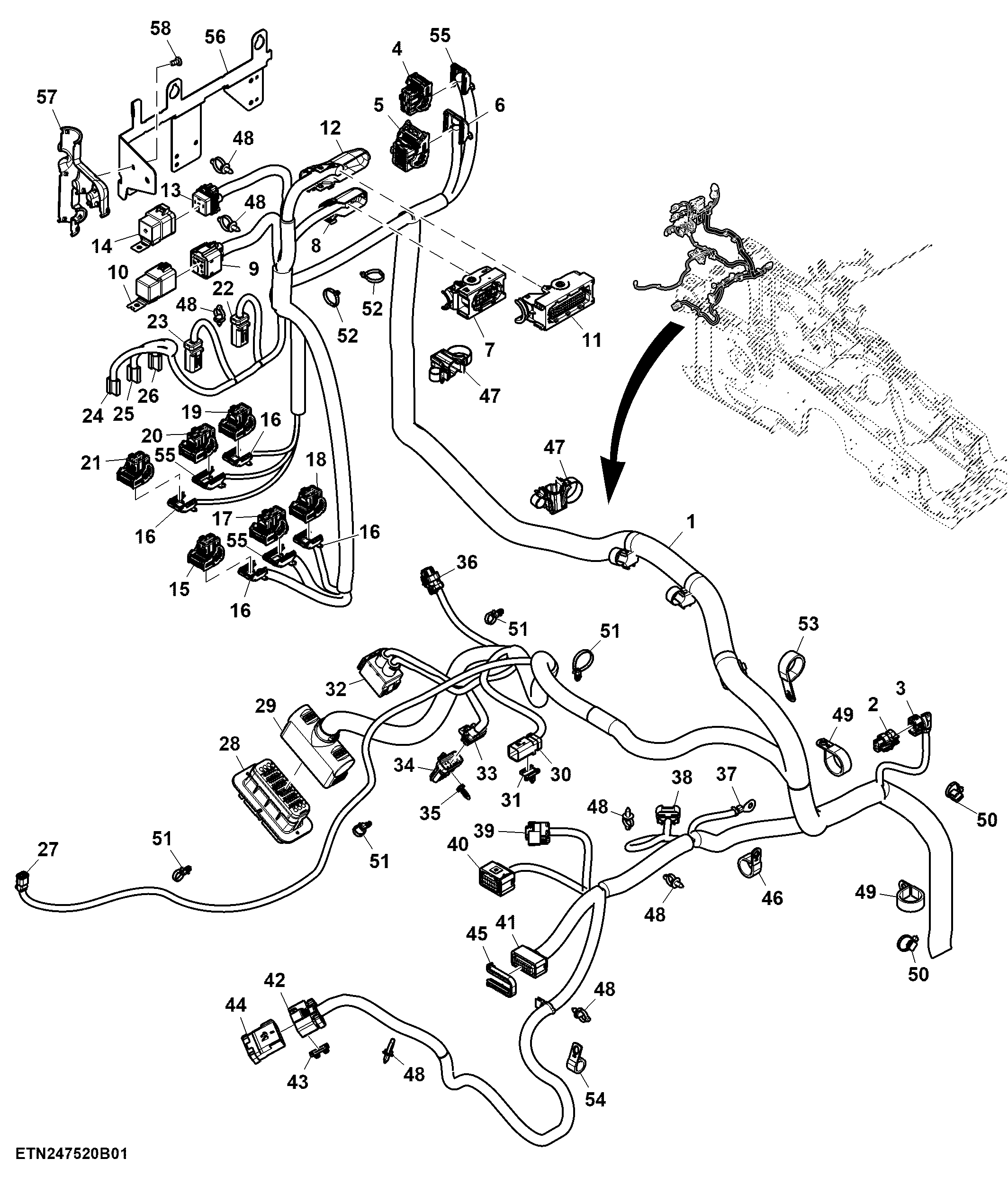

Chassis Wiring harness, W/ ACS, 15.0 L FT4 Engine (3/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA20842	1	Chassis Wiring Harness	-
2	57M9780	1	Elec. Connector Housing	Chassis to Transmission Interconnect, XX331-1
2	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
3	57M15803	1	Elec. Connector Accessory	-
4	RWA11030	1	Repair Wire Assembly	Cavity A1, B1, G1, J3, F4, E2, E4, E1
4	RWA11032	1	Repair Wire Assembly	Cavity L2, M2, M3, M4, M1
4	57M10615	2	Elec. Connector Housing	Cab Controller J1, XA107-1
5	57M10329	1	Elec. Connector Housing	Cab Controller J1, XA107-3
5	RWA11034	1	Repair Wire Assembly	Cavity 2, 3, 4
5	RWA11032	1	Repair Wire Assembly	Cavity 6, 17, 18, 29, 30, 41, 42, 53
5	RWA11030	1	Repair Wire Assembly	Cavity 10, 11, 15, 36, 43
6	57M10401	1	Elec. Connector Accessory	-
7	57M13340	1	Elec. Connector Housing	Chassis to Cab Interconnect 2, XX501-1
7	RWA11045	1	Repair Wire Assembly	Cavity 26, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25
7	RWA11042	1	Repair Wire Assembly	Cavity 3, 4, 5, 6, 7, 8, 14
8	57M13343	1	Elec. Connector Accessory	-
9	57M8233	1	Electrical Connector Assy	K1 Realy, XKE100
9	RWA11174	1	Repair Wire Assembly	Cavity 1, 2
10	AL156697	1	Relay	-
11	57M8730	1	Elec. Connector Housing	Chassis To Cab Interconncect 1, XX500-1
11	57M11957	1	Elec. Connector Accessory	-
11	RWA11042	1	Repair Wire Assembly	Cavity 14, 21, 22, 45, 46, 47, 48, 34, 35, 56, 60, 49, 30, 12, 27, 26, 29, 28, 38, 39, 41, 8, 11, 2, 1, 7, 5, 4
12	57M8738	1	Elec. Connector Accessory	-
13	57M7555	1	Elec. Connector Housing	K1 Realy, XKE01
13	RWA11166	1	Repair Wire Assembly	Cavity 1, 4
13	RWA11093	1	Repair Wire Assembly	Cavity 2, 5
14	57M12655	1	Elec. Connector Accessory	-
15	RWA11030	1	Repair Wire Assembly	Cavity A2, A4, B2, B4, C2, C4, E2, F2, F3
15	RWA11032	1	Repair Wire Assembly	Cavity G1, G4, H3, H4
15	57M10609	1	Elec. Connector Housing	XMC/XCS J1 Connector, XA985-1
16	57M10604	4	Elec. Connector Housing	-
17	57M10615	1	Elec. Connector Housing	XA985-2
17	RWA11030	1	Repair Wire Assembly	Cavity A1, H1, A2, C2, C3, F1, F4, A4, C4, K4, H3, J2, J1, H4, E1, E2, K2, J3, B1, G1
17	RWA11032	1	Repair Wire Assembly	Cavity L1, L4, L3, L2, M3, M2, M4, M1
18	57M10607	1	Elec. Connector Housing	XA985-3
18	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D1, D2, D3, E3, F1, F3, F4
18	RWA11032	1	Repair Wire Assembly	Cavity G1, G2, H1, H2
19	RWA11032	1	Repair Wire Assembly	Cavity G1, G4, H3, H4
19	RWA11030	1	Repair Wire Assembly	Cavity A2, B2, C4, D2, E1, E3, F1, F3, F4
19	57M10605	1	Elec. Connector Housing	XMC/XCS J1 Connector, XA986-1
20	57M10614	1	Elec. Connector Housing	XMC/XCS J2 Connector, XA986-2
20	RWA11030	1	Repair Wire Assembly	Cavity A1, H1, A2, C2, C3, F1, D2, F4, A4, F2, K4, H3, J1, G2, B4, G4, J4, K2, J3, B1, D3, G1
20	RWA11032	1	Repair Wire Assembly	Cavity L1, L4, L3, L2, M3, M2, M4, M1
21	57M10611	1	Elec. Connector Housing	XMC/XCS J3 Connector, XA986-3
21	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D2, D3, D4, E2, E3, F1, F3, F4
21	RWA11032	1	Repair Wire Assembly	Cavity G2, H1, H2
22	57M9821	1	Elec. Connector Housing	Rear Camera, XX140-2
22	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
23	57M9821	1	Elec. Connector Housing	Front Camera, XX141-2
23	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
24	RWA11076	1	Repair Wire Assembly	Cavity B, A
24	R77476	1	Electrical Connector Assy	Washer Pump Right, XM03
25	R77476	1	Electrical Connector Assy	Washer Pump Rear, XM02
25	RWA11076	1	Repair Wire Assembly	Cavity B, A
26	R77476	1	Electrical Connector Assy	Washer Pump Front, XM01
26	RWA11076	1	Repair Wire Assembly	Cavity B, A
27	57M10517	1	Elec. Connector Housing	WIF Sensor, XB5600
27	57M8022	1	Elec.Connect Locking Device	-
27	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
28	57M14781	1	Elec. Connector Housing	Interconnect Rear Chassis, XX301-1
28	RWA11129	1	Repair Wire Assembly	Cavity A1, A2, A3, G1, G2, G3
28	RWA11127	1	Repair Wire Assembly	Cavity C1, C2, C3, C4, C5, C6, C7, C8, C9, C10, C11, C12, D1, D2, D3, D4, D5, D6, D7, D8, D9, D10, D11, D12, E4, E5, E8, E10, E11, E12, F1, F2, F3, F4, F6, F8, F10, F12
29	57M13948	1	Elec. Connector Accessory	-
30	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
30	57M9786	1	Elec. Connector Housing	-
30	57M9789	1	Elec. Connector Housing	Chassis to PTO Interconnect, XX303-1
31	57M9940	1	Elec. Connector Accessory	-
32	57M8169	1	Elec. Connector Housing	Rear Chassis, XX302-1
33	57M7262	1	Elec. Connector Housing	Chassis to Autoload Interconnect, XX116-1
33	CB01489384	1	Elec. Connector Accessory	-
33	RWA11083	1	Repair Wire Assembly	Cavity G, E, D, F, A, B, C, J, K, H
34	57M7265	1	Elec. Connector Housing	-
34	57M12072	1	Elec. Connector Accessory	-
35	57M9555	1	Clip	-
36	57M9780	1	Elec. Connector Housing	Chassis to Fuel Level Sender, XX344-1
36	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
37	57M8901	1	Elec. Connector Terminal	Chassis Ground, XGND16
38	57M8919	1	Elec. Connector Housing	Road Wheel Angle Sensor, XB252
38	RWA11097	1	Repair Wire Assembly	Cavity A, E, F
39	57M8919	1	Elec. Connector Housing	Front Right Wheel Angle Sensor, XB264
39	RWA11097	1	Repair Wire Assembly	Cavity B, C, E, D, A, F
40	57M10958	1	Elec. Connector Housing	ACS, XX205-1
40	RWA11042	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
41	57M11854	1	Elec. Connector Housing	AT/ACS_Conn, XX204-1
41	RWA11042	1	Repair Wire Assembly	Cavity 1, 2, 8, 10, 13, 12, 11, 18, 17
42	57M10297	1	Elec. Connector Housing	Hyd Trailer Brake, XX790-1
42	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 12, 13
43	57M11374	1	Elec. Connector Accessory	-
44	57M10298	1	Elec. Connector Housing	-
45	57M12093	1	Elec. Connector Accessory	-
46	57M12125	1	Clamp	-
47	HXE53002	2	Clamp	-
48	RE258807	10	Tie Band	-
49	57M12127	1	Clamp	-
50	57M11237	2	Clip Kit	-
51	57M10233	16	Tie Band	-
52	R44302	9	Tie Band	-
53	57M13310	1	Clamp	-
54	57M13298	1	Clamp	-
55	57M10613	3	Elec. Connector Housing	-
56	-	1	Part 101	ORDER TA20842
57	-	1	Part 102	ORDER TA20842
58	21M7400	2	Screw	M6 X 10

Chassis Wiring harness, W/ ACS, 15.0 L FT4 Engine (3/3)

Нет текстового описания
