Открытый узел

Chassis Wiring Harness, 15.0 L Engine, ATD/ SCR

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TR110464	13	Screw	-
2	57M12093	1	Elec. Connector Accessory	-
3	TA22034	1	Chassis Wiring Harness	INCLUDES (11) RE258807, (5) 57M13298, (3) 57M12123, (4) 57M11763, (2) R44302, 57M12128
4	57M10702	1	Elec. Connector Housing	After Treatment Temperature Module, XB5204
5	57M11119	3	Elec. Connector Accessory	-
6	TR110462	3	Clamp	-
7	57M9776	1	Elec. Connector Housing	CAN Termination Resistor, XA916
8	57M15493	1	Elec. Connector Accessory	-
9	57M11134	1	Elec. Connector Housing	-
10	57M11780	1	Elec. Connector Housing	DPF Delta Pressure-Face Seal, XB5109
11	57M12123	3	Clamp	-
12	57M9789	1	Elec. Connector Housing	ATD/ Roof Harness Interconnect, XX171-2
13	57M15934	1	Elec. Connector Accessory	-
14	57M9940	2	Elec. Connector Accessory	-
15	57M11853	1	Elec. Connector Housing	ATD/ Main Chassis Harness Interconnect, XX003-2
16	RE258807	11	Tie Band	-
17	57M10704	1	Elec. Connector Housing	SCR Temperature Module, XB5212
18	57M10702	1	Elec. Connector Housing	NOx Sensor SCR Outlet, XB5503
19	57M15076	1	Elec. Connector Housing	ATD Harness/ Right Extremity Lights Interconnect, XX133-1
20	TR118213	1	Clamp	-
21	57M15077	1	Elec. Connector Housing	-
22	57M10315	1	Elec. Connector Housing	SCR Dosing Control Valve, XY5020
23	57M12151	1	Elec. Connector Accessory	-
24	57M9784	1	Elec. Connector Housing	ATD Harness/ Worklights Harness Interconnect, XX401-1
25	57M15917	1	Elec. Connector Accessory	-
26	57M11763	4	Elec. Connector Accessory	-
27	57M12128	1	Clamp	-
28	57M9780	1	Elec. Connector Housing	-
29	R44302	2	Tie Band	-
30	57M13298	5	Clamp	-

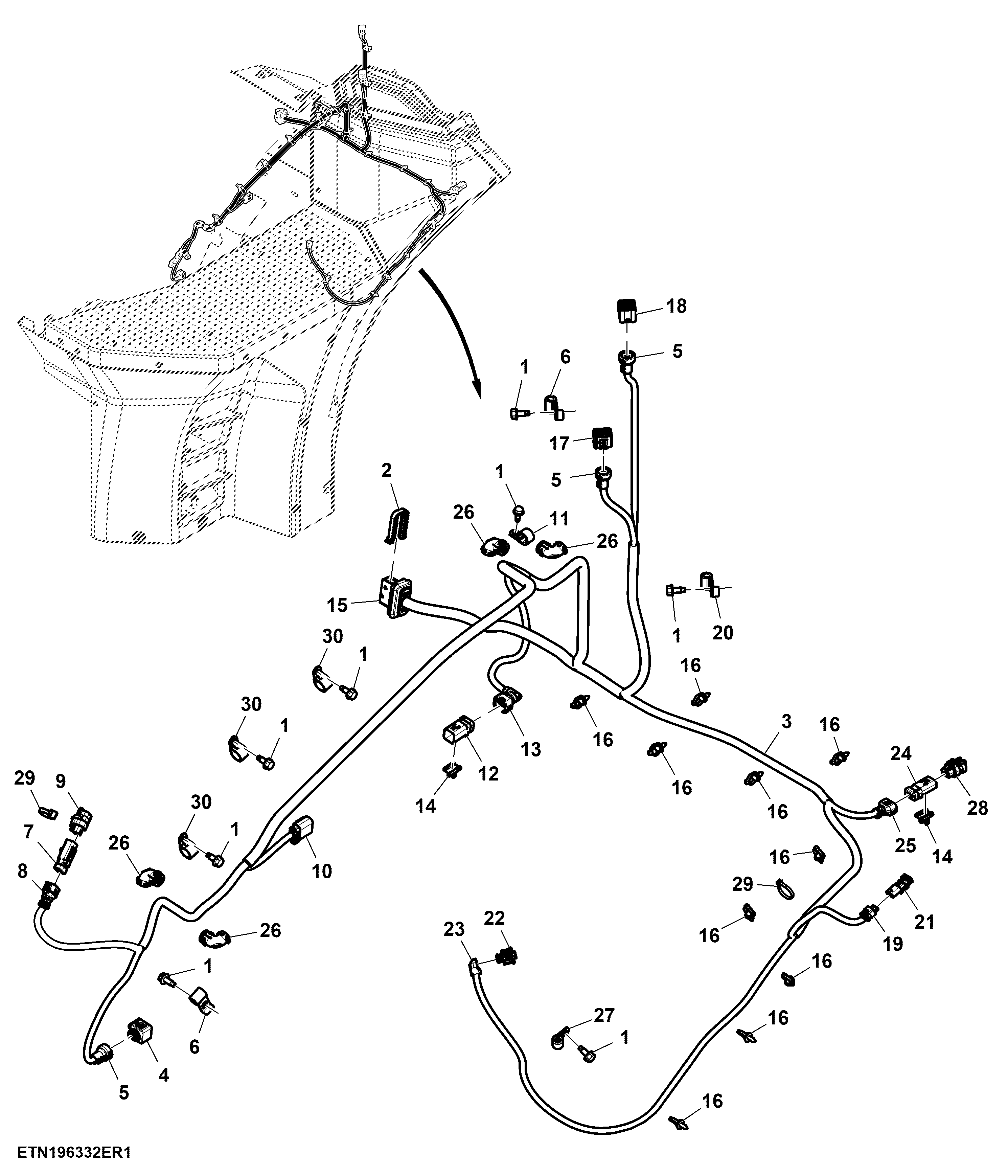

Chassis Wiring Harness, 15.0 L Engine, ATD/ SCR

Нет текстового описания
