Selective Control Valve, W/O Hitch, 4 Rear SCV, High Flow, Double Reduction Axle (For Scraper)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE557707	1	Manifold	-
2	64M1022	4	Drain Plug	-
3	51M7047	4	O-Ring	23.600 X 2.900 mm
4	RE46685	5	Fitting Plug	-
5	51M7043	5	O-Ring	15.300 X 2.200 mm
6	RE313875	1	Stud Kit	-
7	TA20346	4	Selective Control Valve	170 LPM
8	RE594725	1	Manifold	INCLUDES (2) 64M1022 AND (2) 51M7047
9	RE271469	1	Manifold	INCLUDES (2) RE190805 AND (2) R77175
10	RE190805	3	Diagnostic Coupling	INCLUDES 51M7041
11	51M7041	4	O-Ring	11.300 X 2.200 mm
12	R77175	3	Cover	-
13	24M7095	3	Washer	8.400 X 15 X 1.600 mm
14	14M7327	3	Lock Nut	M8
15	38H5004	7	Adapter Fitting	-
16	T77932	8	O-Ring	-
17	51M7045	8	O-Ring	19.300 X 2.200 mm
18	38H5192	1	Fitting	-
19	19M7790	6	Screw	M12 X 35
20	RE342468	4	Hydraulic Hose	Coupler 1
21	RE342469	4	Hydraulic Hose	Coupler 2
22	RE596030	1	Selective Control Valve	Bulkhead To Support Fixed Coupler
23	RE197687	8	Adapter Fitting	INCLUDES T77858 AND U12547
24	T77858	8	O-Ring	-
25	U12547	8	O-Ring	-
26	T78707	8	Nut	-
27	RE195592	8	Quick Coupler	-
28	R196768	8	Plug	-
29	R571610	1	Label	SCV Coupler Identification
30	RE211003	8	Seal Kit	-
31	RE46684	1	Fitting Plug	-
32	RE269061	1	Filter Kit	-
33	RE279694	1	Cap Kit	-
34	R107768	1	Drain Plug	-

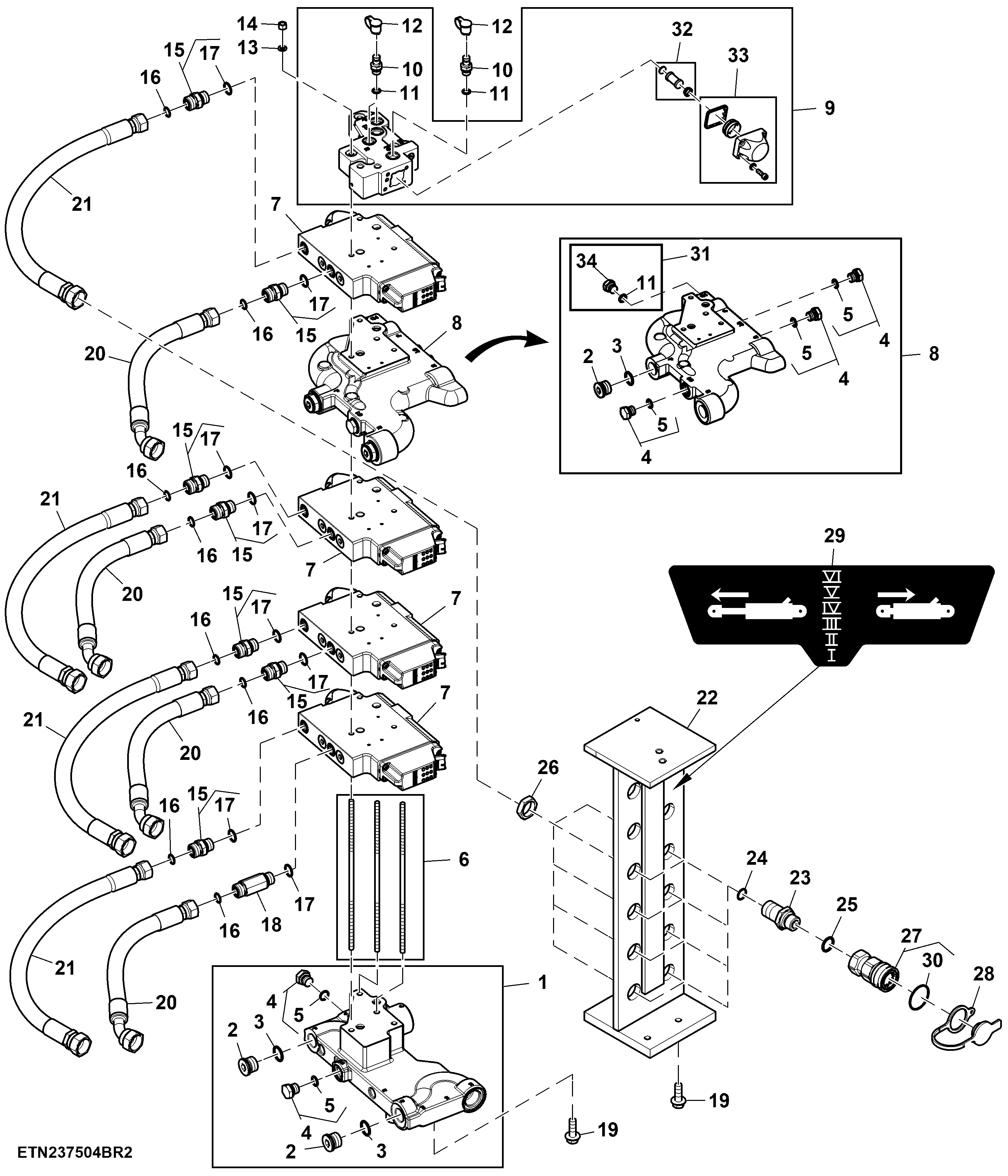

Selective Control Valve, W/O Hitch, 4 Rear SCV, High Flow, Double Reduction Axle (For Scraper)
