Открытый узел

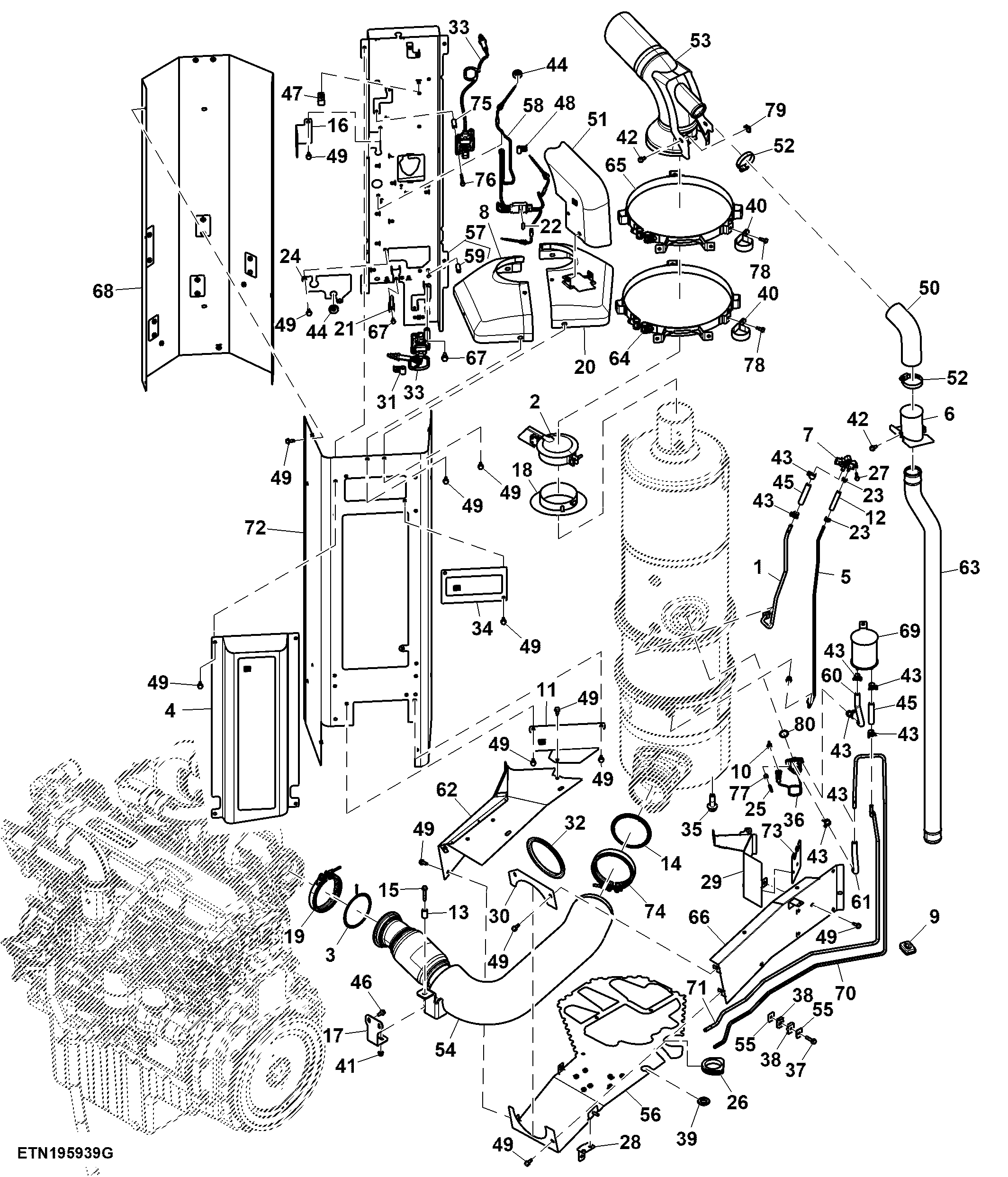

Exhaust Pipe 13.6 L, Dual Turbo, FT4/ Stage 5 Engine

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA10433	1	Tube	Delta P Mixer Port
2	RE53519	1	Cap	-
3	DZ102943	1	Gasket	-
4	TA10411	1	Heat Shield	Shield for Sensor Screen
5	TA10434	1	Tube	DPF Inlet
6	TA11292	1	Shield	-
7	RE546719	1	Pressure Sensor	Delta Pressure Sensor
8	TR109392	1	Heat Shield	ATD Top LH Shield
9	R540609	1	Grommet	-
10	DZ113102	1	Clip	-
11	TR108453	1	Heat Shield	DOC Sensor Cover
12	R559776	1	Hose	Delta Pressure, DOC / DPF
13	R117351	1	Spacer	-
14	R529640	1	Gasket	-
15	19M7800	1	Screw	M8 X 50
16	TR105385	1	Shield	Turbo Out Pipe Upper Shield Cover
17	TR106675	1	Bracket	-
18	TA11287	1	Heat Shield	-
19	TA23959	1	Clamp	-
20	TA11306	1	Heat Shield	ATD Top RH Shield
21	R313267	1	Clamp	-
22	R313276	1	Insulator	-
23	R56101	2	Clip	-
24	TR108454	1	Heat Shield	Temperature Sensor Cover
25	DZ123958	3	Stud	-
26	TR105383	1	Grommet	-
27	19M7796	2	Screw	M6 X 30
28	TA12351	1	Bracket	-
29	TA20507	1	Heat Shield	Inlet NOx Sensor
30	TR106519	1	Shield	ATD Inlet Pipe Upper
31	TR110463	3	Clamp	-
32	R554432	1	Grommet	-
33	DZ112080	2	Chemical Sensor	LGTH = 615 mm, NOx Sensor
34	TA13829	1	Screen	-
35	TR110466	7	Screw	-
36	DZ113622	1	DEF Dosing Injector	INCLUDES DZ112819
37	19M7897	2	Screw	M8 X 35
38	H128515	4	Clamp	-
39	R552352	1	Grommet	-
40	R241967	2	Clamp	-
41	14M7573	1	Flange Nut	M8
42	19M10489	4	Screw	M8 X 16
43	R202160	8	Clamp	-
44	R545774	3	Grommet	-
45	R564906	2	Hose	DEF Doser Coolant Return
46	19M8331	2	Screw	M8 X 20
47	TR110462	8	Clamp	-
48	TR110461	9	Clamp	-
49	TR110464	100	Screw	-
50	TR124256	1	Hose	Upper Aspiration Hose
51	TR123809	1	Heat Shield	ATD Top Ventilation Shield
52	AL170672	2	Clamp	-
53	TA23351	1	Exhaust Pipe	SCR Outlet
54	TA23957	1	Exhaust Pipe	Turbo Outlet, ORDER TA25994
54	TA25994	1	Exhaust Pipe	-
55	H121163	4	Strap	-
56	TA17731	1	Heat Shield	ATD Bottom Debris Shield
57	TA17725	1	Heat Shield	Sensor Shield
58	DZ123016	1	Temperature Sensor	LGTH = 300 mm, Diesel Oxidation Catalyst
58	DZ123016	1	Temperature Sensor	LGTH = 300 mm, Diesel Particulate Filter
58	DZ123016	1	Temperature Sensor	LGTH = 730 mm, Selective Catalytic Reduction
59	28H3396	6	Bushing	0.364" X 0.540" X 1-3/8"
60	TR124998	1	Hose	Doser Coolant Return
61	TR124999	1	Hose	Doser Coolant Supply
62	TA21883	1	Shield	Exhaust Pipe Front
63	TR117557	1	Pipe	-
64	TA21882	1	Clamp	-
65	TA21881	1	Clamp	-
66	TA17735	1	Shield	Exhaust Pipe Rear
67	19M7775	2	Screw	M6 X 16
68	TA19099	1	Heat Shield	-
69	TA18287	1	Reservoir	-
70	TR119109	1	Line	Coolant Supply
71	TR119108	1	Line	Coolant Return
72	TA19697	1	Heat Shield	Rear ATD Shield
73	TR120380	1	Shield	-
74	RE540348	1	Clamp	-
75	28H3461	2	Spacer	0.364" X 0.540" X 1-1/2"
76	19M8069	2	Screw	M6 X 55
77	DZ123959	3	Nut	-
78	19M7866	2	Screw	M8 X 20
79	M123593	2	Lock Nut	-
80	DZ112819	1	Gasket	-

Exhaust Pipe 13.6 L, Dual Turbo, FT4/ Stage 5 Engine
