Открытый узел

Wiring Harness, Selective Control Valve, 6 Rear SCV, W/O Hitch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA20867	1	Wiring Harness	-
2	57M13605	1	Elec. Connector Housing	Mains Chassis Harness/Rear Chassis Harness Interconnect, XX301-2
3	57M13948	1	Elec. Connector Accessory	-
4	57M12127	4	Clamp	-
5	19M7866	4	Screw	M8 X 20
6	M84971	2	Nut	-
7	57M8170	1	Elec. Connector Accessory	Implement Bus Breakaway Connector Power Break at Gudgeon, XX302-2
8	57M8924	1	Elec. Connector Housing	Differential Lock, XY666
8	57M8633	1	Elec. Connector Accessory	-
9	19M7811	1	Screw	M10 X 90
10	28H3479	1	Spacer	0.423" X 0.675" X 2-15/16"
11	H224073	10	Tie Band	-
12	57M13340	1	Elec. Connector Housing	Rear Chassis Harness/Rear Lights Harness Interconnect, XX321-1
13	57M13343	1	Elec. Connector Accessory	-
14	57M9784	1	Elec. Connector Housing	Rear Chassis to Rear Facing SCV Light Kit Interconnect, XX704-1
15	57M15917	1	Elec. Connector Accessory	-
16	57M9780	1	Elec. Connector Housing	-
17	57M12126	2	Clamp	-
18	19M7806	1	Screw	M10 X 50
19	28H1497	1	Bushing	0.493" X 0.675" X 1-1/2"
20	57M12741	2	Elec. Connector Accessory	-
21	AN209168	2	Swivel	-
22	RE258807	9	Tie Band	-
23	57M9786	1	Elec. Connector Housing	Rear Camera, XA991
24	57M11336	1	Elec. Connector Accessory	-
24	57M14988	1	Elec. Connector Accessory	-
25	57M10229	1	Elec. Connector Accessory	-
26	57M12125	1	Clamp	-
27	14M7273	1	Nut	M8
28	57M16249	1	Elec. Connector Housing	Implement Connector, XA917-1
29	57M8635	1	Elec. Connector Housing	Implement CAN, XA917-2
29	57M8016	1	Elec.Connect Locking Device	-
30	57M10299	1	Elec. Connector Housing	Trailer Lights, XX705-1
31	RE12363	1	Electrical Connector Assy	Implement Switch, XS549
32	R78053	1	Electrical Connector Assy	-
33	57M9498	1	Elec. Connector Housing	SCV 1, XA701
34	57M11897	6	Elec. Connector Accessory	-
35	57M9498	1	Elec. Connector Housing	SCV 2, XA702
36	57M9498	1	Elec. Connector Housing	SCV 3, XA703
37	57M9498	1	Elec. Connector Housing	SCV 4, XA704
38	57M9498	1	Elec. Connector Housing	SCV 5, XA705
39	57M11354	2	Elec. Connector Housing	-
39	57M9500	2	Elec. Connector Accessory	-
40	57M9498	1	Elec. Connector Housing	SCV 6, XA706
41	57M10198	5	Elec. Connector Housing	-
42	TA11149	1	Wiring Harness	-
43	57M9772	1	Elec. Connector Housing	Fuel Level, XB692
43	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
44	57M8872	1	Elec. Connector Terminal	Ground, XGND3A
45	57M9784	1	Elec. Connector Housing	Tank To Main Chassis Interconnect, XX344-2
45	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3
46	57M9939	1	Elec. Connector Accessory	-
47	19M7302	1	Cap Screw	M6 X 8
48	TR110276	1	Bracket	-
49	19M7788	2	Screw	M12 X 25

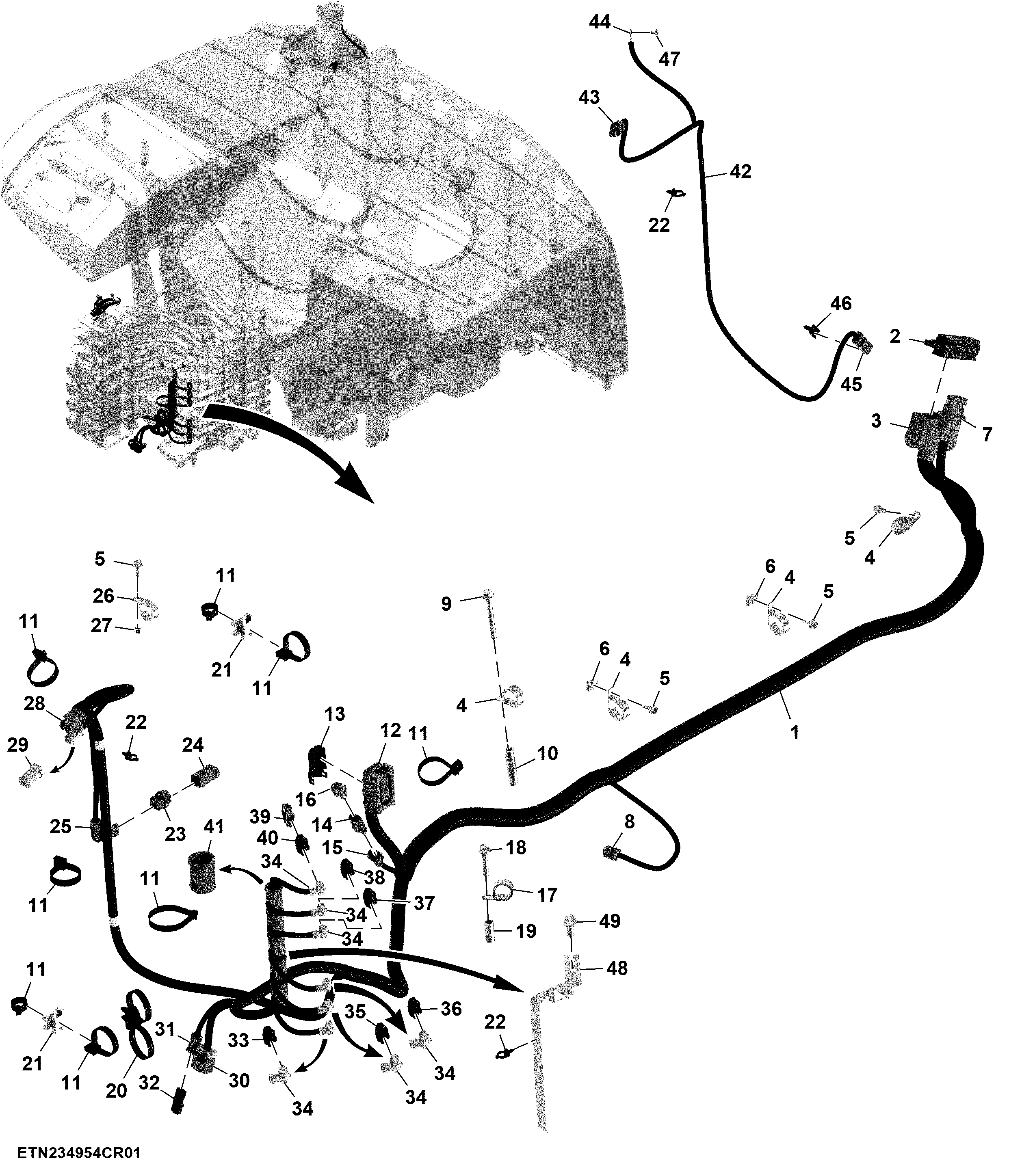

Wiring Harness, Selective Control Valve, 6 Rear SCV, W/O Hitch
