Wiring Harness, Chassis, W/ ACS™, 13.6 L, T2 / T3 Engine (2/4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA21535	1	Chassis Wiring Harness	Alternator and A/C Compressor
2	57M7309	1	Elec. Connector Housing	A/C Compressor, XE5001
2	RWA11089	1	Repair Wire Assembly	Cavity B, A
3	57M11237	1	Clip Kit	-
4	RE258807	4	Tie Band	-
5	57M8873	1	Elec. Connector Terminal	Alternator Excitation, XG301-2
6	57M9780	1	Elec. Connector Housing	Alternator and A/C Compressor Interconnect, XX5099-1
6	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
7	TA20836	1	Chassis Wiring Harness	-
8	57M8812	1	Elec. Connector Housing	Ether Solenoid, XY5018
8	RWA11076	1	Repair Wire Assembly	Cavity B, A
9	57M10233	26	Tie Band	-
10	57M7250	1	Elec. Connector Terminal	Horn, XB924-2
11	57M7250	1	Elec. Connector Terminal	Horn, XB924-1
12	57M13292	1	Clamp	-
13	57M9775	1	Elec. Connector Housing	Fan Speed, XX034-1
13	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
14	57M15924	4	Elec. Connector Accessory	-
15	57M11333	1	Elec. Connector Accessory	-
16	57M12124	3	Clamp	-
17	57M9776	1	Elec. Connector Housing	CAN Termination, XA912
17	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
18	57M15493	1	Elec. Connector Accessory	-
19	57M11134	1	Elec. Connector Housing	-
20	57M10421	1	Elec. Connector Accessory	-
21	57M9780	1	Elec. Connector Housing	Ether, XX5097-1
21	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
22	57M15968	1	Elec. Connector Housing	ECU, XA5505-3
22	RWA11044	1	Repair Wire Assembly	Cavity 13, 15, 17, 18, 19, 20, 21, 16, 46, 48, 55, 51, 53, 52, 32, 31, 12, 43, 44, 23, 27, 25, 29, 28, 37, 38, 39, 8, 11, 2, 1, 7, 5, 4
22	RWA11047	1	Repair Wire Assembly	Cavity 62, 58, 57, 60, 59, 61
23	57M8738	1	Elec. Connector Accessory	-
24	57M8901	1	Elec. Connector Terminal	Single Point Ground Stud 2, XGND10
25	57M8901	1	Elec. Connector Terminal	Single Point Ground Stud 1, XGND11
26	57M12138	1	Clamp	-
27	57M8924	1	Elec. Connector Housing	Front Differential Lock, XY683
27	RWA11097	1	Repair Wire Assembly	Cavity B, A
28	57M11380	1	Elec. Connector Accessory	-
29	57M12146	1	Clamp	-
30	57M10517	1	Elec. Connector Housing	Fan Solenoid, XY5014
30	57M8022	1	Elec.Connect Locking Device	-
30	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
31	57M9037	1	Elec. Connector Housing	-
31	57M7621	1	Elec.Connect Locking Device	-
32	57M12127	5	Clamp	-
33	57M12134	1	Clamp	-
34	AH225366	2	Clip	-
35	AH225364	2	Clip	-
36	57M15076	1	Elec. Connector Housing	Extremity Light Connector, XX132-1
36	RWA11108	1	Repair Wire Assembly	Cavity 1, 2, 3
37	57M15077	1	Elec. Connector Housing	-
38	57M12147	2	Clamp	-
39	57M11854	1	Elec. Connector Housing	Chassis to ATD/SCR Interconnect, XX003-1
39	RWA11042	1	Repair Wire Assembly	Cavity 1, 2, 4, 8, 10, 9, 15, 18, 14
40	57M11864	2	Elec. Connector Accessory	-
41	57M9775	1	Elec. Connector Housing	Engine, XX5083-1
41	RWA11027	1	Repair Wire Assembly	Cavity 1
42	57M9779	1	Elec. Connector Housing	Starter Solenoid, XX5083-3
42	RWA11023	1	Repair Wire Assembly	Cavity 1
43	TA18051	1	Tie Band	-
44	RWA11083	1	Repair Wire Assembly	Cavity A, B
44	57M7254	1	Elec. Connector Housing	Coolant Level Loss, XB5009
45	57M9556	1	Elec. Connector Accessory	-
46	57M9144	1	Elec. Connector Housing	Quad CAN Connector, XB5500
46	RWA11130	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
47	57M12091	1	Elec. Connector Housing	Chassis to Hood Interconnect 1, XX080-1
47	RWA11036	1	Repair Wire Assembly	Cavity 4, 3, 2, 1, 5, 9, 10, 6, 12, 14, 13, 11
47	RWA11039	1	Repair Wire Assembly	Cavity 8, 7, 16, 15
48	57M12093	1	Elec. Connector Accessory	-
49	57M12126	2	Clamp	-
50	57M13312	1	Clamp	-
51	57M8901	1	Elec. Connector Terminal	Ground, XGND12A
52	57M8901	1	Elec. Connector Terminal	Ground, XGND12B
53	57M10615	1	Elec. Connector Housing	Driveline Sense Controller, XA401
53	RWA11030	1	Repair Wire Assembly	Cavity A1, B3, K2, B1
53	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, M2, M1
54	57M10613	1	Elec. Connector Housing	-
55	57M9940	1	Elec. Connector Accessory	-

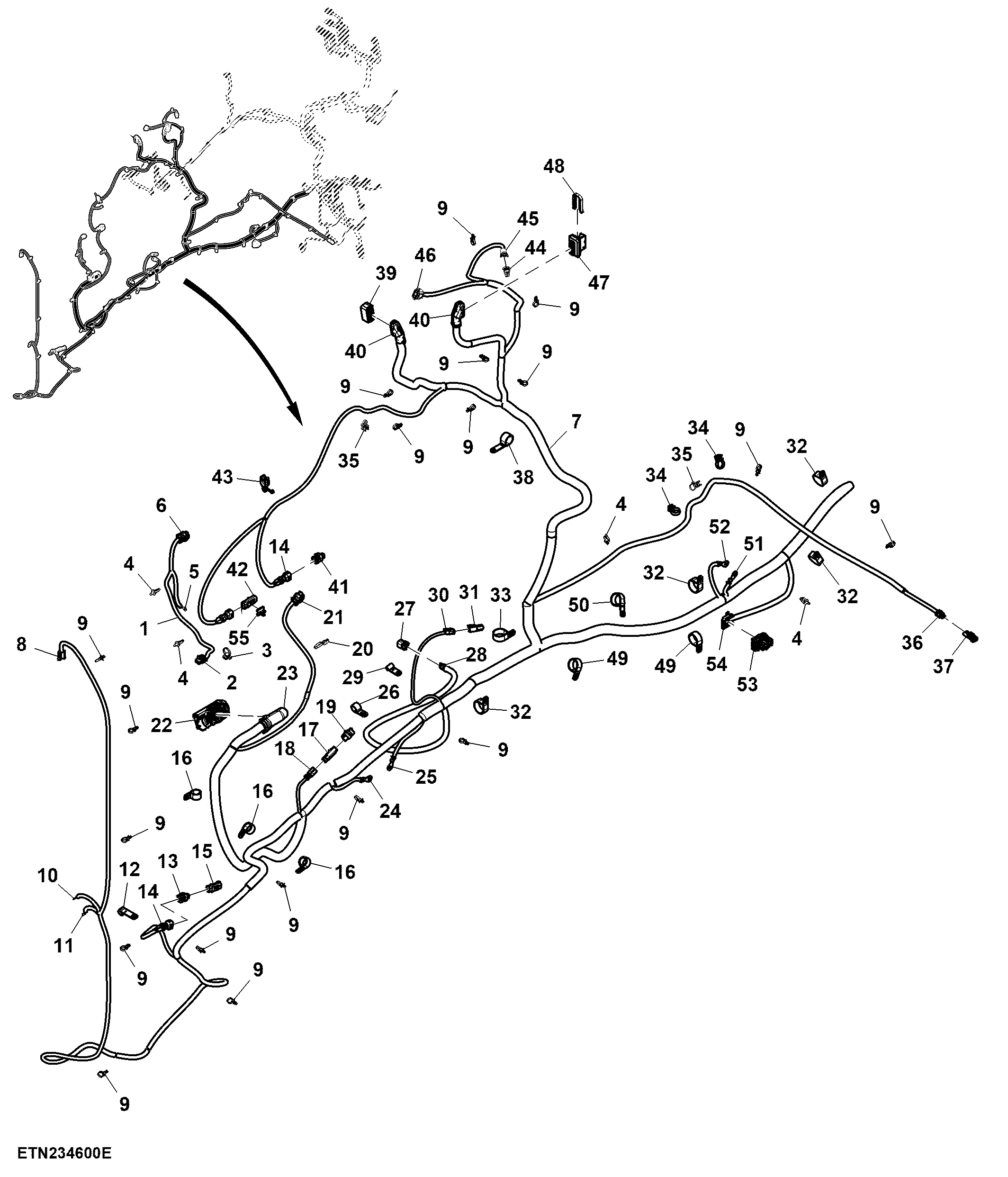

Wiring Harness, Chassis, W/ ACS™, 13.6 L, T2 / T3 Engine (2/4)
