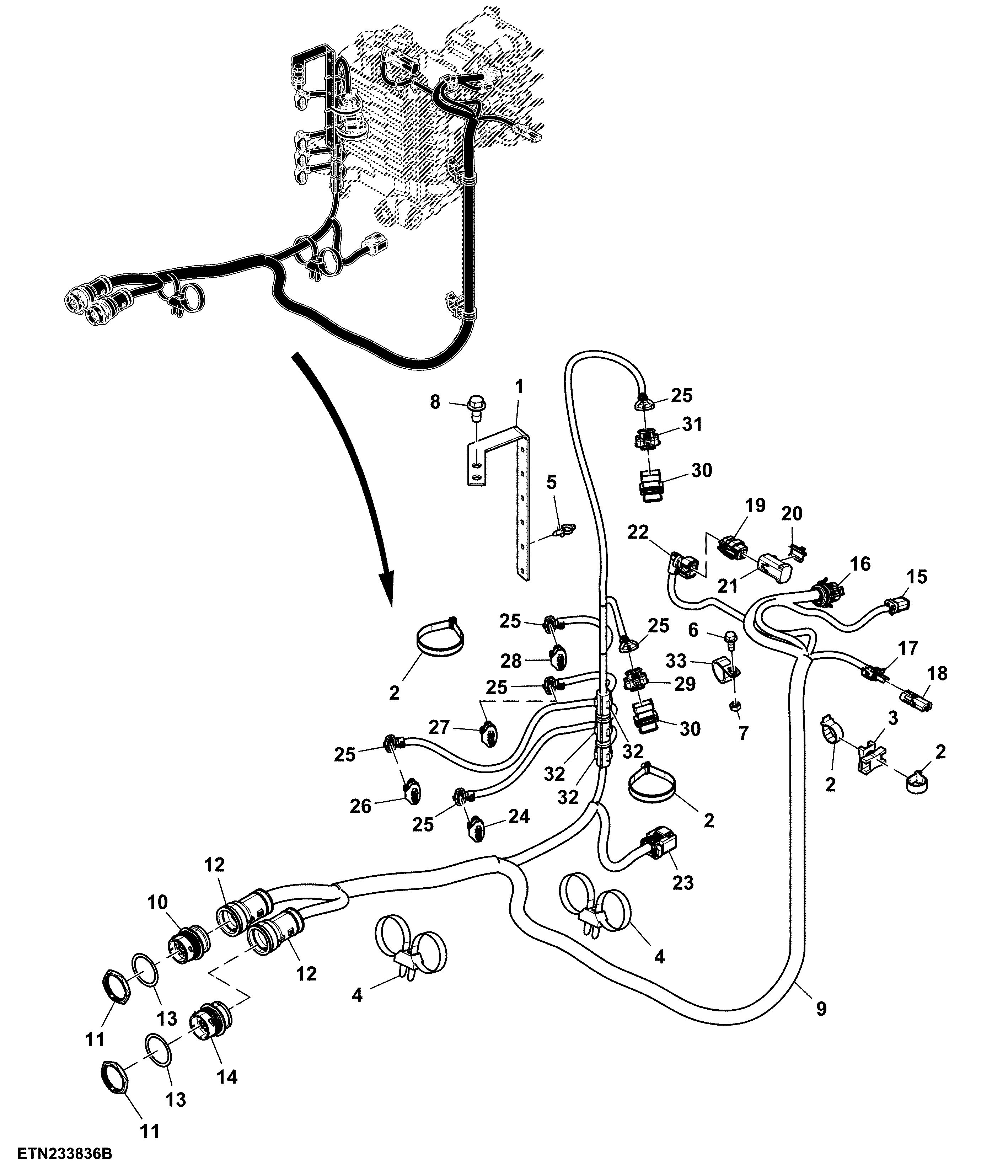

Wiring Harness, SCV Extension, W/O Hitch (For Scraper)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R552932	1	Bracket	-
2	H224073	8	Tie Band	-
3	AN209168	2	Swivel	-
4	57M12741	2	Elec. Connector Accessory	-
5	RE258807	6	Tie Band	-
6	19M7866	1	Screw	M8 X 20
7	14M7273	1	Nut	M8
8	19M7788	2	Screw	M12 X 25
9	TA20854	1	Wiring Harness	-
10	57M9511	1	Elec. Connector Housing	Rear Implement To Main Chassis Interconnect, XX321-2
11	57M8035	2	Nut	-
12	57M10485	2	Elec. Connector Accessory	-
13	57M9061	2	Elec.Connect Locking Device	-
14	57M11837	1	Elec. Connector Housing	Rear Implement To Main Chassis Interconnect, XX320-2
15	57M8635	1	Elec. Connector Housing	Implement can, XA917-2
15	57M8016	1	Elec.Connect Locking Device	-
16	57M14213	1	Elec. Connector Housing	Implement Connector, XA917-1
17	RE12363	1	Electrical Connector Assy	Implement Switch, XS549
18	R78053	1	Electrical Connector Assy	-
19	57M9786	1	Elec. Connector Housing	Rear Camera, XA991
20	57M9940	1	Elec. Connector Accessory	-
21	57M11336	1	Elec. Connector Accessory	-
22	57M14988	1	Elec. Connector Accessory	-
23	57M10299	1	Elec. Connector Housing	Trailer Lights Interconnect, XX705-1
24	57M9498	1	Elec. Connector Housing	SCV 1, XA701
25	57M11897	6	Elec. Connector Accessory	-
26	57M9498	1	Elec. Connector Housing	SCV 2, XA702
27	57M9498	1	Elec. Connector Housing	SCV 3, XA703
28	57M9498	1	Elec. Connector Housing	SCV 4, XA704
29	57M9498	1	Elec. Connector Housing	SCV 5, XA705
30	57M11354	2	Elec. Connector Housing	-
30	57M9500	2	Elec. Connector Accessory	-
31	57M9498	1	Elec. Connector Housing	SCV 6, XA706
32	57M10638	5	Elec. Connector Accessory	-
33	57M12125	1	Clamp	-

Wiring Harness, SCV Extension, W/O Hitch (For Scraper)
