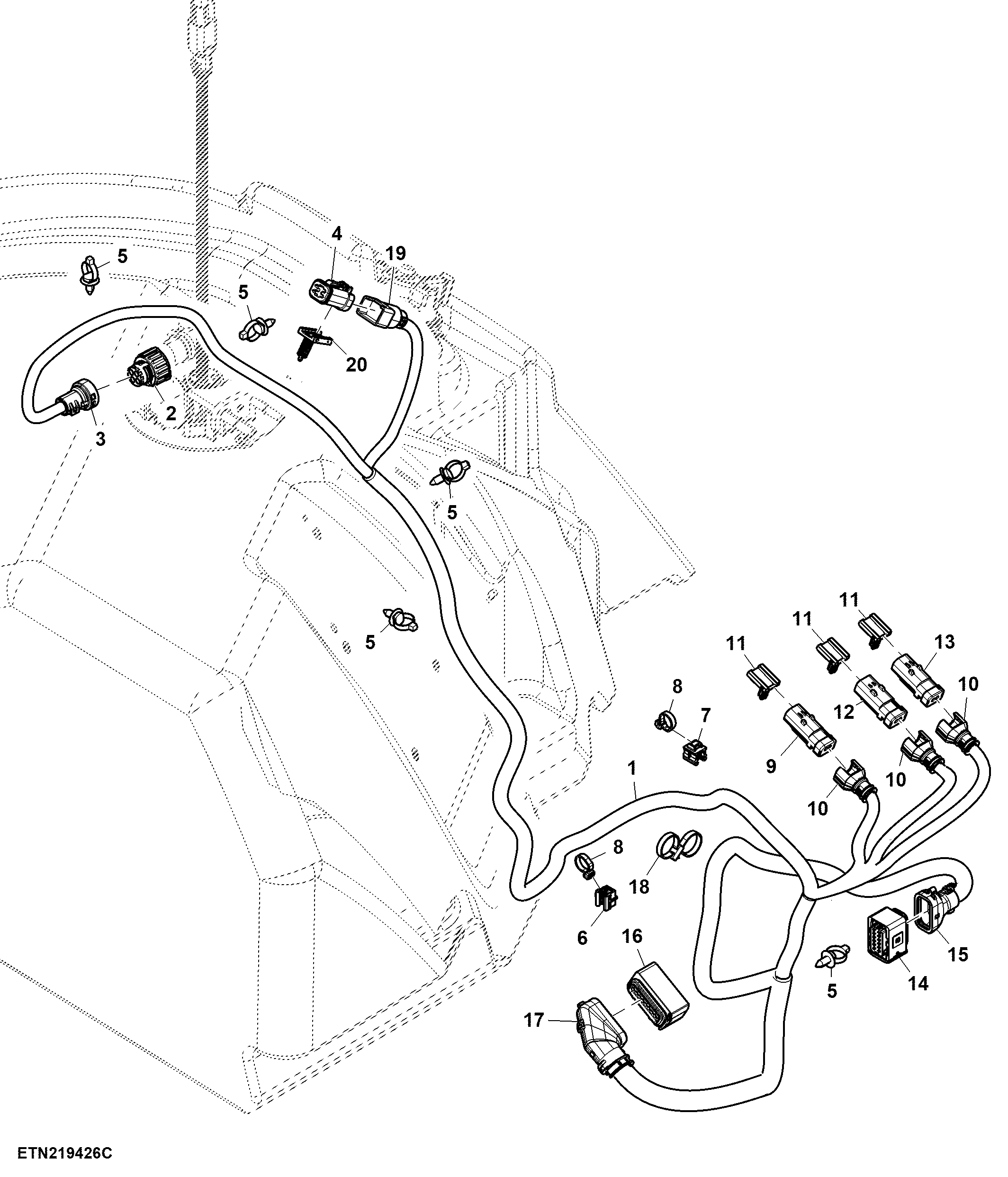

Wiring harness, DEF Tank, 13.6 L Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA21529	1	Chassis Wiring Harness	-
2	57M13137	1	Elec. Connector Housing	DEF Tank Coolant Control, XY5019
3	57M11120	1	Elec. Connector Accessory	-
4	57M8635	1	Elec. Connector Housing	DEF Quality Sensor, XB5506
4	57M8016	1	Elec.Connect Locking Device	-
5	RE258807	6	Tie Band	-
6	AH225365	1	Clip	-
7	AH225363	1	Clip	-
8	R44302	2	Tie Band	-
9	57M9778	1	Elec. Connector Housing	DEF Heater Return, XE5603
10	57M15493	3	Elec. Connector Accessory	-
11	57M9940	3	Elec. Connector Accessory	-
12	57M9776	1	Elec. Connector Housing	DEF Heater Suction, XE5602
13	57M9777	1	Elec. Connector Housing	DEF Heater Pressure, XE5601
14	57M10958	1	Elec. Connector Housing	SCR Supply Module, XB5501
15	57M11002	1	Elec. Connector Accessory	-
16	57M11854	1	Elec. Connector Housing	Main Chasis, XX210-2
17	57M11864	1	Elec. Connector Accessory	-
18	57M10421	1	Elec. Connector Accessory	-
19	57M13930	1	Elec. Connector Accessory	-
20	57M9939	1	Elec. Connector Accessory	-

Wiring harness, DEF Tank, 13.6 L Engine

Нет текстового описания
