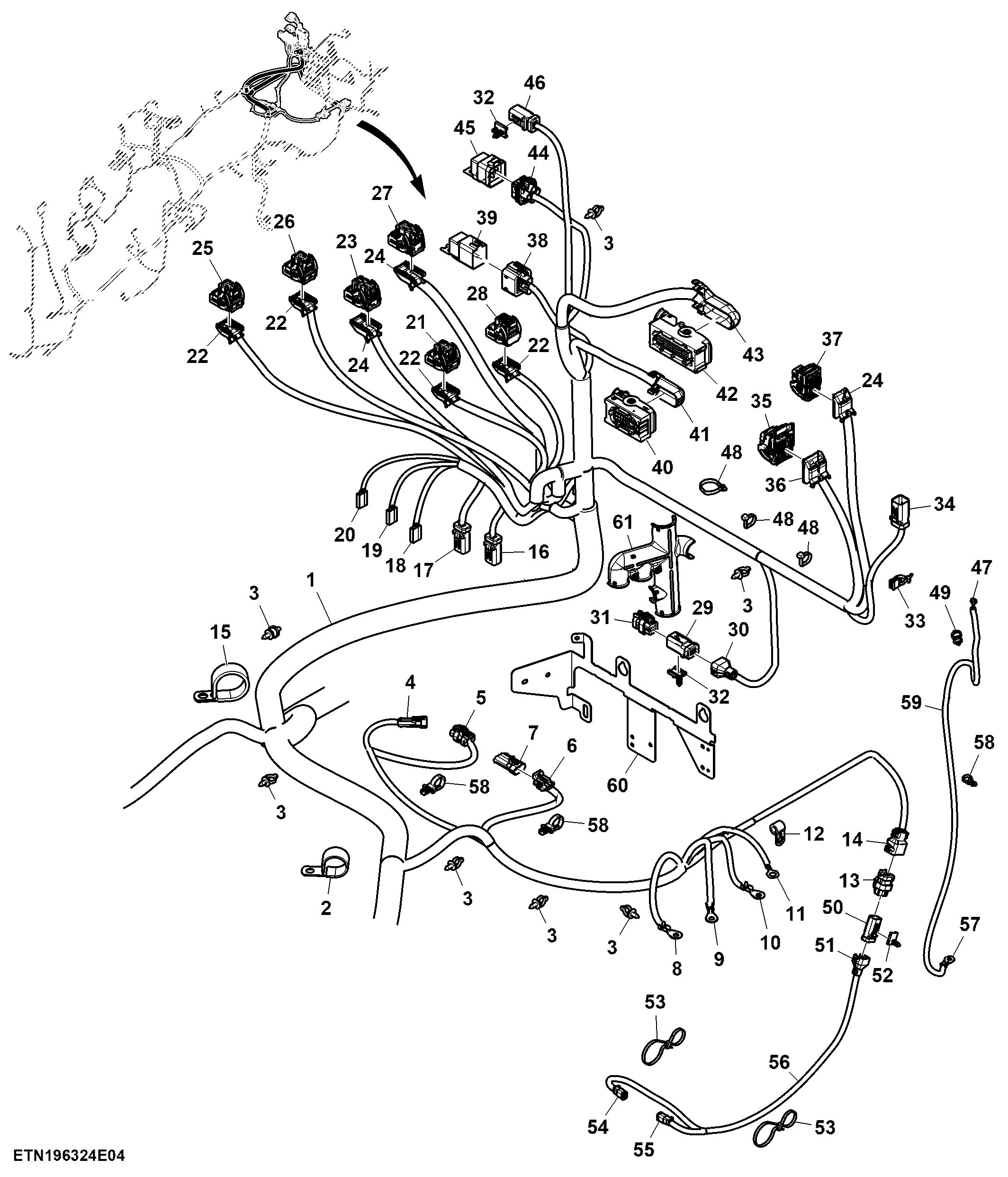

Wiring Harness, Chassis, 13.6 L, FT4 / Stage 5 Engine (4/4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA20856	1	Wiring Harness	-
2	57M13313	1	Clamp	-
3	RE258807	7	Tie Band	-
4	57M7256	1	Elec. Connector Housing	Switch Steering Filter Restrict, XS632
4	57M9523	1	Elec.Connect Locking Device	-
5	57M9780	1	Elec. Connector Housing	Hydraulic Charge Pressure, XB206
6	57M7255	1	Elec. Connector Housing	Diagnostic Pressure, X289
6	57M7290	1	Elec. Connector Accessory	-
7	57M7257	1	Elec. Connector Housing	-
7	57M7290	1	Elec. Connector Accessory	-
8	57M11431	1	Elec. Connector Terminal	Single Point Ground, XGND14A
9	57M11431	1	Elec. Connector Terminal	Single Point Ground, XGND14B
10	57M11431	1	Elec. Connector Terminal	Single Point Ground, XGND16A
11	57M11431	1	Elec. Connector Terminal	Single Point Ground, XGND16B
12	57M12129	2	Clamp	-
13	57M9817	1	Elec. Connector Housing	Main To Steering Pump Interconnect, XX715-1
14	57M14979	1	Elec. Connector Accessory	-
15	57M12127	1	Clamp	-
16	57M9821	1	Elec. Connector Housing	Main To Rear Camera Interconnect, XX140-2
17	57M9821	1	Elec. Connector Housing	Main To Front Camera Interconnect, XX141-2
18	R77476	1	Electrical Connector Assy	Washer Pump Front 1 Output, XM01
19	R77476	1	Electrical Connector Assy	Washer Pump Front 2 Output, XM02
20	R77476	1	Electrical Connector Assy	Washer Pump Front 3 Output, XM03
21	57M10605	1	Elec. Connector Housing	Steer By Wire System Unit (XBBB) 1, XA986-1
22	57M10604	4	Elec. Connector Housing	-
23	57M10614	1	Elec. Connector Housing	Steer By Wire System Unit (XBBB) 2, XA986-2
24	57M10613	3	Elec. Connector Housing	-
25	57M10611	1	Elec. Connector Housing	Steer By Wire System Unit (XBBB) 3, XA986-3
26	57M10609	1	Elec. Connector Housing	Steer By Wire System Unit (XBBA) 1, XA985-1
27	57M10615	1	Elec. Connector Housing	Steer By Wire System Unit (XBBA) 2, XA985-2
28	57M10607	1	Elec. Connector Housing	Steer By Wire System Unit (XBBA) 3, XA985-3
29	57M9789	1	Elec. Connector Housing	Main To PTO Interconnect, XX303-1
30	57M14963	1	Elec. Connector Accessory	-
31	57M9786	1	Elec. Connector Housing	-
32	57M9940	2	Elec. Connector Accessory	-
33	57M10747	1	Elec. Connector Accessory	-
34	57M9789	1	Elec. Connector Housing	Main To Left Worklights Interconnect, XX131-1
34	57M9939	1	Elec. Connector Accessory	-
35	57M10329	1	Elec. Connector Housing	MECA - Cab Controller 3, XA107-3
36	57M10401	1	Elec. Connector Accessory	-
37	57M10615	1	Elec. Connector Housing	MECA - Cab Controller 1, XA107-1
38	57M8233	1	Electrical Connector Assy	Implement Power Relay, XKE100
39	AL156697	1	Relay	70 A, Implement Power, KE100
40	57M13340	1	Elec. Connector Housing	Main To Cab Interconnect 2, XX501-1
41	57M13343	1	Elec. Connector Accessory	-
42	57M8730	1	Elec. Connector Housing	Main To Cab Interconnect 1, XX500-1
42	57M11957	1	Elec. Connector Accessory	-
43	57M8738	1	Elec. Connector Accessory	-
44	57M7555	1	Elec. Connector Housing	ECU Power, XKE01
45	57M12655	1	Elec. Connector Accessory	-
46	57M9789	1	Elec. Connector Housing	Main To Right Worklights Interconnect, XX133-1
47	57M8872	1	Elec. Connector Terminal	Fuel Tank Static Ground, XGND3
48	R44302	10	Tie Band	-
49	57M11231	2	Clip Kit	-
50	57M9821	1	Elec. Connector Housing	Interconnect To Chassis, X715B
50	RWA11100	1	Repair Wire Assembly	Cavity 4
50	RWA10618	1	Repair Wire Assembly	Cavity 3
50	RWA11095	1	Repair Wire Assembly	Cavity 2
50	RWA11025	1	Repair Wire Assembly	Cavity 1
51	57M15919	1	Elec. Connector Accessory	-
52	57M9939	1	Elec. Connector Accessory	-
53	57M10421	2	Elec. Connector Accessory	-
54	57M10523	1	Elec. Connector Housing	C2 Right Steer, XY715-1
54	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
55	57M10523	1	Elec. Connector Housing	C1 Left Steer, XY715-2
55	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
56	RE584668	1	Chassis Wiring Harness	Steering Pump Jumper
57	57M8901	1	Elec. Connector Terminal	Chassis Ground 2, XGND14A
58	57M10233	4	Tie Band	-
59	RE576514	1	Chassis Wiring Harness	Fuel Tank Neck Ground
60	-	1	Part 71	ORDER TA20856
61	-	1	Part 72	ORDER TA20856

Wiring Harness, Chassis, 13.6 L, FT4 / Stage 5 Engine (4/4)
