Seat Assembly, Ultimate, Passive Seat

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8327	4	Screw	M8 X 25
2	57M14887	1	Elec. Connector Housing	Heat/ Vent Select Switch, XS202
3	57M14885	1	Elec. Connector Housing	LH Armrest/ Seat Harness Inline, XX430-1
4	R569386	4	Screw	-
5	57M14490	1	Elec. Connector Housing	-
6	57M9555	1	Clip	-
7	TA19498	1	Seat Assembly	Components On Separate Page, INCLUDES R569386
8	TA19562	1	Seat Suspension	-
9	RE595215	1	Armrest	LH
10	TA19188	1	Wiring Harness	Ultimate LH Armrest
11	M115279	1	Plug	-
12	57M7718	1	Electrical Connector Assy	-
12	57M7713	1	Electrical Connector Assy	Massage Intensity Switch, XS196
13	57M7713	1	Electrical Connector Assy	Suspension Firm Adjuster Switch, XS194
13	57M7718	1	Electrical Connector Assy	-
14	57M7713	1	Electrical Connector Assy	Massage Select Switch, XS197
14	57M7718	1	Electrical Connector Assy	-
15	RE189796	1	Toggle/Rocker Switch	Seat Firmness
16	57M14886	1	Elec. Connector Housing	Heat/ Vent Intensity Switch, XS195
16	CB01489380	2	Elec. Connector Accessory	-
17	57M7713	1	Electrical Connector Assy	Suspension Height Adjuster Switch, XS201
17	57M7718	1	Electrical Connector Assy	-
18	57M7713	1	Electrical Connector Assy	Cushion Length Adjust Switch, XS200
18	57M7718	1	Electrical Connector Assy	-
19	57M7713	1	Electrical Connector Assy	Back Bolster Switch, XS198
19	57M7718	1	Electrical Connector Assy	-
20	14M7297	6	Nut	M5
21	37M7392	6	Screw	M5 X 16, ORDER 37M7468
21	37M7468	6	Screw	M5 X 20
22	22M7095	1	Set Screw	M5 X 6
23	RE594010	1	Toggle/Rocker Switch	Cushion Length Adjustment
24	RE593853	1	Toggle/Rocker Switch	Seat Back Adjustment Control
25	TR119130	1	Toggle/Rocker Switch	Massage Mode Select
26	TA20817	1	Armrest Kit	LH Armrest Lower Tub
27	57M10362	1	Clamp	-
28	TA18673	1	Armrest Kit	LH Armrest Switch Bezel
29	RE591772	1	Toggle/Rocker Switch	HVS Level Select
30	RE591771	1	Toggle/Rocker Switch	HVS Mode Select
31	RE590663	1	Armrest Kit	LH Armrest Lid
32	37M7163	6	Screw	-
33	37M7237	7	Screw	-
34	RE590643	1	Toggle/Rocker Switch	Massage Intensity Select
35	RE228095	1	Toggle/Rocker Switch	Seat Height
36	57M9229	2	Clip	-

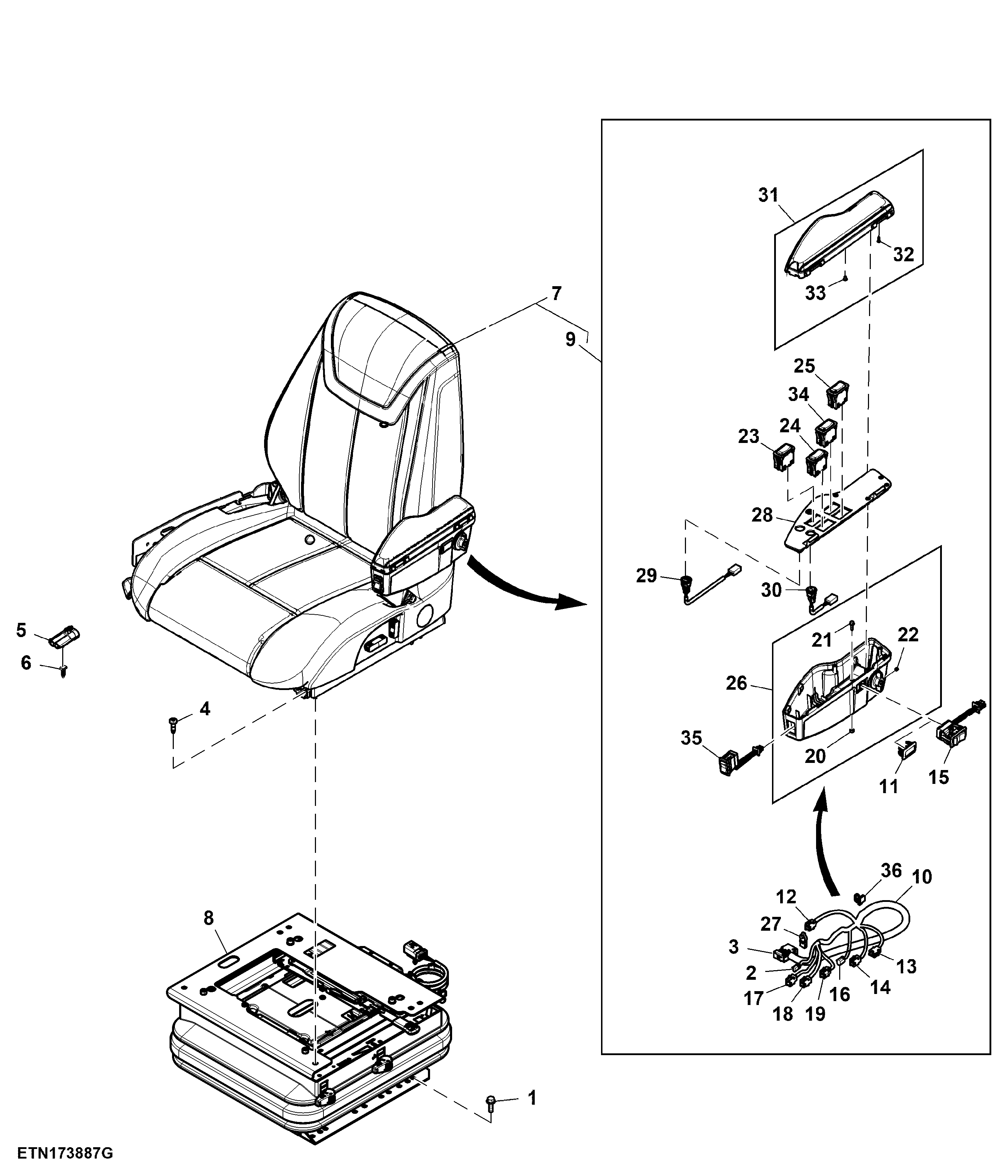

Seat Assembly, Ultimate, Passive Seat
