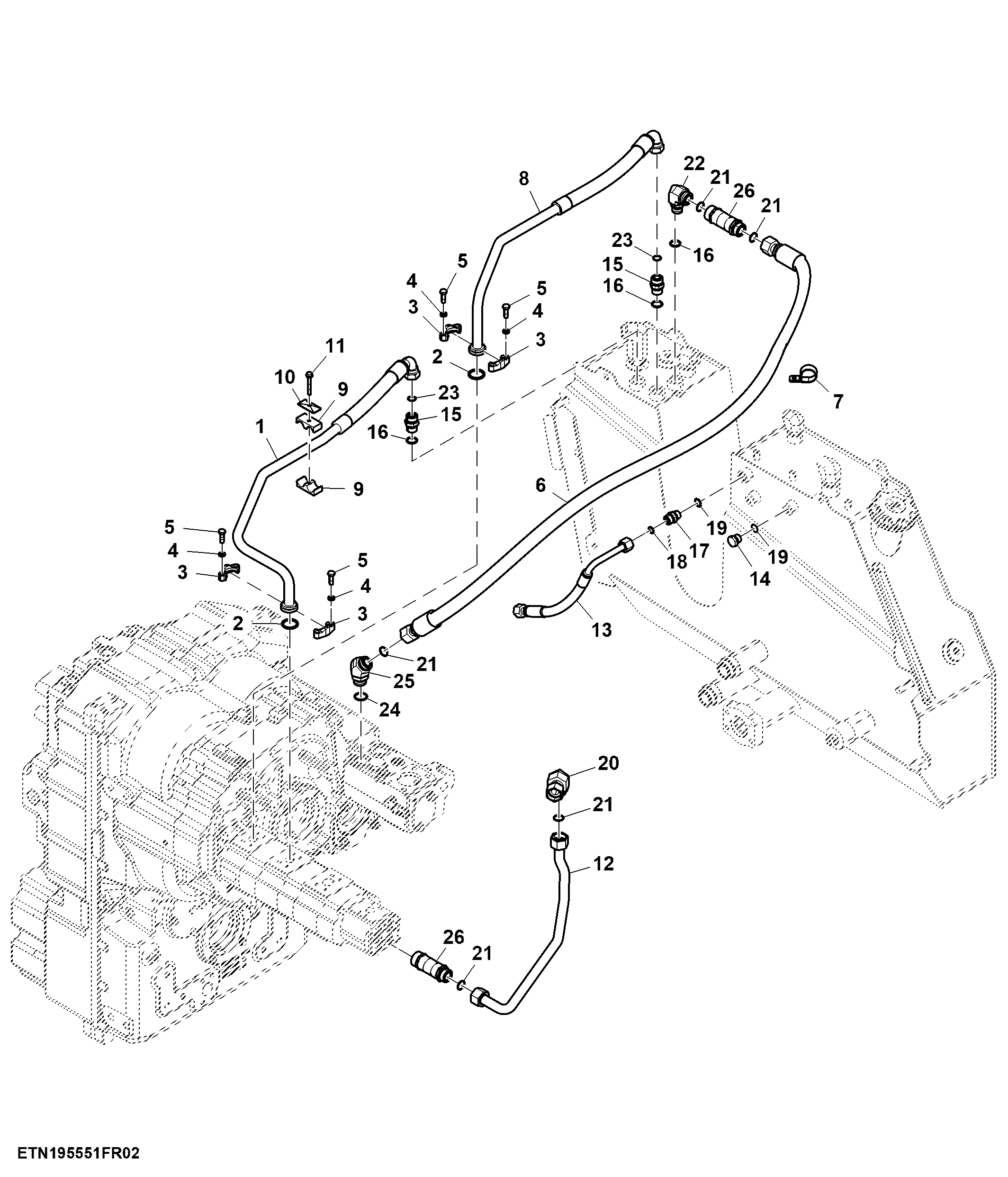

Oil Line, Standard Flow Pump, W/O PTO (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE571806	1	Oil Line	Axle Scavenge To Reservoir, INCLUDES T78313
2	T78313	2	O-Ring	-
3	H61354	4	Flange Fitting	-
4	24M7106	8	Washer	10 X 18 X 2.500 mm
5	19M7662	8	Cap Screw	M10 X 30
6	TA22269	1	Hydraulic Hose	Cooler Bypass Return To Reservoir
7	R557994	1	Clamp	-
8	RE571808	1	Oil Line	Transmission Scavenge To Reservoir, INCLUDES T78313
9	H115379	2	Clamp	-
10	H112567	1	Plate	-
11	19M7801	1	Screw	M8 X 60
12	TA20912	1	Oil Line	Transmission Cooler To Cooler Bypass
13	TA17716	1	Hydraulic Hose	Pump Case Drain To Reservoir
14	64M1007	1	Drain Plug	-
15	38H5005	2	Adapter Fitting	INCLUDES 51M7047
16	51M7047	3	O-Ring	23.600 X 2.900 mm
17	38H5004	1	Adapter Fitting	INCLUDES 51M7045
18	T77932	1	O-Ring	-
19	51M7045	2	O-Ring	19.300 X 2.200 mm
20	38H5207	1	Elbow Fitting	-
21	T76938	5	O-Ring	-
22	38H5028	1	Elbow Fitting	-
23	T77858	2	O-Ring	-
24	51M7048	1	O-Ring	29.600 X 2.900 mm
25	38H5206	1	Adapter Fitting	-
26	TA20833	2	Check Valve	INCLUDES T76938

Oil Line, Standard Flow Pump, W/O PTO (2/2)
