Открытый узел

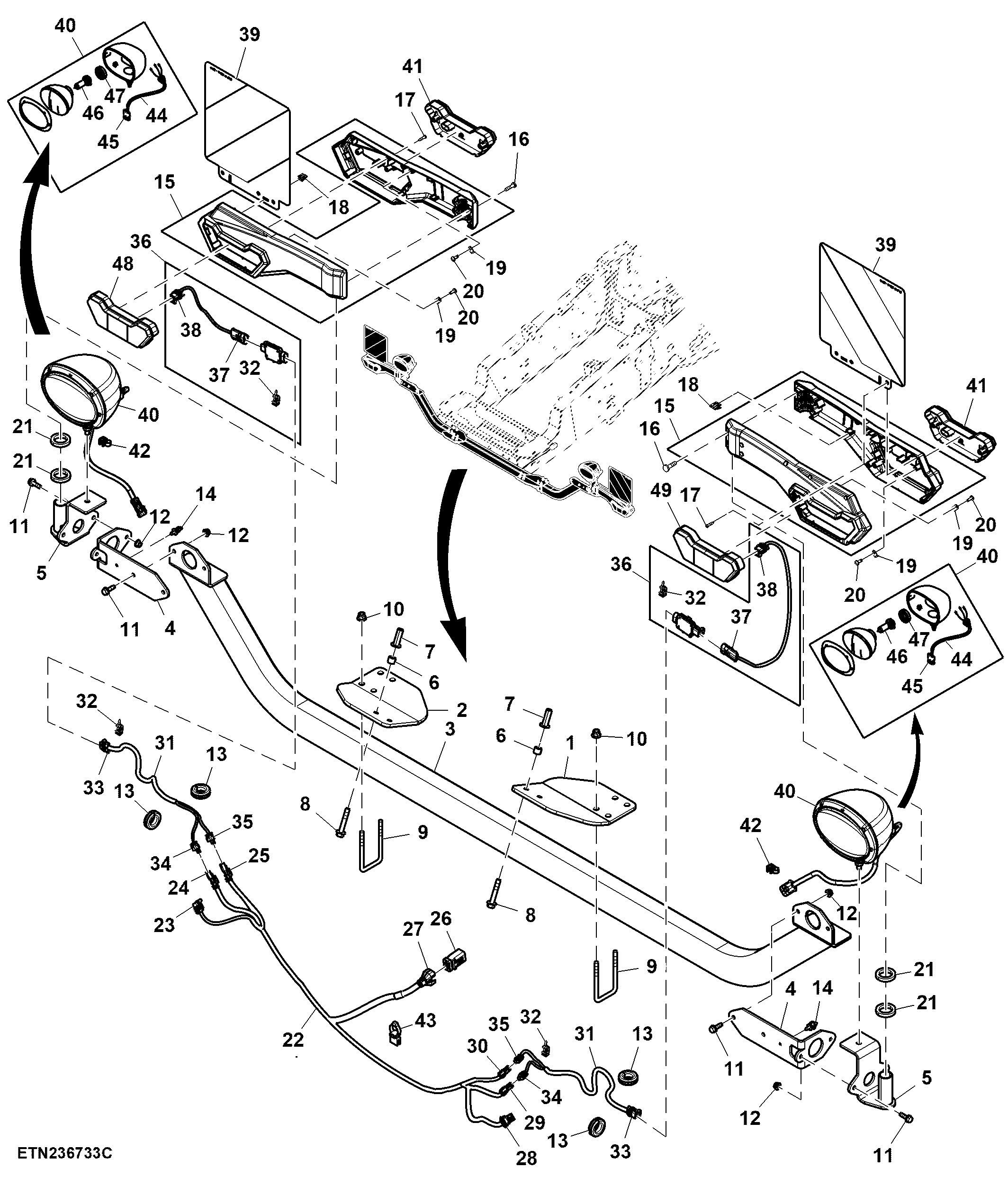

Light Bar and Short Extremity Arms, RH Driving Countries (1/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R542128	1	Bracket	LH
2	R542127	1	Bracket	RH
3	TA17884	1	Support	-
4	TR112201	2	Bracket	-
5	TA18181	2	Support	-
6	28H3394	4	Bushing	0.493" X 0.675" X 1/2"
7	T150768	4	Nut	-
8	19M7807	4	Screw	M10 X 60
9	R573435	4	U-Bolt	SUB FOR N304439
10	14M7400	8	Lock Nut	M10
11	19M7867	8	Screw	M8 X 25
12	14M7298	8	Flange Nut	M8
13	T230452	4	Grommet	-
14	RE258807	2	Tie Band	-
15	RE590493	2	Arm	-
16	21M7686	10	Screw	M5 X 20
17	37M7372	10	Screw	-
18	R566417	8	Clip	-
19	R569996	12	Bracket	-
20	R263172	12	Screw	-
21	R180671	6	Washer	-
22	TA10666	1	Wiring Harness	Front Lights
23	57M7255	1	Elec. Connector Housing	Right Roadlights, XE323/XXE325-1
23	57M7290	1	Elec. Connector Accessory	-
24	57M15416	1	Elec. Connector Housing	Front Turn Right, XX419-1
25	57M15082	1	Elec. Connector Housing	Ground Turn Right, XX409-1
26	57M9796	1	Elec. Connector Housing	Main Chassis Interconnect, XX007-2
27	57M9843	1	Elec. Connector Accessory	-
28	57M7255	1	Elec. Connector Housing	Left Roadlights, XE322/XXE324-1
28	57M7290	1	Elec. Connector Accessory	-
29	57M15416	1	Elec. Connector Housing	Front Turn Left, XX418-1
30	57M15082	1	Elec. Connector Housing	Ground Turn Left, XX408-1
31	TA11875	2	Wiring Harness	Turn Signal And Marker, INCLUDES 57M9229
32	57M9229	4	Clip	-
33	57M7255	2	Elec. Connector Housing	Turn/Clearance Light, XE176/XE177/XE178/XE179
33	57M7290	2	Elec. Connector Accessory	-
34	57M15079	2	Elec. Connector Housing	Interconnect 2, XX418/XX419/XX718/XX719
35	57M15075	2	Elec. Connector Housing	Interconnect 1, XX408/XX409/XX708/XX709
36	TA19217	2	Sensor Kit	LED Light Dongle, INCLUDES 57M9229
37	57M7257	2	Elec. Connector Housing	-
38	57M7255	2	Elec. Connector Housing	-
39	RE595094	2	Plate	-
40	RE229111	2	Headlight	-
41	RE595255	2	Lens	-
42	AH225366	2	Clip	-
43	57M10362	1	Clamp	-
44	RE229124	2	Headlamp Wiring Harness	-
45	57M7257	2	Elec. Connector Housing	-
46	57M7166	2	Bulb	12 V
47	L79050	2	Dust Shield	-
48	RE592942	1	Lamp	13.5 V, RH
49	RE592943	1	Lamp	13.5 V, LH

Light Bar and Short Extremity Arms, RH Driving Countries (1/2)

Нет текстового описания
