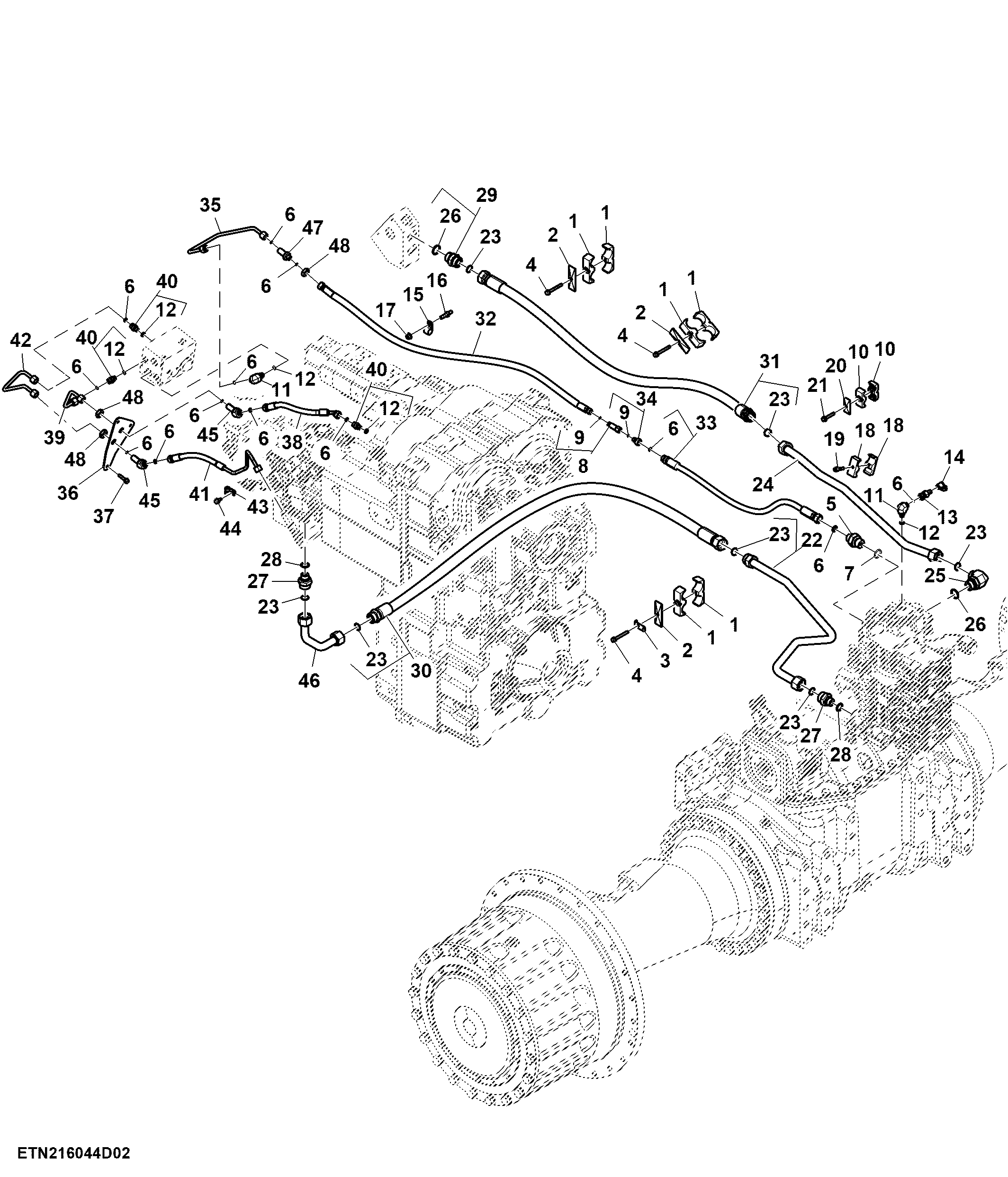

Hydraulic Hose, Rear SCV, PST, High Flow, Hitch W/ Quick Coupler, 5 SCV (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H150222	6	Hose Clamp	-
2	H114901	3	Plate	-
3	R326532	1	Bracket	-
4	19M7802	3	Screw	M8 X 65
5	38H5012	1	Adapter Fitting	-
6	T77613	13	O-Ring	-
7	51M7043	1	O-Ring	15.300 X 2.200 mm
8	RE264764	1	Check Valve	LS Orifice Check
9	T77814	2	O-Ring	-
10	H135155	6	Clamp	-
11	38H5016	2	Elbow Fitting	INCLUDES 51M7041
12	51M7041	5	O-Ring	11.300 X 2.200 mm
13	RE60701	1	Diagnostic Coupling	-
14	R77175	1	Cover	-
15	E53830	1	Clamp	-
16	T161803	1	Stud	-
17	14M7296	1	Flange Nut	M10
18	H120362	4	Clamp	-
19	H131116	1	Bolt	-
20	H112567	4	Plate	-
21	19M7799	4	Screw	M8 X 45
22	RE576001	1	Oil Line	SCV Supply, Rear Hitch
23	T76938	7	O-Ring	-
24	RE568079	1	Oil Line	SCV Return, Rear Hitch
25	38H5020	1	Elbow Fitting	-
26	51M7048	2	O-Ring	29.600 X 2.900 mm
27	38H5014	2	Adapter Fitting	-
28	51M7047	2	O-Ring	23.600 X 2.900 mm
29	38H5006	1	Adapter Fitting	-
30	TA18437	1	Hydraulic Hose	SCV Supply
31	RE567962	1	Hydraulic Hose	SCV Return
32	TA12077	1	Hydraulic Hose	SCV Load Sense
33	RE574917	1	Hydraulic Hose	SCV Load Sense
34	RE337612	1	Fitting	-
35	TA14260	1	Oil Line	Load Sense, SLS Port
36	TR111294	1	Bracket	-
37	19M8291	3	Screw	M8 X 35
38	TA18436	1	Hydraulic Hose	Load Sense, Priority Valve
39	TA14263	1	Oil Line	Load Sense, Priority Valve
40	38H5002	3	Adapter Fitting	-
41	TA18431	1	Hydraulic Hose	Standard Pump Load Sense
42	TA14264	1	Oil Line	Pump Load Sense
43	T269643	1	Clamp	-
44	19M7865	1	Screw	M8 X 16
45	38H5458	2	Elbow Fitting	-
46	TA18433	1	Oil Line	Standard SCV Supply
47	38H5100	1	Union Fitting	-
48	38H5091	3	Nut	11/16"

Hydraulic Hose, Rear SCV, PST, High Flow, Hitch W/ Quick Coupler, 5 SCV (2/2)
