External Rear View Power Mirror, W/ Manual Telescopic Arm, W/ Wide Angle Mirror, RH

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

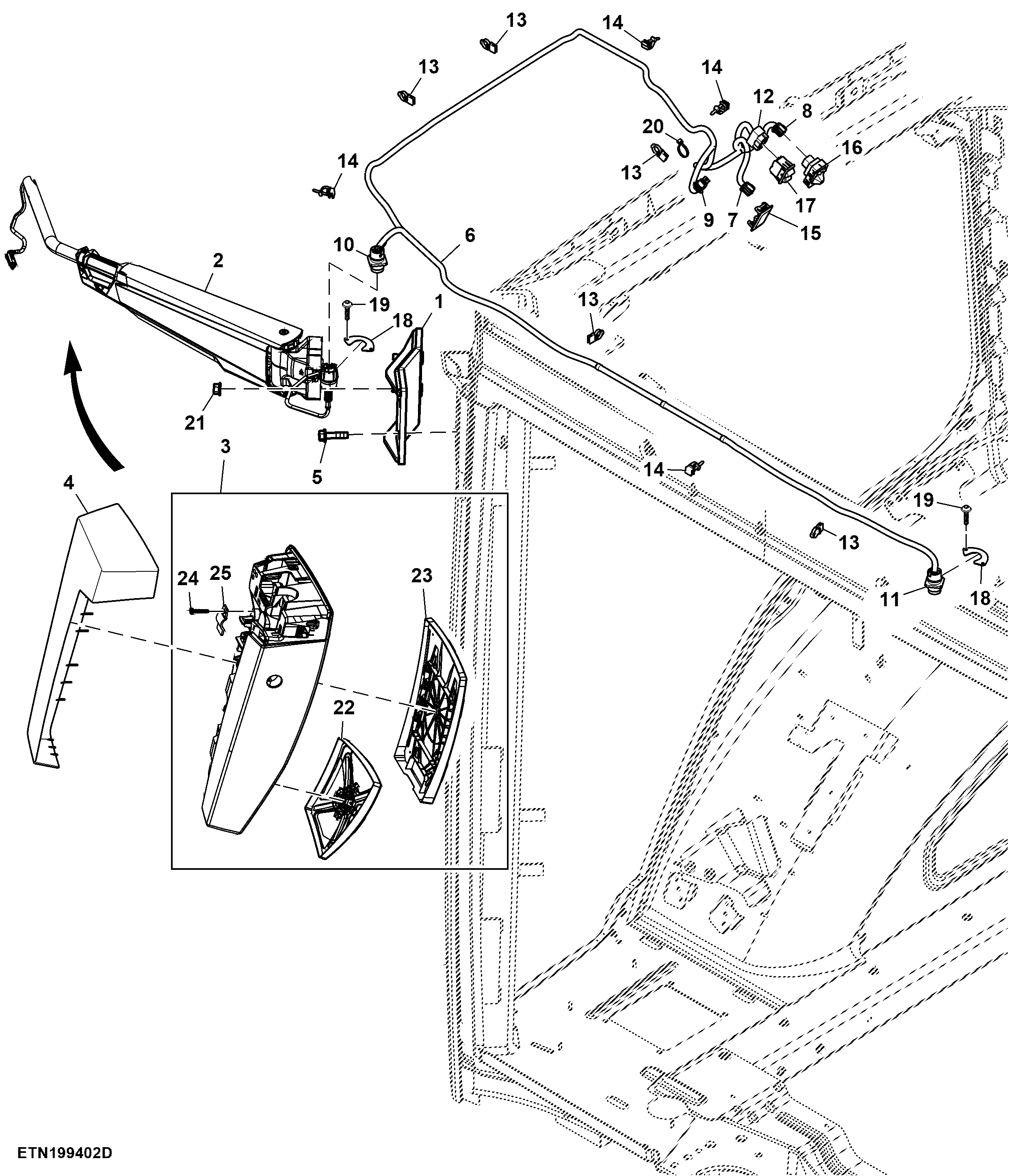

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA11326	1	Bracket	-
2	TA13129	1	Support	-
3	RE586099	1	Rear View Mirror	-
4	R566269	1	Cover	-
5	19M9327	2	Screw	M10 X 30
6	RE593605	1	Wiring Harness	Power Mirror
7	57M9078	1	Elec. Connector Housing	Heat and Extend Option, S308
7	RWA11110	1	Repair Wire Assembly	Cavity A2, A3, A4, B1, B2
8	57M9078	1	Elec. Connector Housing	Power Mirror Adjust Switch, S307
8	RWA11110	1	Repair Wire Assembly	Cavity A2, A3, A4, B1, B2, B3, B4
9	57M7254	1	Elec. Connector Housing	Inner Roof Harness To Dual Power Mirror Harness Interconnect, XX174–2
9	57M9712	1	Elec. Connector Accessory	-
9	RWA11083	1	Repair Wire Assembly	Cavity A, B
10	57M8205	1	Elec. Connector Housing	Right Power Mirror Interconnect, XX950
10	RWA11178	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
11	RWA11178	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
11	57M8205	1	Elec. Connector Housing	Left Power Mirror Interconnect, XX951
12	57M7896	1	Electrical Connector Assy	Heat Switch, S306
12	57M7429	3	Elec. Connector Terminal	Cavity U, Y, Z
13	57M10362	7	Clamp	-
14	57M9229	6	Clip	-
15	R565383	1	Plug	-
16	RE236245	1	Switch	Power Mirror
17	AL181124	1	Toggle/Rocker Switch	Heatable Mirror
18	R565338	2	Bracket	-
19	R564042	4	Screw	-
20	R44302	1	Tie Band	-
21	14M7733	2	Lock Nut	M10
22	RE590757	1	Rear View Mirror Glass	-
23	RE590754	1	Rear View Mirror Glass	-
24	R569132	1	Screw	-
25	R568892	1	Half Clamp	-

External Rear View Power Mirror, W/ Manual Telescopic Arm, W/ Wide Angle Mirror, RH

Нет текстового описания
