Открытый узел

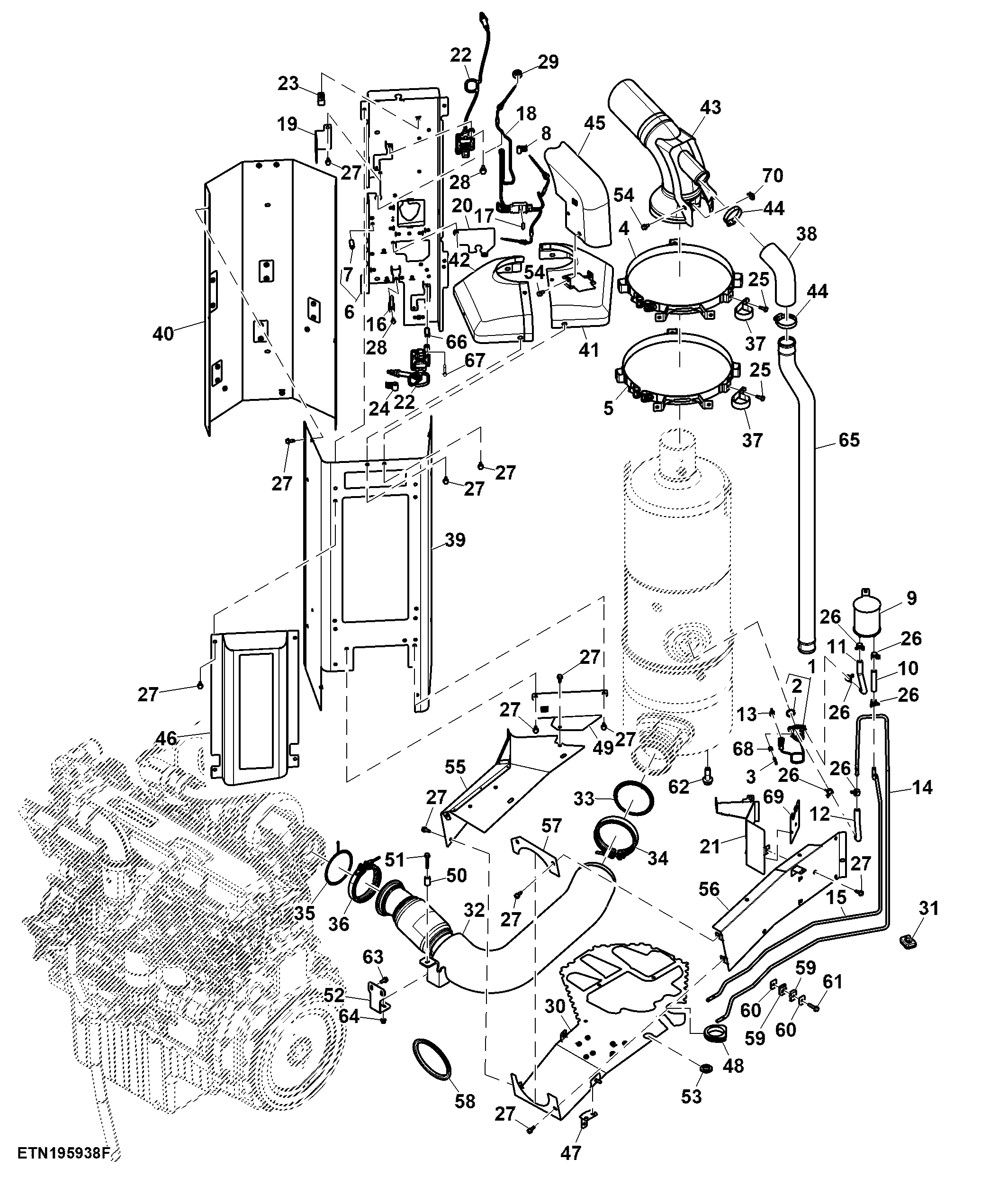

Exhaust Pipe 13.6 L, Dual Turbo, FT4 Engine

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DZ113622	1	DEF Dosing Injector	INCLUDES DZ112819
2	DZ112819	1	Gasket	-
3	DZ123958	3	Stud	-
4	TA21881	1	Clamp	-
5	TA21882	1	Clamp	-
6	TA17726	1	Heat Shield	Sensor Shield
7	28H3396	5	Bushing	0.364" X 0.540" X 1-3/8"
8	TR110461	7	Clamp	-
9	TA18287	1	Reservoir	-
10	R564906	1	Hose	DEF Doser Coolant Return
11	TR124998	1	Hose	Doser Coolant Return
12	TR124999	1	Hose	DEF Doser Coolant Supply
13	DZ113102	1	Clip	-
14	TR119103	1	Line	Coolant Supply
15	TR119106	1	Line	Coolant Return
16	R313267	1	Clamp	-
17	R313276	1	Insulator	-
18	DZ123016	1	Temperature Sensor	LGTH = 730 mm, Selective Catalytic Reduction
18	DZ123016	1	Temperature Sensor	LGTH = 300 mm, Diesel Oxidation Catalyst
18	DZ123016	1	Temperature Sensor	LGTH = 300 mm, Diesel Particulate Filter
19	TR105385	1	Shield	Turbo Out Pipe Upper Shield Cover
20	TR105384	1	Shield	Temperature Sensor Cover
21	TA20507	1	Heat Shield	Inlet NOx Sensor
22	DZ112080	2	Chemical Sensor	LGTH = 615 mm, NOx Sensor
23	TR110462	7	Clamp	-
24	TR110463	3	Clamp	-
25	19M7866	2	Screw	M8 X 20
26	R202160	6	Clamp	-
27	TR110464	96	Screw	-
28	19M7775	2	Screw	M6 X 16
29	R545774	3	Grommet	-
30	TA17731	1	Heat Shield	ATD Bottom Debris Shield
31	R540609	1	Grommet	-
32	TA23957	1	Exhaust Pipe	ORDER TA25994
32	TA25994	1	Exhaust Pipe	Turbo Outlet
33	R529640	1	Gasket	-
34	RE540348	1	Clamp	-
35	DZ102943	1	Gasket	-
36	TA23959	1	Clamp	-
37	R241967	2	Clamp	-
38	TR124256	1	Hose	Upper Aspiration Hose
39	TA23956	1	Heat Shield	Rear ATD Shield
40	TA19100	1	Heat Shield	Front ATD Shield
41	TA11306	1	Heat Shield	ATD Top RH Shield
42	TR109392	1	Heat Shield	ATD Top LH Shield
43	TA23351	1	Exhaust Pipe	-
44	AL170672	2	Clamp	-
45	TR123809	1	Heat Shield	ATD Top Ventilation Shield
46	TA10413	1	Heat Shield	Shield for Sensor Screen
47	TA12351	1	Bracket	-
48	TR105383	1	Grommet	-
49	TR108453	1	Heat Shield	DOC Sensor Cover
50	R117351	1	Spacer	-
51	19M7800	1	Screw	M8 X 50
52	TR106675	1	Bracket	-
53	R552352	1	Grommet	-
54	19M10489	4	Screw	M8 X 16
55	TA21883	1	Shield	Exhaust Pipe Front
56	TA17735	1	Shield	Exhaust Pipe Rear
57	TR106519	1	Shield	ATD Inlet Pipe Upper
58	R554432	1	Grommet	-
59	H128515	4	Clamp	-
60	H121163	4	Strap	-
61	19M7897	2	Screw	M8 X 35
62	TR110466	7	Screw	-
63	19M8331	2	Screw	M8 X 20
64	14M7573	1	Flange Nut	M8
65	TR117558	1	Line	-
66	28H3461	2	Spacer	0.364" X 0.540" X 1-1/2"
67	19M8069	2	Screw	M6 X 55
68	DZ123959	3	Nut	-
69	TR120380	1	Shield	-
70	M123593	2	Lock Nut	-

Exhaust Pipe 13.6 L, Dual Turbo, FT4 Engine
