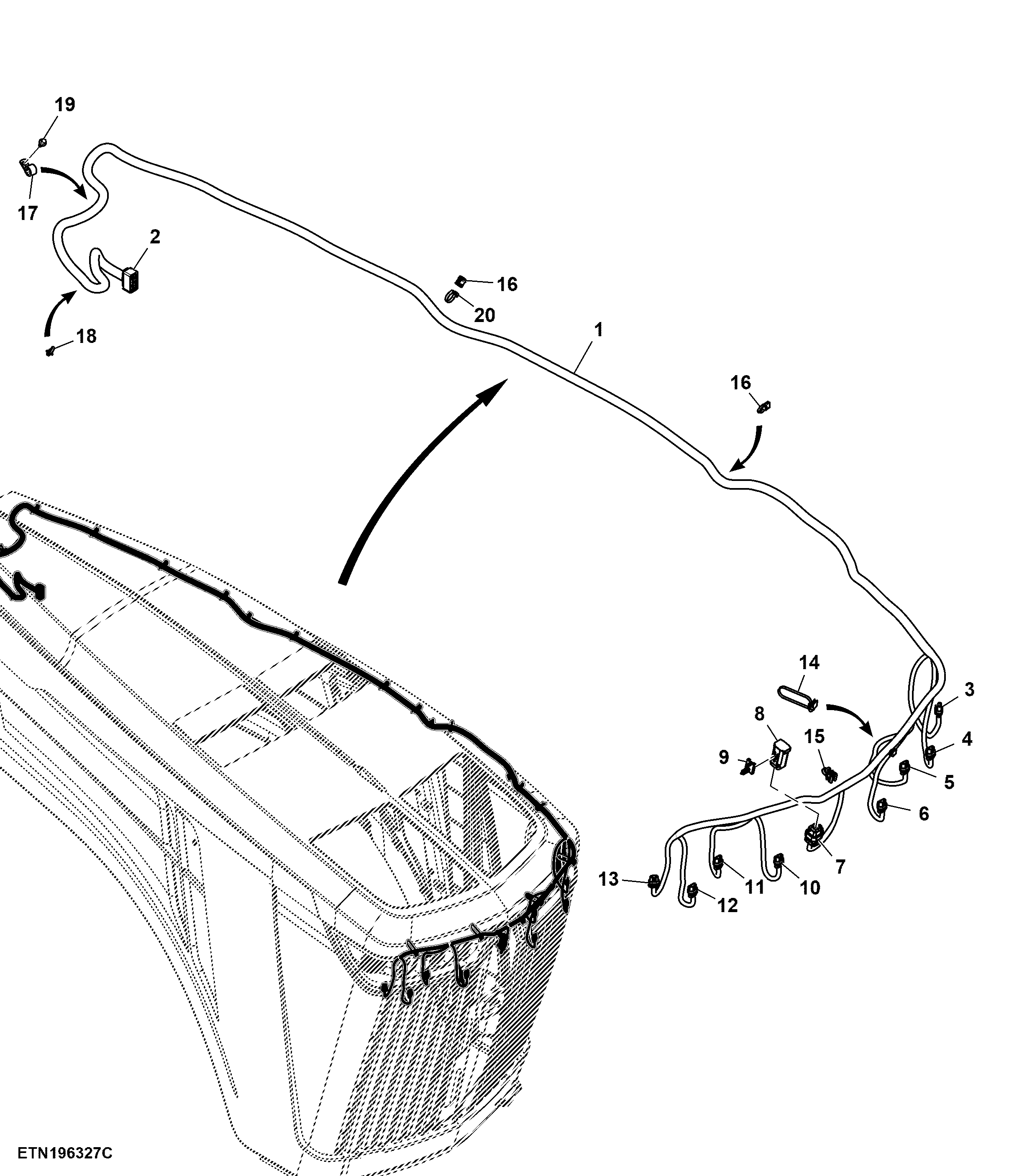

Wiring Harness, Hood, Halogen Lights

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA21500	1	Wiring Harness	-
2	57M12090	1	Elec. Connector Housing	Chassis to Hood Interconnect 1, XX080-2
3	57M8839	1	Elec. Connector Housing	Work Light Hood Outer Left, XE120-4
3	57M8129	1	Elec. Connector Terminal	-
4	57M8839	1	Elec. Connector Housing	Road Light Front High Left, XE120-2
4	57M8129	1	Elec. Connector Terminal	-
5	57M8839	1	Elec. Connector Housing	Road Light Front Low Left, XE120-3
5	57M8129	1	Elec. Connector Terminal	-
6	57M8839	1	Elec. Connector Housing	Work Light Hood Inner Left, XE120-1
6	57M8129	1	Elec. Connector Terminal	-
7	57M9786	1	Elec. Connector Housing	Front Camera, XA992
8	57M11336	1	Elec. Connector Accessory	-
9	57M9940	1	Elec. Connector Accessory	-
10	57M8129	1	Elec. Connector Terminal	-
10	57M8839	1	Elec. Connector Housing	Work Light Hood Inner Right, XE121-1
11	57M8839	1	Elec. Connector Housing	Road Light Front Low Right, XE121-3
11	57M8129	1	Elec. Connector Terminal	-
12	57M8839	1	Elec. Connector Housing	Road Light Front High Right, XE121-2
12	57M8129	1	Elec. Connector Terminal	-
13	57M8839	1	Elec. Connector Housing	Work Light Hood Outer Right, XE121-4
13	57M8129	1	Elec. Connector Terminal	-
14	57M9229	14	Clip	-
15	AH225363	2	Clip	-
16	57M10362	3	Clamp	-
17	57M13298	1	Clamp	-
18	57M10233	2	Tie Band	-
19	37M7092	1	Screw	M8 X 16
20	R44302	3	Tie Band	-

Wiring Harness, Hood, Halogen Lights

Нет текстового описания
